Vogt Valves 12111 2 Series 12111 2 in. 800# Gate Valve

Product Description

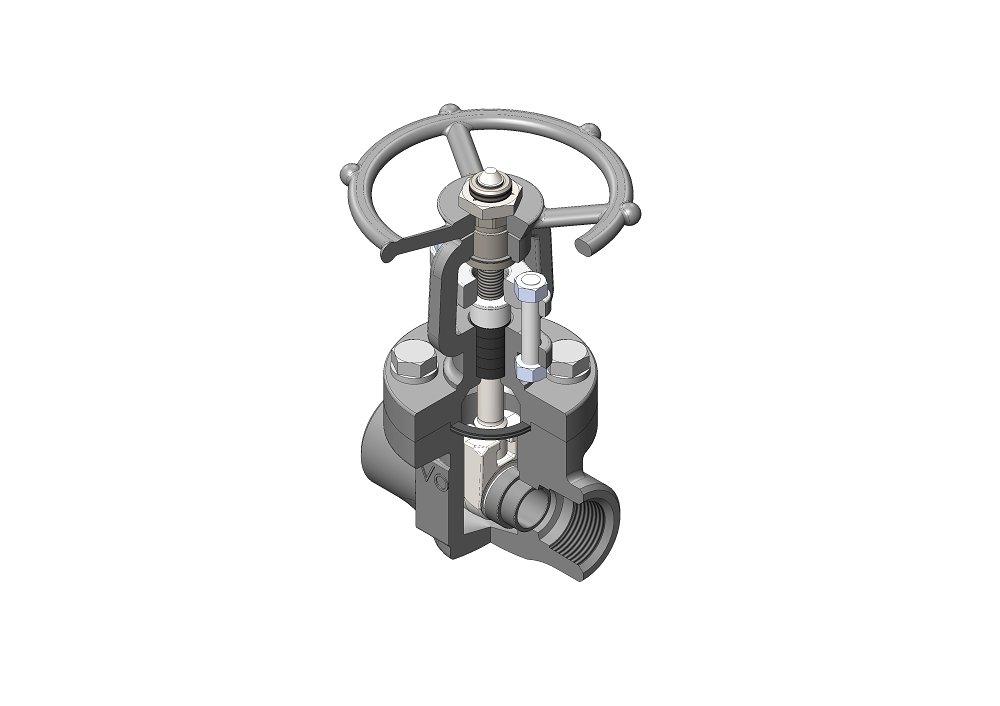

The VOGT VALVES 12111 2 is a 2 in. 800# SW A105 T8 gate valve with a reduced port, bolted bonnet, and forged steel construction. Compliant with API 602 and ASME B16.34 standards, it features socket weld end connections and a handwheel operator. The valve is suitable for applications requiring durable and reliable flow control.

• Spiral wound gasket
• Round bolted bonnet
• Bolted gland
• Hard faced seats
• Solid wedge

Product Highlights

Features include hardfaced seats, a solid wedge, and a spiral wound gasket. Constructed from forged steel.

Product Information

Standard Information

• Brand: VOGT VALVES
• Manufacturer Part Number: 12111 2
• Country of Origin: United States

Technical Specifications

• API: API 602
• ASME: ASME B16.34
• ASTM: ASTM A105
• Coating: Hardfaced
• Collection: Series 12111
• End Connection 1: Socket Weld
• End Connection 2: Socket Weld
• End Connections: Socket Weld
• Handle Length (in): 7
• Length: 5-1/4
• Material: Forged Steel
• Material Type: A105
• Maximum Temperature: 100
• Pressure - Maximum: 1975 psi
• Pressure Class: 800#
• Valve Body Material: Forged Steel
• Valve Body Style: Socket Weld
• Valve Bonnet Type: Bolted
• Valve Operator: Handwheel
• Valve Port Opening: Standard Port
• Valve Size: 2 in
• Valve Stem: Outside
• Valve Type: Gate Valve
• Weight: 21.8
• Brand: Edward VOGT Valve Co
• MPN: SW-12111-2"
• Country of Origin: United States
