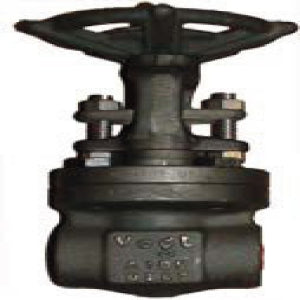

Vogt 12111SWT 1 Forged Steel Socket Weld X Threaded Gate Valve

Product Description

The Vogt 12111SWT 1 is a forged steel socket weld x threaded gate valve. This valve is designed for reliable shut-off in various piping systems. It features a conventional port that handles up to 1975 psi at one hundred degrees Fahrenheit. The round bolted bonnet and solid wedge ensure durability and performance.

• Forged steel construction for strength
• Conventional port design for efficient flow
• Suitable for high-pressure applications

Product Highlights

This gate valve is widely used in industrial applications, making it essential for HVAC, plumbing, and other mechanical services.

Product Information

Standard Information

• Brand: Vogt
• UPC: Not available

Technical Specifications

• Body Material: Forged Steel
• Nominal Size: 1 inch
• Pressure Rating: 1975 psi at 100°F
• Bonnet Type: Round bolted
• Gasket Type: Spiral wound
• Screw Type: Outside screw & yoke
• Gland Type: Bolted
• Wedge Type: Solid
• Seat Type: Hard faced
• Standards: ASME B16.34
