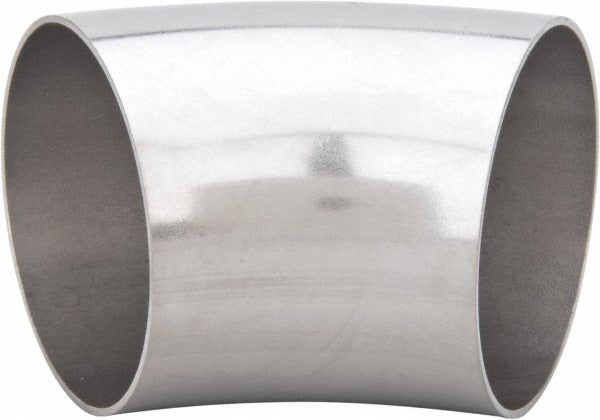

Vne V2WK3.0 Sanitary Ss 45 Degree Elbow 3in Butt Weld

Product Description

The VNE V2WK3.0 is a sanitary-grade stainless steel 45-degree elbow fitting designed for hygienic piping systems in food processing, dairy, beverage, and pharmaceutical applications. Manufactured from 304 stainless steel, this fitting uses butt weld end connections on both ends to create smooth, crevice-free joints that meet strict sanitary standards. At 3 inches in size, it handles mid-to-large diameter process lines where directional changes are needed without sacrificing flow integrity. Installation is performed by certified welders or qualified pipefitters working to sanitary piping specifications.

This elbow is suited for sanitary process piping installations where cleanliness, corrosion resistance, and compliance with industry standards are required. Typical applications include product transfer lines in food and beverage plants, clean-in-place systems, and pharmaceutical processing facilities. The butt weld connection style produces a flush interior weld profile that minimizes product entrapment and supports thorough CIP cleaning cycles. The 45-degree angle allows gradual directional changes in tight equipment layouts.

Key Features

• 304 stainless steel construction for corrosion resistance in sanitary process environments
• 45-degree elbow angle for gradual directional changes with reduced flow turbulence
• Butt weld x butt weld end connections for smooth, crevice-free joints
• 3-inch fitting size for mid-to-large diameter sanitary process lines
• Multi-standard certified: 3-A, ASME, FISA, ISPE, and WCMA compliant

Compatibility

Designed as an OEM-style sanitary fitting for 3-inch butt weld sanitary piping systems in food, beverage, dairy, and pharmaceutical process lines built to 3-A, ASME, FISA, ISPE, and WCMA standards.

Installation Notes

Installation requires orbital or manual TIG welding by a qualified pipefitter or welder trained in sanitary piping practices. The system line must be fully depressurized and drained before any fitting is removed or installed. Weld preparation and joint fit-up should follow ASME BPE or applicable sanitary piping codes to maintain the hygienic weld profile. Post-weld cleaning and passivation of the stainless steel is recommended per standard sanitary fabrication procedures.
