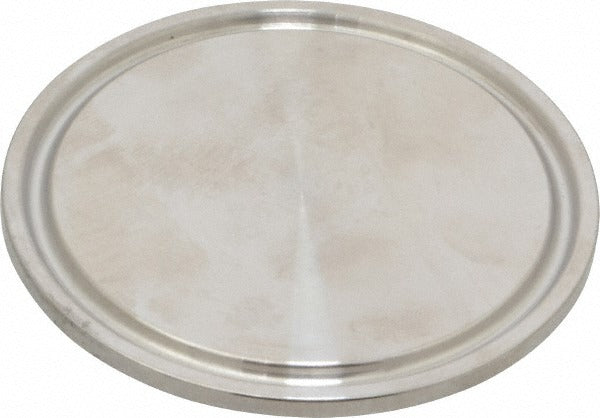

Vne EG16A-6L2.0 Sanitary End Cap 2in Clamp 316/316L

Product Description

The VNE EG16A-6L2.0 is a sanitary stainless steel pipe end cap designed to terminate 2-inch tube OD lines in hygienic process piping systems. Constructed from grade 316/316L stainless steel, this fitting provides corrosion resistance and cleanability suited to food, beverage, dairy, and pharmaceutical processing environments. The clamp-style end connection allows for quick assembly and disassembly without threading or welding. At 0.3 pounds, the cap is lightweight and easy to handle during installation or line modification. It meets multiple sanitary standards, making it appropriate for regulated process systems where cleanliness validation is required.

This end cap is used in sanitary process piping applications across food and beverage production, dairy processing, pharmaceutical manufacturing, and biotech facilities. It terminates a 2-inch tube OD line using a clamp-style connection, allowing the fitting to be removed and reinstalled during cleaning or system maintenance cycles without disturbing adjacent piping. Licensed pipefitters, process piping technicians, and sanitary system installers are the primary trades working with this component.

Key Features

• Grade 316/316L stainless steel construction for corrosion resistance in washdown and CIP environments
• 2-inch tube OD clamp connection for tool-free, gasket-sealed assembly
• Certified to 3A, ASME, FISA, ISPE, and WCMA sanitary standards
• Lightweight at 0.3 pounds for easy single-technician handling
• Sold individually, no minimum pack requirement beyond a single unit

Compatibility

Designed as an OEM-style sanitary fitting for 2-inch tube OD clamp-end process piping systems that require 3A, ASME, FISA, ISPE, or WCMA compliant components.

Installation Notes

Installation is performed by qualified pipefitters or sanitary process piping technicians familiar with clamp-end sanitary fittings. Depressurize and drain the process line fully before removing or installing any end cap. A compatible sanitary gasket seated in the clamp ferrule groove is required to achieve a proper hygienic seal. Verify all installed clamps meet applicable torque and assembly requirements per the system design specification and relevant ASME or 3A guidelines before returning the line to service.
