Vne EG16A-6L.75 Sanitary End Cap 3/4 in Clamp 316L Ss

Product Description

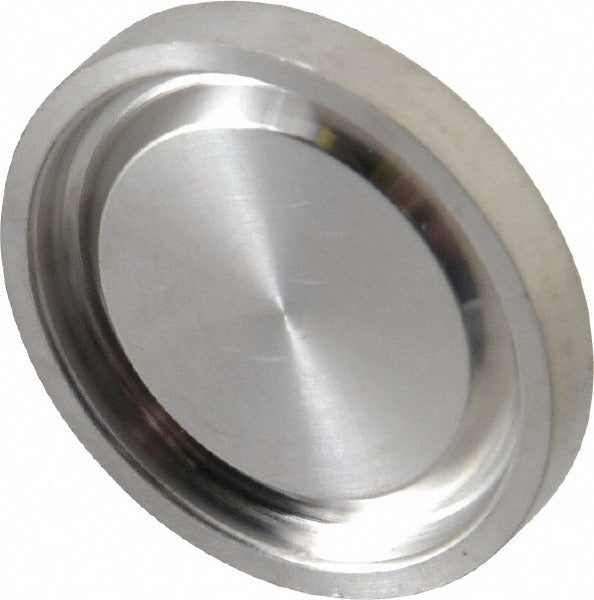

The VNE EG16A-6L.75 is a sanitary stainless steel pipe end cap designed to close off the terminal end of a 3/4-inch tube OD sanitary pipeline. Constructed from 316/316L stainless steel, it provides the corrosion resistance and surface finish required in hygienic process applications. The clamp-style connection allows for fast, tool-free removal during cleaning and inspection cycles. At 0.12 pounds, it is a lightweight fitting suited to both permanent and frequently broken-down piping assemblies. Installation and removal require only a standard tri-clamp and gasket, making it a practical choice for sanitary systems that demand routine disassembly.

This end cap is used in sanitary piping systems found in food and beverage processing, dairy operations, pharmaceutical manufacturing, and bioprocessing facilities. It is installed by pipefitters, sanitary process technicians, and maintenance personnel working on CIP-compatible lines. The clamp connection style is standard across sanitary tubing runs where quick-disconnect access to the line end is necessary for flushing, sampling, or decommissioning a branch.

Key Features

• 316/316L stainless steel construction for high corrosion resistance in sanitary process environments
• 3/4-inch tube OD end connection sized for standard sanitary tubing
• Clamp connection type enables fast, repeatable installation and removal without special tooling
• Meets 3A Certified, ASME, FISA, ISPE, and WCMA standards for hygienic fittings
• Lightweight at 0.12 pounds, minimizing load on terminal piping connections

Compatibility

Designed as an OEM-style sanitary fitting for 3/4-inch tube OD clamp-end sanitary piping systems meeting 3A, ASME, FISA, ISPE, and WCMA standards.

Installation Notes

Installation should be performed by a qualified pipefitter or sanitary process technician. Depressurize and drain the line completely before removing or installing any sanitary fitting. Pair with a compatible clamp gasket rated for the process fluid and temperature before securing the tri-clamp ferrule. Verify the completed assembly meets applicable sanitary standards and facility validation requirements before returning the line to service.
