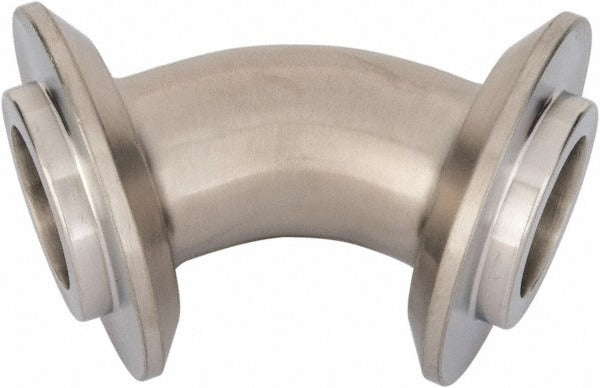

Vne E2HI1.0 Sanitary 45 Elbow 1 Inch E-line 304 Ss

Product Description

The VNE E2HI1.0 is a sanitary-grade 45-degree pipe elbow designed for use in hygienic fluid handling systems. Constructed from 304 stainless steel, this fitting delivers corrosion resistance and surface integrity required in food processing, dairy, beverage, and pharmaceutical piping applications. The E-Line male x male end connections allow for straightforward integration into existing E-Line sanitary piping assemblies. At 1 inch in size and weighing 0.6 pounds, it is a compact, durable fitting suited for tight routing changes within process lines. Licensed tradespeople and plant maintenance technicians performing sanitary piping work are the primary installers of this component.

This elbow is used in sanitary process piping systems where a 45-degree directional change is required while maintaining hygienic flow characteristics. Typical applications include dairy processing lines, beverage production facilities, food-grade liquid transfer systems, and pharmaceutical manufacturing environments. The 1-inch fitting size is common in smaller-diameter process runs where space constraints or flow requirements call for compact direction changes. The E-Line connection type provides a reliable male-to-male mechanical joint compatible with standard E-Line sanitary fittings and tubing.

Key Features

• 45-degree elbow geometry for angled directional changes in sanitary piping runs
• Grade 304 stainless steel construction for corrosion resistance in wet and chemical environments
• E-Line male x male end connections for compatibility with standard E-Line sanitary assemblies
• 1-inch fitting size suitable for smaller-diameter sanitary process lines
• Lightweight at 0.6 pounds for easy handling and installation in confined spaces
• Sanitary design supports hygienic flow and cleanability requirements in regulated industries

Compatibility

Designed as an OEM-style replacement or direct-fit component for 1-inch E-Line sanitary piping systems using male x male end connections in food, beverage, dairy, and pharmaceutical process environments.

Installation Notes

Installation should be performed by a qualified pipefitter or plumber familiar with sanitary process piping standards. Isolate and depressurize the process line and drain any residual fluid before removing or installing fittings. Ensure all mating surfaces and threads are clean and free of debris prior to assembly to maintain sanitary integrity. Follow applicable sanitary piping codes and facility-specific hygiene protocols during installation and post-installation cleaning.
