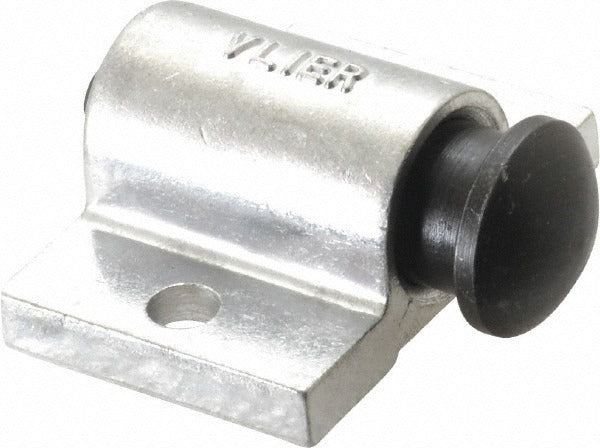

Vlier SS92 Round Spring Locating Stop 2in Base

Product Description

The VLIER SS92 is a round spring locating stop designed to position, hold, or cushion workpieces and components on fixtures, jigs, and production tooling. The unit delivers a spring-loaded plunger action through a 0.25 inch stroke, with an initial end force of 14.4 pounds, a mid-stroke force of 32 pounds, and a final end force of 45.4 pounds. The aluminum body with a steel stop head provides a durable, lightweight assembly suited for industrial and manufacturing environments. Machinists, tooling technicians, and fixture builders typically install and service this type of component.

The SS92 is intended for use in precision fixturing, assembly tooling, and workholding applications where consistent spring-loaded positioning is required. The round stop head measures 0.8125 inches in outside diameter, making it appropriate for applications that require a defined contact point. The 2 inch base width and 1.375 inch body length allow it to fit into standard fixture plate layouts. This stop is suited for both light production and repetitive assembly operations where repeatable part location is critical.

Key Features

• 0.25 inch stroke length with graduated spring force: 14.4 pounds initial, 32 pounds mid, 45.4 pounds final end force
• Stop head outside diameter of 0.8125 inches for defined contact area
• Aluminum body construction reduces weight while maintaining structural integrity
• Steel stop head provides wear resistance at the contact surface
• Mounting slots measure 0.266 inches long by 0.2656 inches wide for adjustable positioning on fixture plates
• Compact base thickness of 0.4375 inches keeps the assembly low-profile in tight fixture layouts

Compatibility

Designed as an OEM-style replacement or new-installation spring locating stop for standard industrial fixturing and workholding tooling applications where a round-head, slot-mounted spring stop is specified.

Installation Notes

Installation is typically performed by tooling technicians or machinists using standard machine screws through the mounting slots. Confirm fixture plate hole pattern matches the 1.5 inch center-to-center and 1.218 inch hole-to-edge distances before securing. De-energize and lock out any automated or powered fixture before servicing or replacing spring locating stops. Do not exceed the rated final end force in the application, as overloading the plunger assembly can reduce service life.
