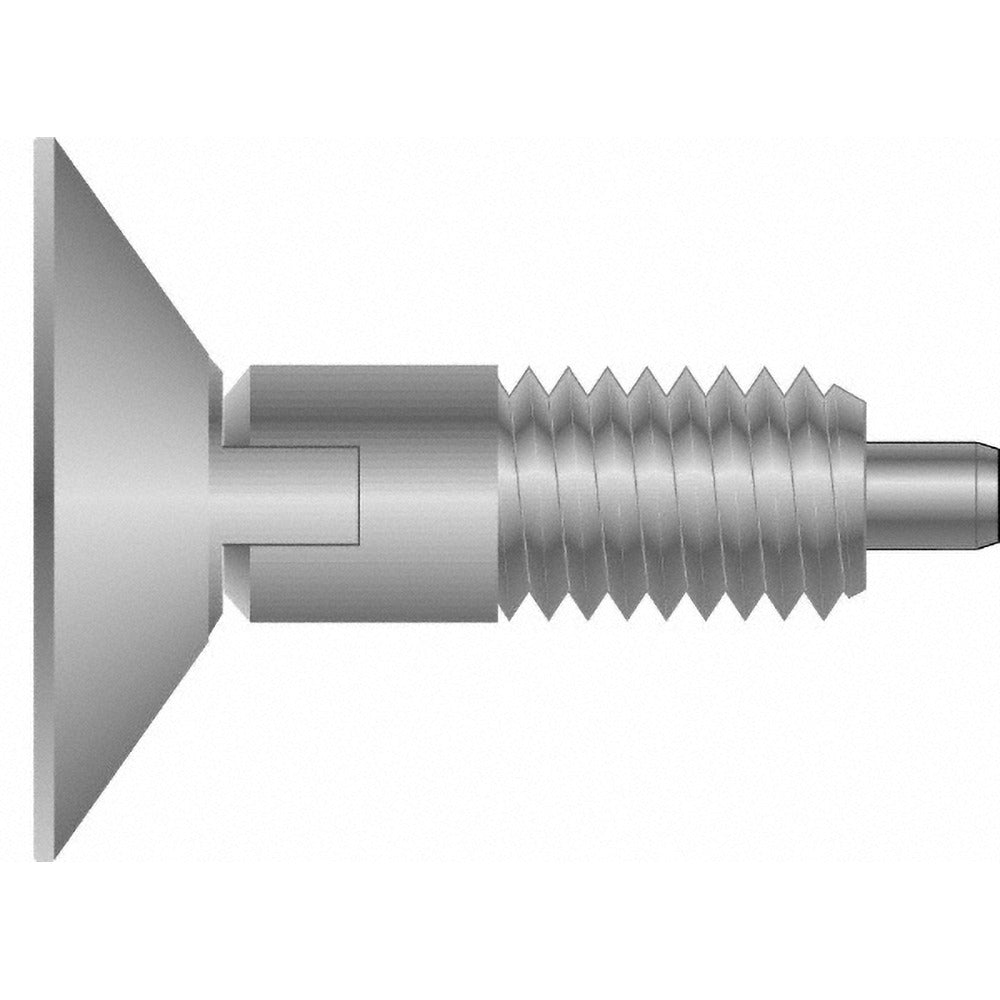

Vlier SLRM10P Locking Knob Handle Plunger M10x1.5

Product Description

The VLIER SLRM10P is a locking knob handle plunger with an M10x1.5 threaded body designed for precision positioning and holding applications in industrial and mechanical assemblies. The countersunk knob style provides a low-profile, secure grip while the integrated locking element holds the plunger firmly in the retracted position until manually released. Initial end force is 1 pound, building to a final end force of 8 pounds, making it suitable for light-duty indexing and locating tasks. The plunger body measures 19 millimeters in length with a thread length of 0.75 inches and a maximum plunger diameter of 0.19 inches.

The SLRM10P is used in jigs, fixtures, machine tools, and industrial equipment where a compact, threaded plunger with positive locking is required. The M10x1.5 thread fits standard metric tapped holes and the countersunk knob integrates cleanly into panel-mount or recessed applications. It is typically installed by maintenance technicians, toolmakers, and machine builders in both production and repair environments. The small package weight of 0.06 pounds makes it a practical choice for applications where added mass is a concern.

Key Features

• Locking plunger element holds plunger retracted until manually released
• Countersunk knob style for low-profile, flush-mount installations
• M10x1.5 thread for compatibility with standard metric tapped holes
• End force range from 1 pound initial to 8 pounds final for light-duty indexing
• Plunger projection of 0.22 inches with a total plunger length of 1.30 inches
• Compact 19 millimeter body length suitable for space-constrained assemblies

Compatibility

Designed as an OEM-style replacement or drop-in fit for M10x1.5 threaded locking plunger applications in jigs, fixtures, and industrial positioning equipment.

Installation Notes

Installation is performed by threading the SLRM10P into a prepared M10x1.5 tapped hole using the appropriate hex key on the 5 millimeter hex drive. Ensure the mating assembly is powered down or de-energized and free of load before installing or replacing the plunger. Do not overtighten the body into the threaded hole, as this can restrict plunger travel or damage the locking element. Follow applicable machinery safety standards and equipment manufacturer guidelines during installation.
