Vlier SFRM10P Locking L Handle Plunger M10x1.5

Product Description

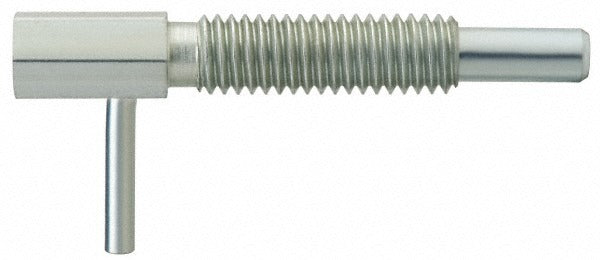

The VLIER SFRM10P is a stainless steel locking L-handle plunger designed for indexing, positioning, and locking applications in mechanical assemblies. It features an M10x1.5 thread with a 1.17-inch thread length and a 6mm plunger diameter. The locking element holds the plunger in the retracted position, allowing hands-free operation during setup or adjustment. Initial end force is 3.3 N, building to a final end force of 16.7 N. The body measures 51mm in length with 33mm under the head, and the plunger projects 14mm. Installed by machinists, mechanical assemblers, and maintenance technicians, this plunger is a precision hardware component suited for industrial equipment, fixtures, and tooling.

The SFRM10P is used in applications requiring repeatable positioning or secure locking of moving components. Common install scenarios include machine tool fixtures, assembly jigs, hinged guards, and adjustable tooling plates. The locking L-handle allows the operator to retract and hold the plunger without continuous manual pressure, making it well-suited for high-cycle or single-technician operations. The stainless steel construction supports use in wash-down environments or applications where corrosion resistance is a priority.

Key Features

• Locking element holds plunger retracted for hands-free operation
• M10x1.5 thread size with 1.17-inch thread length for standard metric mounting
• 6mm plunger diameter with 14mm plunger projection
• Initial end force of 3.3 N, final end force of 16.7 N for controlled engagement
• Stainless steel construction for corrosion resistance
• L-handle design with 19mm handle length and 10mm hex size for easy actuation and installation

Compatibility

Designed as a metric locking plunger for use in mechanical fixtures, jigs, and industrial equipment requiring M10x1.5 threaded indexing or positioning hardware.

Installation Notes

Installation is performed by machinists or mechanical maintenance technicians using standard metric wrenches or a 10mm hex tool. Ensure the mounting hole is threaded to M10x1.5 specification and that the mating surface allows the required 14mm plunger projection for full engagement. De-energize or lock out any powered equipment before servicing assemblies that incorporate this plunger. Do not exceed the rated end force range when selecting this component for a given application.
