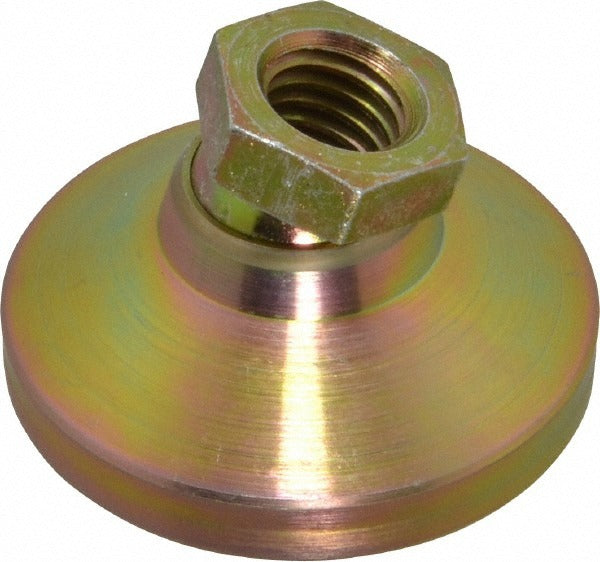

Vlier P306B Tapped Pivotal Leveling Mount 5000 Lb

Product Description

The VLIER P306B is a tapped pivotal leveling mount designed for industrial machinery, equipment bases, and fabricated frames that require precise floor-level adjustment under heavy static loads. The mount accepts a 1/2-13 threaded stud and supports up to 5,000 pounds of load capacity, making it suitable for substantial equipment installations. The steel stud and steel pad construction deliver the durability needed in shop floors, production lines, and mechanical rooms. Overall length is 1-1/8 inches, with a round base diameter of 1-7/8 inches and a base edge height of 1/4 inch. A 3/4-inch hex drive allows fast adjustment with standard hand tools.

This leveling mount is used in commercial and industrial settings where equipment must be leveled on uneven or finished concrete floors. It is well suited for machine tools, compressors, pumps, conveyor frames, and similar rigid-base equipment. The pivotal pad design allows the base to self-align to minor floor irregularities, reducing stress on the mounting stud during installation and long-term service. Licensed millwrights, maintenance mechanics, and industrial equipment installers are the typical trades working with this hardware.

Key Features

• 5,000 lb load capacity for heavy industrial equipment support
• Tapped pivotal design allows pad to self-align to uneven floor surfaces
• 1/2-13 threaded stud for compatibility with standard tapped base feet
• Steel stud and steel pad construction for durability in industrial environments
• 3/4-inch hex drive enables adjustment with common hand or power tools
• Compact 1-1/8-inch overall length suits tight mounting clearances

Compatibility

Designed as an OEM-style replacement or standard-fit leveling mount for industrial equipment bases and fabricated frames using 1/2-13 threaded leveling foot hardware.

Installation Notes

Installation is typically performed by millwrights or industrial maintenance mechanics. Before adjusting or replacing leveling mounts, de-energize and lock out all equipment per OSHA lockout/tagout procedures and ensure the load is safely supported. Use a 3/4-inch wrench or socket to adjust the stud height and confirm level with a precision machinist level before final tightening. Do not exceed the rated 5,000 lb load capacity for this mount.
