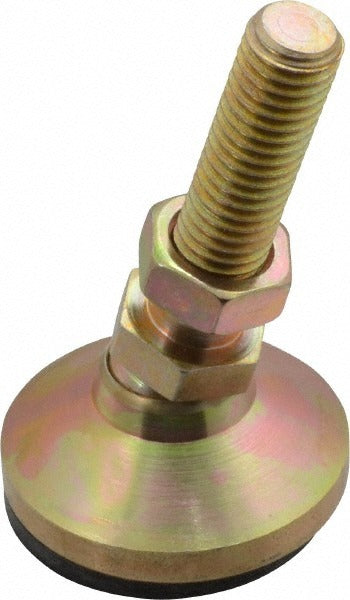

Vlier EP306S Studded Pivotal Leveling Mount 3750 Lb

Product Description

The VLIER EP306S is a studded pivotal leveling mount designed to support and stabilize heavy industrial equipment on uneven or imperfect surfaces. It features a 1/2-13 bolt thread steel stud, a 1-7/8 inch base diameter, and a rated load capacity of 3,750 pounds. The elastomer pad provides vibration dampening and surface grip, protecting both the equipment base and the floor beneath it. This mount is typically installed by millwrights, maintenance technicians, and mechanical contractors working on machine tool, conveyor, and production equipment alignment and leveling applications.

The EP306S is suited for industrial and commercial floor-mount applications where precise equipment leveling is required. Its pivoting pad design allows the mount to accommodate slight surface irregularities without sacrificing load stability. At 3-1/8 inches in length, it provides meaningful height adjustment clearance for shimming and alignment work under presses, pumps, compressors, and similar machinery. The steel stud construction handles the compressive and shear forces common in production floor environments.

Key Features

• 3,750 lb rated load capacity for heavy equipment support
• Pivoting elastomer pad accommodates surface irregularities and reduces vibration transmission
• 1/2-13 threaded steel stud for secure equipment attachment
• 1-7/8 inch base diameter provides a stable footprint
• 3-1/8 inch overall length allows for leveling clearance during installation
• Steel construction suitable for demanding industrial environments

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for industrial machinery requiring studded pivotal mounts with a 1/2-13 bolt thread pattern and 3,750 lb load rating.

Installation Notes

Installation is typically performed by millwrights or mechanical maintenance technicians. Power down and lock out all equipment before positioning or adjusting leveling mounts. Ensure the mounting surface can support the full rated load distributed across all mount points. Verify thread engagement depth meets the equipment manufacturer's minimum specification before loading.
