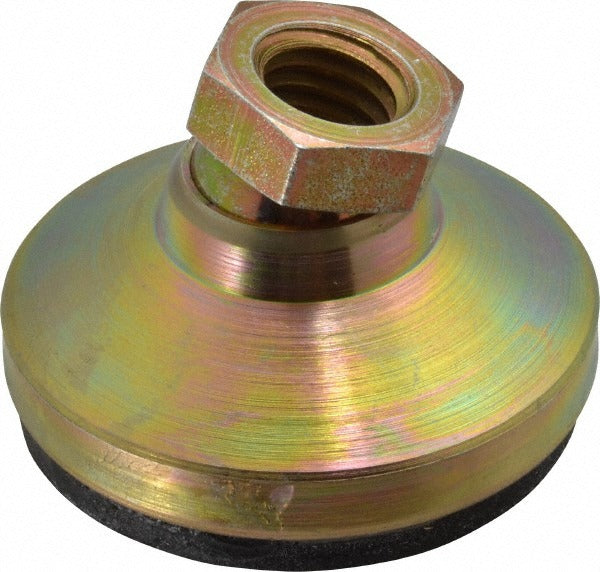

Vlier EP306B Tapped Pivotal Leveling Mount 1/2-13

Product Description

The VLIER EP306B is a tapped pivotal leveling mount designed for industrial equipment positioning and vibration isolation. It features a 1/2-13 tapped thread, a 1-7/8 inch base diameter, and a rated load capacity of 3,750 pounds. The elastomer pad provides surface grip and shock absorption while the steel stud delivers structural rigidity under heavy static and dynamic loads. This type of mount is installed by millwrights, maintenance technicians, and mechanical contractors when leveling machinery, fabricated frames, or production equipment on concrete or steel floors.

Tapped pivotal leveling mounts like the EP306B are used in manufacturing plants, equipment skids, conveyor systems, and industrial machinery bases where precise leveling and load distribution are required. The pivotal base design allows the pad to adjust to slightly uneven floor surfaces without compromising clamping force or stability. This part suits applications where a threaded insert is welded or machined into the equipment frame, accepting the 1/2-13 male stud directly.

Key Features

• 3,750 lb load capacity for heavy industrial equipment support
• 1/2-13 tapped thread for direct engagement with threaded equipment frames
• Pivotal base design accommodates minor floor surface irregularities
• Elastomer pad provides vibration damping and floor protection
• Steel stud construction for durability under sustained compressive load
• 1-1/8 inch overall length with 1/4 inch base edge height for low-profile fitment

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for industrial machinery and equipment frames with 1/2-13 threaded mounting points requiring pivotal pad adjustment.

Installation Notes

Installation is typically performed by millwrights or mechanical maintenance technicians using a 3/4 inch hex wrench or open-end wrench. Ensure the equipment is de-energized and safely supported before adjusting or replacing leveling mounts. Thread engagement should be sufficient to support the rated load without bottoming out the stud. Verify floor surface condition and load distribution across all mount points before returning equipment to service.
