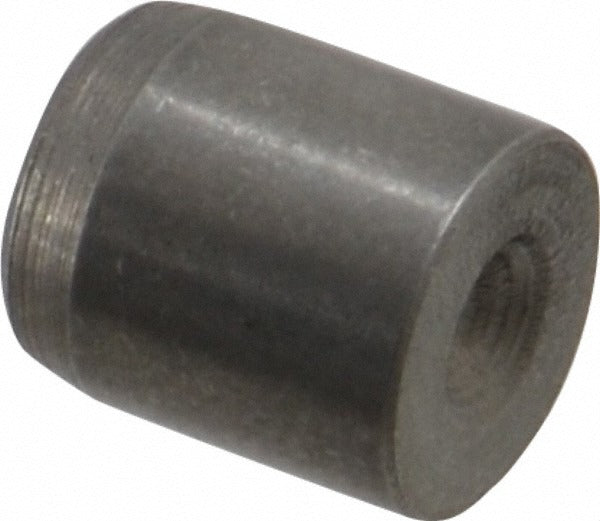

Vlier BB58 Ball Button Detent 3/8-16 Thread Stainless Steel

Product Description

The VLIER BB58 is a ball button detent designed for use with spring plunger assemblies in precision positioning and locking applications. Machined from 440C stainless steel, this detent button features a 3/8-16 thread, a 0.3284 inch outside diameter, and a 0.164 inch inside diameter. Overall length is 3/8 inch. The BB58 threads into a mating spring plunger body to create a controlled detent action, holding components in position under repeated engagement cycles. It is installed by maintenance technicians and machine builders working on jigs, fixtures, tooling, and mechanical assemblies.

This ball button detent is suited for light industrial and precision mechanical applications where a replaceable, corrosion-resistant detent contact point is required. The 440C stainless steel construction makes it appropriate for environments where moisture, cleaning agents, or mild corrosives are present. It is compatible with a range of VLIER spring plunger bodies and is sold individually.

Key Features

• 440C stainless steel construction for corrosion resistance and durability
• 3/8-16 thread for direct engagement with compatible plunger bodies
• 0.3284 inch outside diameter and 0.164 inch inside diameter
• 3/8 inch overall length for compact installation
• Replaceable detent button design for serviceability in the field

Compatibility

Compatible with the following VLIER plunger series and part numbers: B58, BH58, BL58, BM10, BMH10, BML10, D58, DL58, DSSB Series, ND58, NDL58, SSB58, SSBH58, and SSBL58.

Installation Notes

Installation is performed by hand or with standard hex tooling appropriate to the plunger body being serviced. Ensure the mating plunger body is fully disengaged from its assembly and all mechanical energy is released before removing or installing the detent button. Thread engagement should be confirmed before returning the assembly to service. Follow the equipment manufacturer's torque guidance for the specific plunger body in use.
