Vizio 756TXKCB02K014 Scaler Board Tv Replacement

Product Description

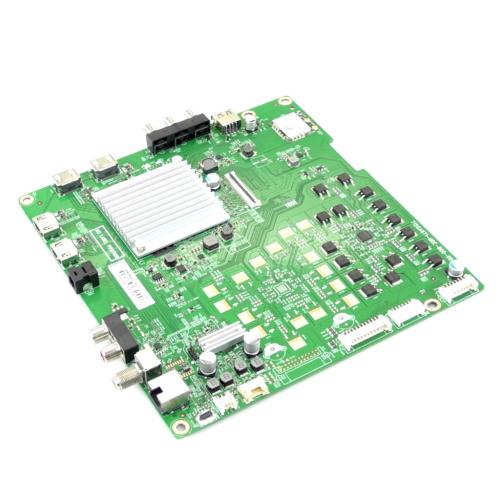

The VIZIO 756TXKCB02K014 is a scaler board designed for use in VIZIO television sets. The scaler board is responsible for processing and scaling incoming video signals to match the native resolution of the display panel. When this board fails, the TV may display distorted images, no picture, or resolution errors. This part is intended for qualified electronics repair technicians who service consumer television equipment and need an OEM-compatible replacement to restore proper display function.

This scaler board is sourced as a direct replacement component for VIZIO television repair. It is suited for bench-level service work where the original board has been diagnosed as faulty through systematic component-level troubleshooting. The internal reference code CBPRJQ3KA9C may be used to cross-reference this board during diagnosis or parts lookup.

Key Features

• OEM-style scaler board for VIZIO television display systems
• Handles video signal processing and resolution scaling for the display panel
• Internal board reference: CBPRJQ3KA9C
• Direct replacement for failed or damaged scaler board assemblies

Compatibility

Designed as an OEM-style replacement scaler board for compatible VIZIO television models. Confirm the board reference code CBPRJQ3KA9C against the original board label before installation to verify fitment.

Installation Notes

Scaler board replacement should be performed by a qualified electronics repair technician. Disconnect the television from all power sources and allow capacitors to discharge fully before opening the cabinet or handling internal components. Use proper ESD precautions including a grounded wrist strap when handling the board. Reconnect all ribbon cables and connectors fully and in the correct orientation before restoring power.

Technical Specifications

• Component Type: Scaler Board
• Board Reference: CBPRJQ3KA9C

Standard Information

• Brand: VIZIO
• Manufacturer Part Number: 756TXKCB02K014
