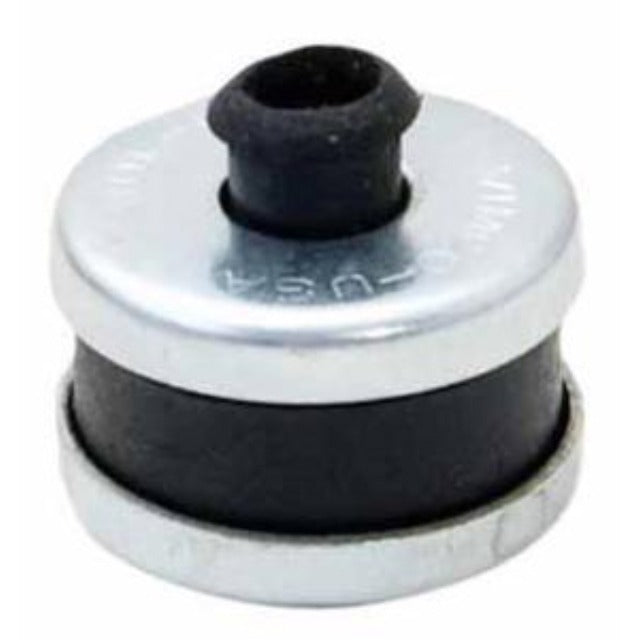

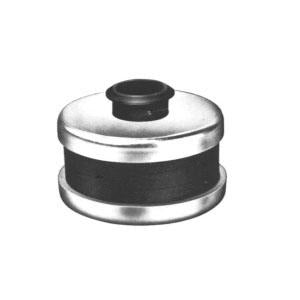

Vimco AVHM-100 Vibration Isolator Max 220 lb (3/8 in Rod)

Product Description

Vimco AVHM-100 is a vibration isolator hanger mount rated for a maximum load of 220 lb. The elastomer element includes a projected collar to prevent metal-to-metal contact and steel cups/plates for uniform loading; overall dimensions are 1.67 in x 1.02 in with 1/5 in deflection and a product weight of 0.50 lb. It fits threaded rod up to 3/8 in and is suitable for suspension of pipes, fans, and fan coil units, providing up to 17 dB(A) noise reduction.

• 220 lb maximum load; compatible with threaded rod up to 3/8 in
• Elastomer construction with projected collar and steel cups/plates to prevent rod short-circuiting and ensure uniform loading
• Overall dimensions 1.67 in x 1.02 in; 1/5 in deflection; product weight 0.50 lb; up to 17 dB(A) noise reduction

Product Highlights

Compact elastomer hanger mount for threaded-rod suspension with 220 lb load rating and 1/5 in deflection.

Product Information

Standard Information

• Brand: VIMCO
• Manufacturer Part Number: AVHM-100
