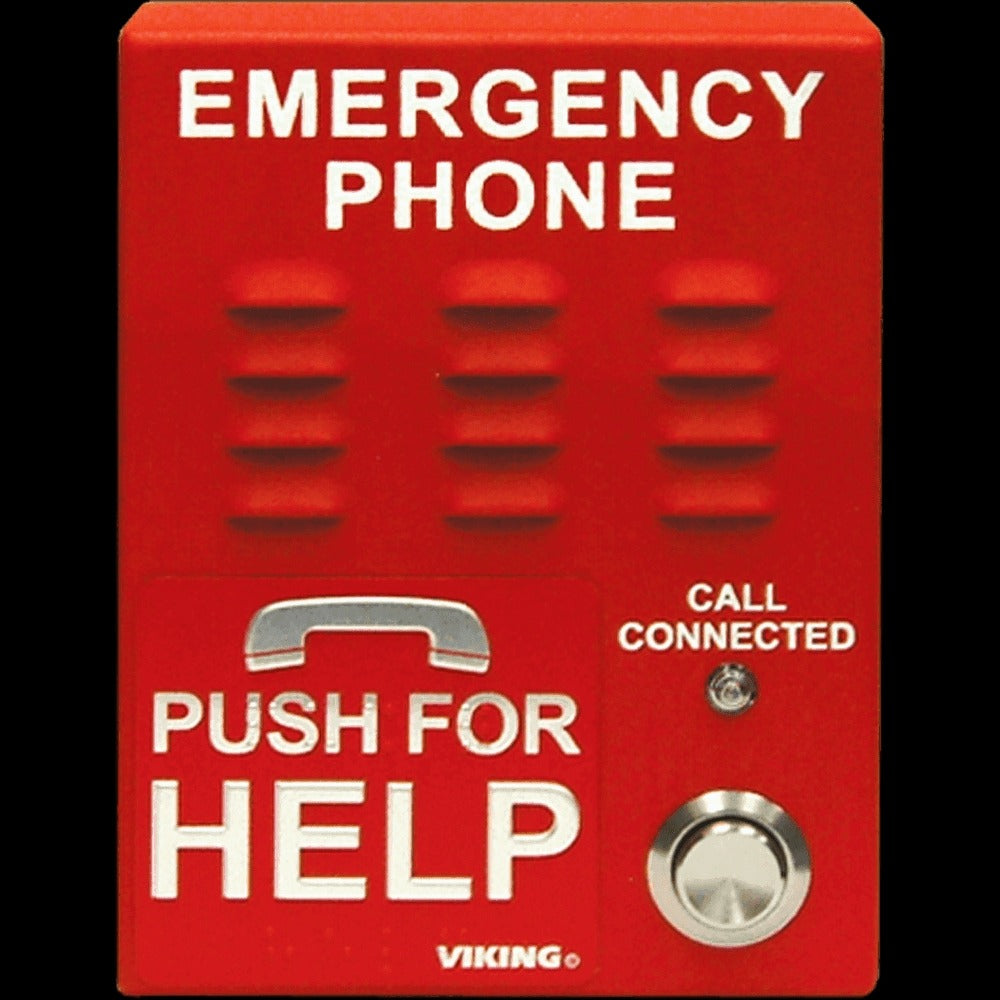

Viking Electronics e-1600-ip-ewp Voip Emergency Phone

Product Description

The VIKING ELECTRONICS e-1600-ip-ewp is a weatherproof VoIP emergency phone designed for SIP-based IP communication systems. It operates over Power over Ethernet (PoE, Class 1), eliminating the need for a separate power supply. The unit includes a 2 amp relay output for controlling external devices such as a strobe light or line verification panel, and features a red Call Connected LED indicator for visual confirmation of active calls. Automatic polling and programming software is included, simplifying deployment and ongoing system management. This unit is built for demanding environments where weatherproof construction and reliable emergency communication are required.

The e-1600-ip-ewp is suited for installation in outdoor or semi-exposed locations where emergency call capability must remain operational regardless of weather conditions. Typical applications include parking structures, building entry points, industrial facilities, and campus environments. It integrates into SIP-compliant IP-PBX phone systems; refer to the Product Manual for the full list of compatible systems. The relay contacts allow connection to a compatible strobe light or line verification panel to provide visual and audible call status indication at the installation point.

Key Features

• SIP-compliant VoIP operation for integration with IP-PBX systems
• PoE powered (Class 1) — no external power supply required
• 2 amp relay contacts for control of strobe light or line verification panel
• Red Call Connected LED indicator provides visual confirmation of active call
• Weatherproof construction suitable for outdoor and harsh-environment installations
• Automatic polling and programming software included

Compatibility

SIP-compliant design supports integration with IP-PBX phone systems; consult the Product Manual for the complete list of verified compatible systems. Relay output is compatible with devices such as the SL-2 Strobe Light (DOD 242) and the LV-1K Line Verification Panel (DOD 246).

Installation Notes

Installation should be performed by a qualified low-voltage technician or licensed communications contractor familiar with SIP-based VoIP systems. Power down or disconnect the PoE switch port before wiring relay contacts or mounting the unit. Follow all applicable local codes and NEC guidelines for low-voltage and data cabling. Verify SIP configuration and IP-PBX compatibility before finalizing the installation.

Technical Specifications

• Protocol: SIP-compliant VoIP
• Power Source: Power over Ethernet (PoE), Class 1
• Relay Contact Rating: 2 amps
• Call Status Indicator: Red Call Connected LED
• Construction: Weatherproof

Standard Information

• Brand: VIKING ELECTRONICS
• Manufacturer Part Number: e-1600-ip-ewp
