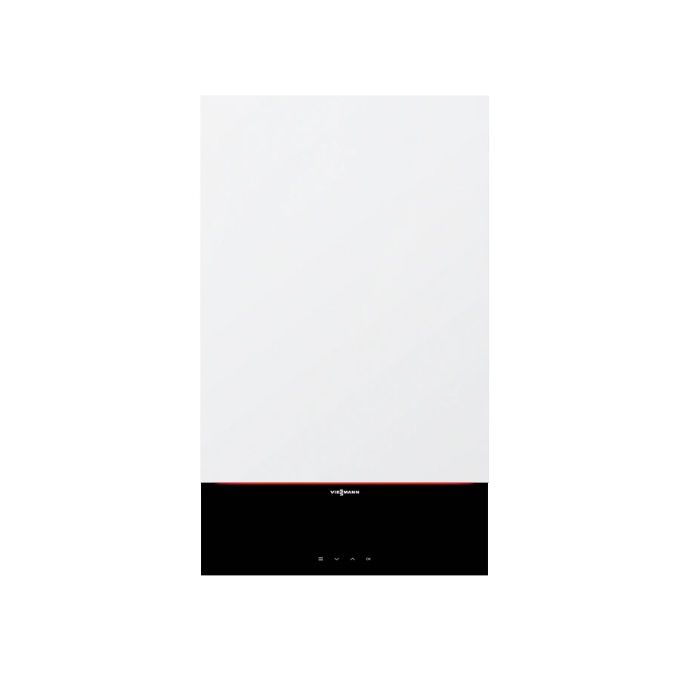

Viessmann 7722773 Gas Boiler Heat Only 120K 95% Afue

Product Description

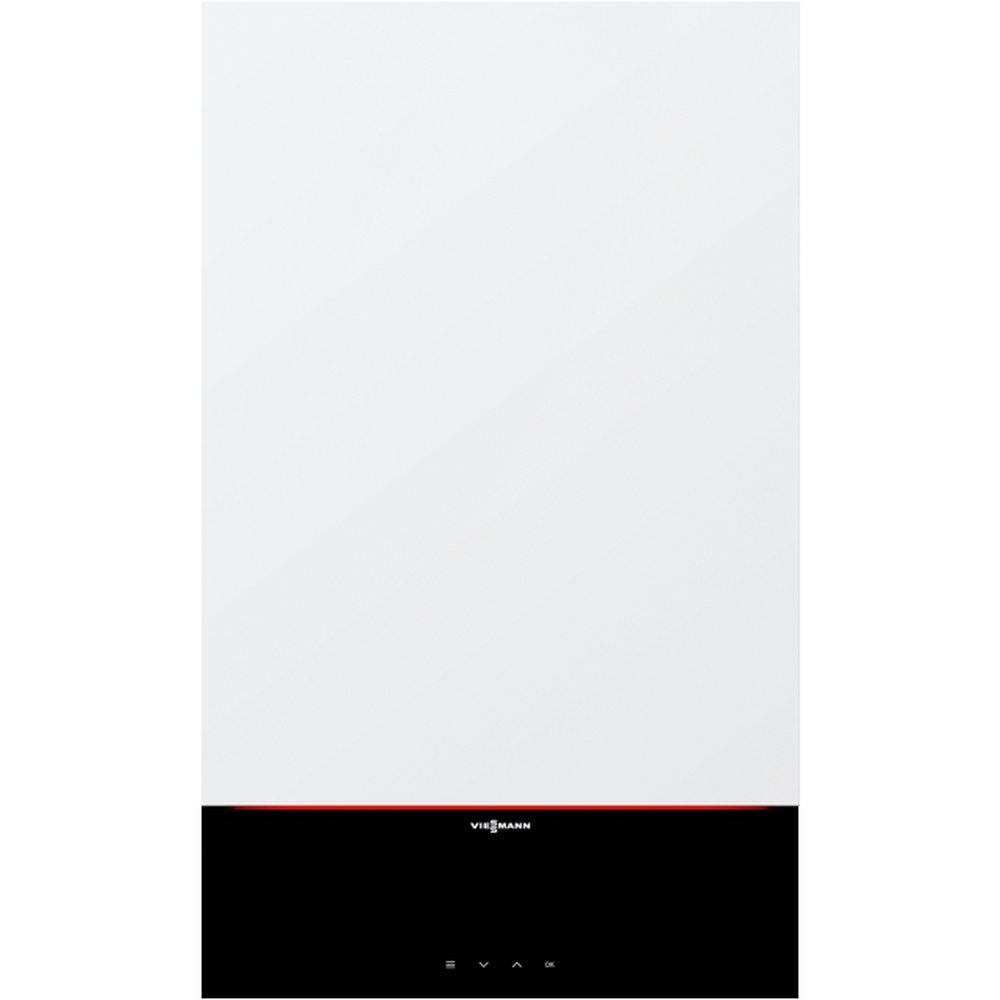

The Viessmann 7722773 Gas Boiler Heat Only 120K 95% AFUE is equipped with a Viessmann stainless steel heat exchanger for lasting performance. The Vitodens 100-W wall-mounted condensing boiler offers multiple venting options and flexible fuel options. Installation, service and maintenance are designed to be fast and easy.

• Outstanding efficiency of 95.0% A.F.U.E. on all models.

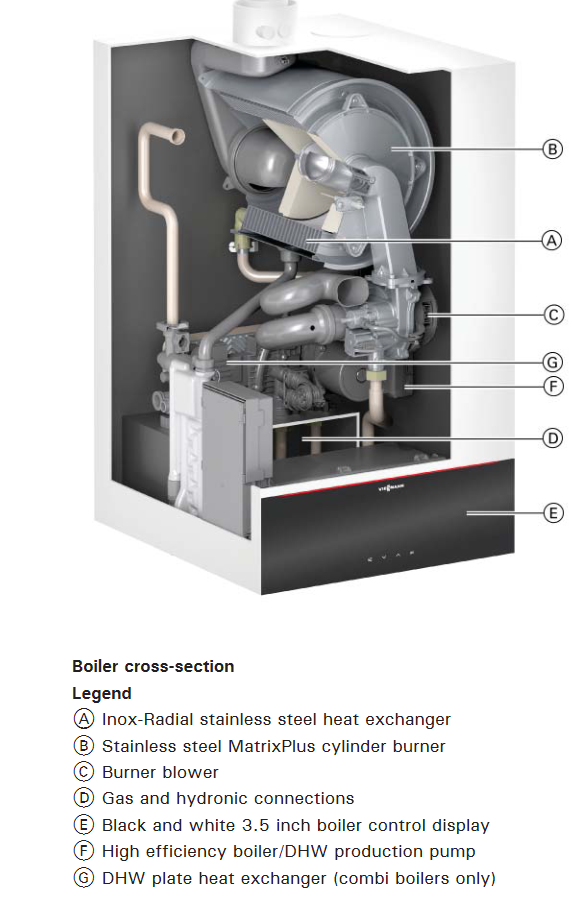

• Lasting performance with Viessmann-made SA240 / S43932 stainless steel Inox-Radial heat exchanger constructed to ASME Section IV and CSA B51.
• Low-emission operation with fully-modulating stainless steel MatrixPlus cylinder burner. Factory calibration eliminates field adjustments.

Product Highlights

The Vitodens 100-W offers an integrated WiFi interface, which allows the system to connect directly to the internet allowing for seamless integration with the ViCare App for smartphone or tablet.

Product Information

Standard Information

• Brand: VIESSMANN
• Manufacturer Part Number: 7722773

Technical Specifications

• Brand Name: Viessmann
• BTU Range Input: 120000
• BTU Range Output: 98000
• Voltage: 120V
• AFUE: 95%
• Fuel Type: Natural Gas/Liquid Propane
• MPN: 7722773
• Manufacturer: Viessmann
• Series: Vitodens
• Max Flow Rate: 6.2 GPM
• BTU Input: 120,000
• Venting Type: Direct Vent
• Water Heater Type: Residential
• Type: Wall Hung Combi Boiler
• Heat Exchanger Material: Stainless Steel
• BTU Output: 113000
• Annual Fuel Usage Efficiency (AFUE): 95.0
• Domestic Hot Water: No
• Building Type: Residential
• Vent Material: PVC/CPVC
• Supply: Male Iron Pipe 3/4
• Return: Male Iron Pipe 3/4
• Gas Connection (inches): 3/4
• Vent Size (inches): 3
• AMP: 12
• ANSI: ANSI 372, ANSI Z21.13
• ASME: ASME B51, ASME H
• Application: Commercial, Residential
• Boiler Type: Gas Boiler
• CSA Certified: CSA B51
• Collection: Vitodens 100-W
• Condensing: Yes
• Emission: Low NOx
• Energy Star Compliant: Yes
• Flow Rate: 6.2 gpm
• Installation Type: Wall Mount
• Material: Stainless Steel
• NSF: NSF 372
• NSF Certified: Yes
• Phase: Single Phase
• Return Pipe Connection: 3/4
• Supply Pipe Connection Size: 3/4
• Volts: 120V
