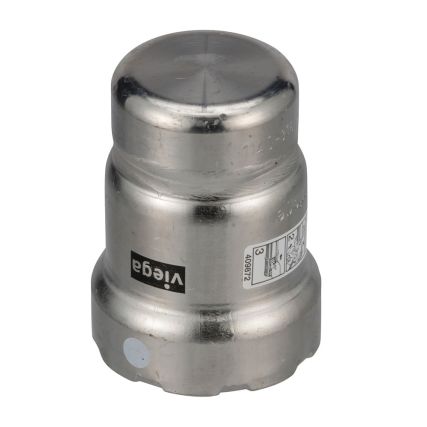

Viega Mega Press 91815 MegaPress Model 6856 Cap 1/2 in

Product Description

The Viega MEGA PRESS 91815 MegaPress Model 6856 Cap is the industry's first stainless fitting for Schedule 5 to 40 piping systems. It is available in size 1/2 in. The MegaPress 316 with an FKM sealing element is suitable for use with hydronic applications, compressed air, industrial gases, marine applications and more.

• Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 to 2 in and a PBT separator for sizes 2-1/2 to 4 in
• 316 stainless carries an NSF-61 potable water rating
• Wide range of fitting configurations

Product Highlights

The Viega MegaPress Cap eliminates threading and welding and makes secure press connections. It is also compatible with existing press tools.

Product Information

Standard Information

• Brand: VIEGA MEGA PRESS
• Manufacturer Part Number: 91815

Technical Specifications

• End Style: Press
• Fitting/Connector Type: Cap
• Material: 316 Stainless Steel
• Nominal Size: 1/2 In
• Pressure Rating: 200 psi
• Series: Model 6856
• Temperature Rating: 14 to 284 deg F
• Manufacturer Part Number: 91815
• Construction: Stainless Steel
