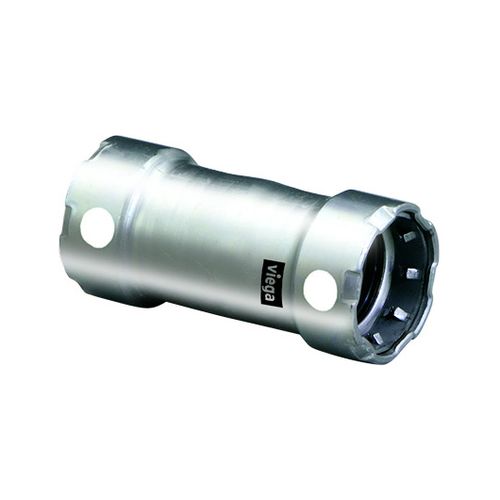

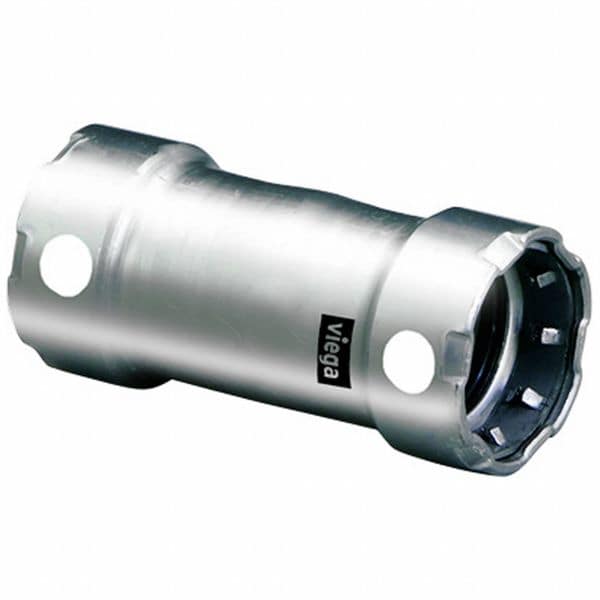

Viega 95805 MegaPress Coupling 1-1/4 inches x 1-1/4 inches

Product Description

The VIEGA 95805 MegaPress coupling is a 1-1/4" x 1-1/4" coupling made of 304 stainless steel. MegaPress fittings are designed for use with standard IPS ASTM A312 stainless steel pipe, forming a complete press system ideal for industrial applications. It is suitable for chemical applications and higher temperatures.

• Fitting Side A Connection Type Press-Fit
• Fitting Side B Connection Type Press-Fit
• Fitting Material Stainless Steel

Product Highlights

The Viega MegaPress coupling eliminates threading and welding, and makes secure press connections. It is compatible with existing press tools and features Smart Connect technology.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95805
• Country of Origin: Germany

Technical Specifications

• Primary Vendor Part Number: 95805
• Item: Coupling
• Application: Chemical
• Material Grade: 304
• Overall Length: 4 13/32 in
• O-Ring Material: FKM
• Fitting Material: Stainless Steel
• Specific Fitting Shape: Coupling
• Fitting Side A Pipe Size: 1 1/4 in
• Fitting Side B Pipe Size: 1 1/4 in
• Compatible Copper Tube Type: Not Applicable
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: Not Applicable
• Fitting Side B Copper Tube Size: Not Applicable
• Fitting Side A Tube Outer Diameter: 1 1/4 in
• Fitting Side B Tube Outer Diameter: 1 1/4 in
• Lead Free: Yes
• Connection Type: Press
• Size: 1-1/4 in
• Material: 304 Stainless Steel
• Fitting/Connector Type: Coupling
• End Style: Press
• Series: 4115.5
• Temperature Rating: 14 to 284 deg F
• Pressure Rating: 200 psi
• Domestic Import: Import
• Fitting Side 2 Pipe Size: 1 1/4 in
• Fitting Side 2 Tube Outer Diameter: 1 1/4 in
• Fitting Side 1 Pipe Size: 1 1/4 in
• Standards: ABS Type approval ASME B31.1, ANSI/CAN/UL 213, ASME B31, ASME B31.3, ASME B31.9BV, ASTM A312, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RFM Class 1920
• Color: Silver
• Compatible Tool Brand: Milwaukee, Ridgid
• Maximum Operating Temperature: 250 Degrees F
• Maximum Operating Pressure: 200 psi
• Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant Not Included
• Compatible Tube Material: Stainless Steel
• Minimum Operating Temperature: 0 Degrees F
• Includes Center Stop: No Center Stop
• Operating Pressure - Maximum: 200 psi
• Fitting Side 2 Connection Type: Press-fit
• For Media Type: Chemicals
• Operating Temperature - Minimum: 0 Degrees F
• Compatible Tube Hardness: Schedule 5 to Schedule 40
• Center Stop Type: No Center Stop
• Operating Temperature - Maximum: 250 Degrees F
• Fitting Side 1 Connection Type: Press-fit
• Fitting Shape: Straight
• Connector Type: Coupling
• collectionName: MegaPress 304 FKM
• Batteries included: No
• Hazardous Material: No
• Label Part Dimension: 1-1/4 in x 1-1/4 in
• Material#: 402763
• Model#: 4115.5
• UOM: Piece
• dimensionString: 1-1/4'' x 1-1/4''
