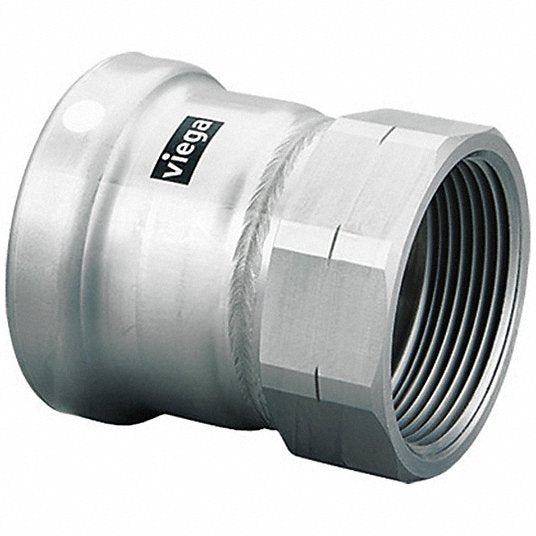

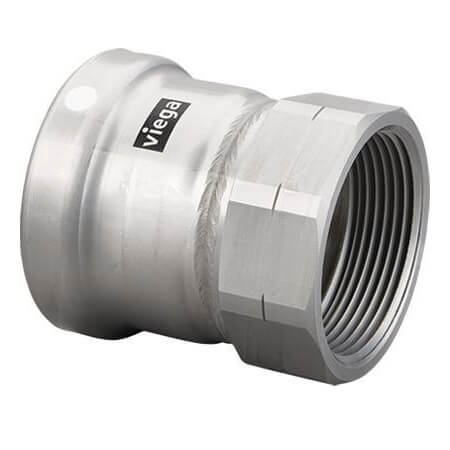

Viega 95770 MegaPress Adapter 2-1/2 inches

Product Description

The VIEGA 95770 MegaPress adapter is a 2-1/2" adapter made from 304 stainless steel. Designed for use with Schedule 10 to Schedule 40 stainless steel pipe, it forms a complete press system suitable for commercial and industrial applications. It utilizes a versatile FKM sealing element to provide a reliable, leak-free connection.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• Fast and easy to use

Product Highlights

This adapter eliminates threading and welding, and is compatible with existing press tools. Ideal for transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or other essential fluids or gases.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95770
• Country of Origin: Import

Technical Specifications

• End Style: Press x FNPT
• Fitting/Connector Type: Adapter
• Nominal Size: 2-1/2 in
• Temperature Rating: 0 to 250 deg F
• Material: 304 Stainless Steel
• Pressure Rating: 200 psi
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Fitting Side A Pipe Size: 2 1/2 in
• Fitting Side B Pipe Size: 2 1/2 in
• O-Ring Material: FKM
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: FNPT
• Fitting Side A Tube Outer Diameter: 2 1/2 in
• Overall Length: 3 27/32 in
• Compatible Tube Hardness: Schedule 5 to Schedule 40
• Compatible Tool Brand: Milwaukee; Ridgid
• Fitting Shape: Straight
• Compatible Tube Material: Stainless Steel
• Fitting Side 1 Connection Type: Press-fit
• Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant Not Included
• For Media Type: Chemicals
• Standards: ABS Type approval ASME B31.1; ANSI/CAN/UL 213; ASME B31; ASME B31.3; ASME B31.9BV; ASTM A312; ASTM A554; CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002; NFPA 13; NFPA 13D; NFPA 13RFM Class 1920
• Maximum Operating Pressure: 200 psi
• Brand: VIEGA
• MPN: 95770
• Domestic/Import: Import
• Includes: FKM Sealing Element
• Size: 2-1/2"
• Connection Type: Press x FNPT
• Series: 4112XL
