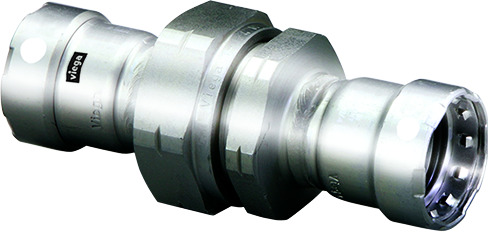

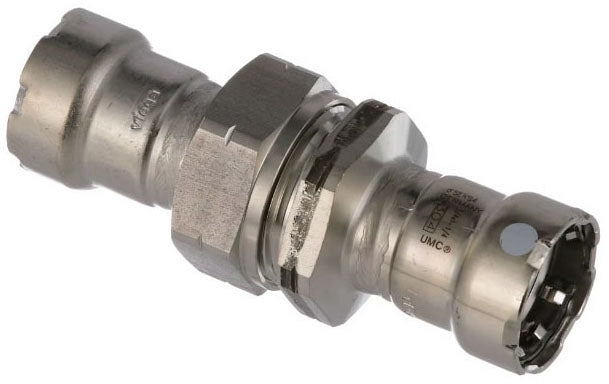

Viega 95425 MegaPress Union 1 inches x 1 inches

Product Description

The VIEGA 95425 MegaPress union is a 1" x 1" fitting made of 304 stainless steel. Designed for use with Schedule 10 to Schedule 40 stainless steel pipe, it forms a complete press system suitable for commercial and industrial applications. It utilizes a FKM sealing element to provide a reliable, leak-free connection.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• Fast and easy to use

Product Highlights

The MegaPress system eliminates threading and welding, and is compatible with existing press tools. Ideal for transporting process water, diesel fuel, and other essential fluids or gases.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95425
• Country of Origin: Germany

Technical Specifications

• Nominal Size: 1 in
• Material: 304 Stainless Steel
• Pressure Rating: 200 psi
• Includes: FKM Sealing Element
• Warranty: Limited
• Temperature Rating: 14 to 284 Deg F
• Fitting/Connector Type: Union
• End Style: Press
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• MPN: 95425
• Brand: VIEGA
• Item: Union
• Pipe Size: 1 in x 1 in
• Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size: 1 in x 1 in
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Temp. Range: 0 Degrees to 250 Degrees F
• Fitting Shape: Union
• Max. Pressure: 200 psi
• Material Grade: 304
• Overall Length: 5 11/32 in
• Stop and Shape: Straight Union
• Connection Type: P1 x P2
• O-Ring Material: FKM
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 1 in
• Fitting Body Material: 304 Stainless Steel
• Tube Fitting Material: 304 Stainless Steel
• Specific Fitting Shape: Straight Union
• Fitting Connection Type: Press x Press
• Fitting Side A Pipe Size: 1 in
• Fitting Side B Pipe Size: 1 in
• Pipe Size - Pipe Fitting: 1 in x 1 in
• Maximum Operating Pressure: 200 psi
• Specific Pipe Fitting Shape: Union
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Country of Origin (subject to change): Germany
• UPC: 691514954257
• Applicable Standard: ASME/TSSA B31.1/B31.3/B31.9/B31, ICC LC1002, IAPMO/UPC PS-117,CRN 13492.5 A/B
• Service: Transporting Process Water, Diesel Fuel, Lube Oil, Ammonia, Low Pressure Steam or Essential Fluid or Gas
• Size A: 1 Inch
• Size B: 1 Inch
• Type: Straight
• VEN Product No: 95425
• Vendor UPC (12): 691514954257
• VENDOR Product No: 95425
• Vendor Short Name: 691514
• Size: 1 in
• Domestic Import: Import
• Manufacturer: Viega
• Category: MegaPress Press Fittings
• Country Of Origin: Made In Germany
• Material Type: 304 Stainless Steel
• Product Dimension: 1'' x 1''
• Department: Plumbing
• Product Group: Plumbing Fittings
• Product Subgroup: Tees
• Product Type: Tee
