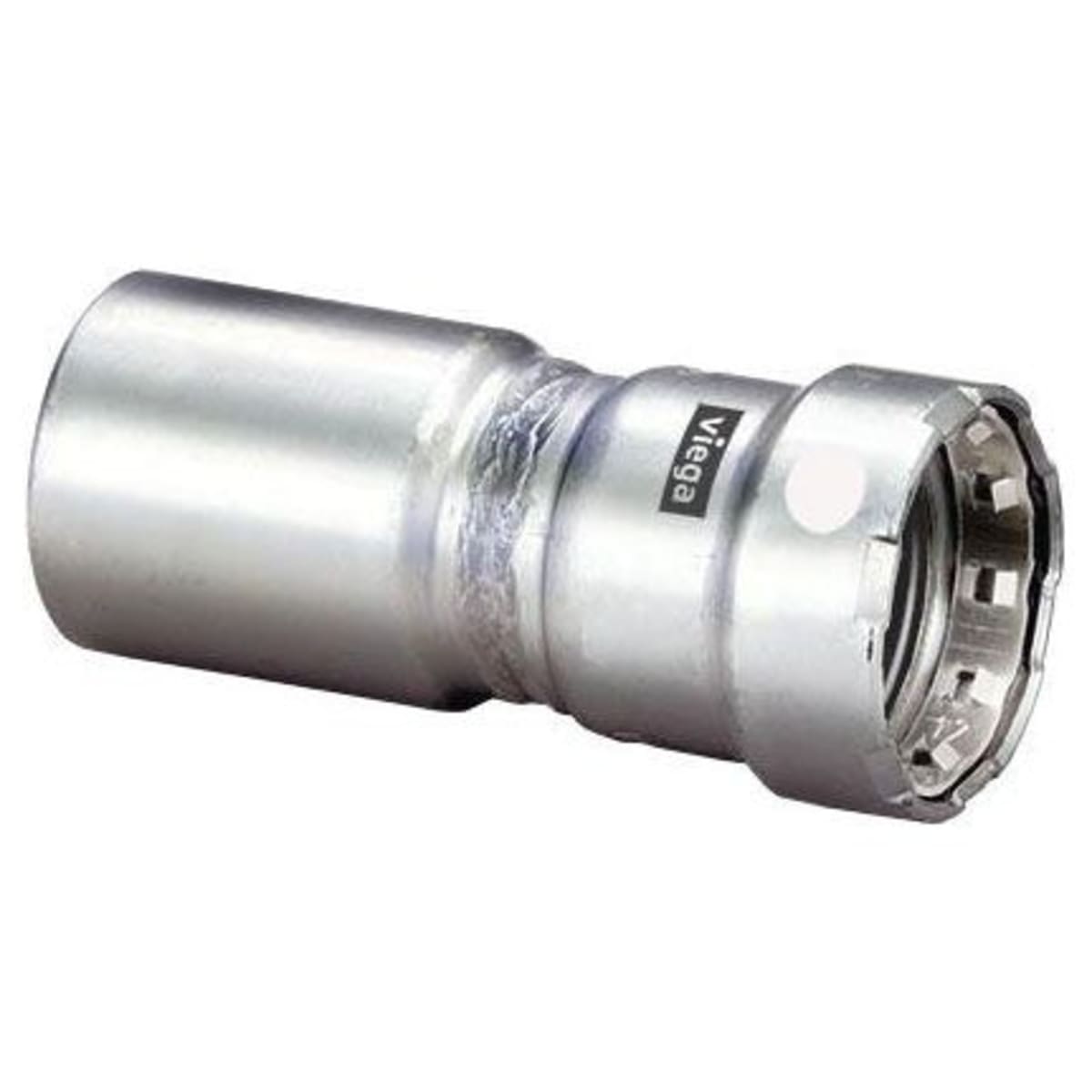

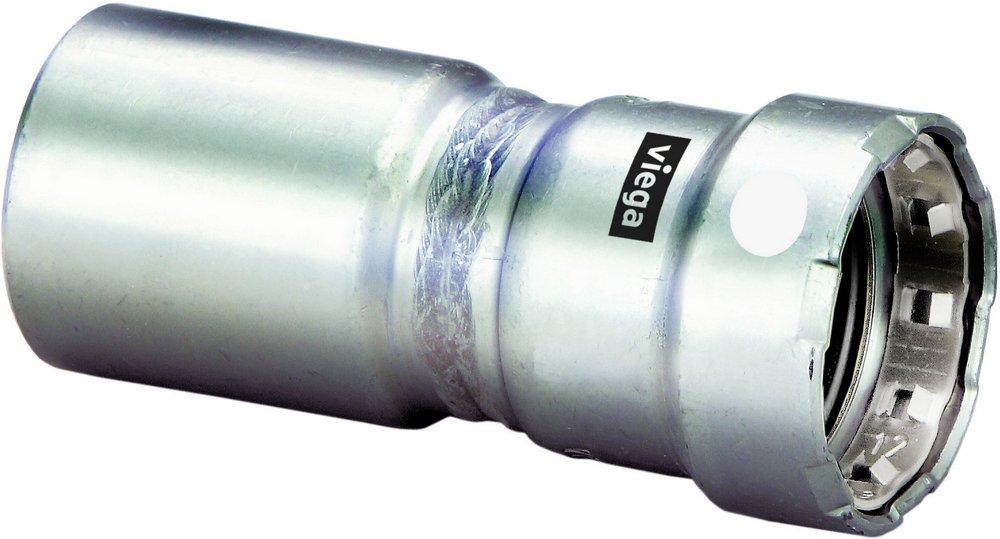

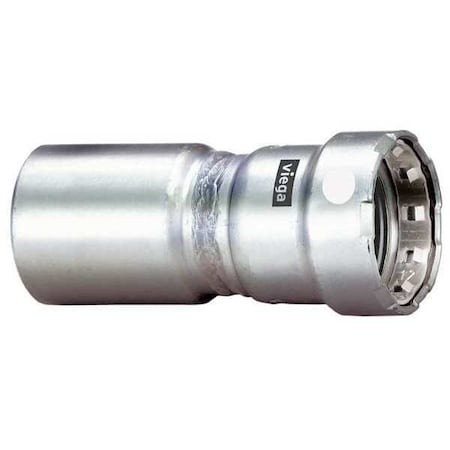

Viega 95370 MegaPress Reducer 1-1/2 inches x 3/4 inches

Product Description

The VIEGA 95370 MegaPress reducer is a 1-1/2" x 3/4" fitting made from 304 stainless steel. Viega MegaPress Stainless 304 fittings are designed for use with Schedule 10 to Schedule 40 stainless steel pipe, making them suitable for commercial and industrial applications. These fittings utilize an FKM sealing element for a reliable, leak-free connection.

• Made from 304 stainless steel
• Features a versatile FKM sealing element
• Suitable for commercial and industrial applications

Product Highlights

The Viega MegaPress system minimizes downtime by allowing for wet connections and eliminating the need for welding, grinding, or heavy equipment.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95370
• Country of Origin: Import

Technical Specifications

• Primary Vendor Part Number: 95370
• Size: 1-1/2" x 3/4"
• Type: Fitting Reducer
• Material: 304 Stainless Steel
• Connection_Type: Press x FTG
• Domestic/Import: Import
• End Style: FTG x Press
• Temperature Rating: 0 to 250 deg F
• Pressure Rating: 200 psi
• Fitting/Connector Type: Reducer
• Includes: FKM Sealing Element
• Application: Non-Potable Water
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B312, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size: 1-1/2 in x 3/4 in
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Fitting Shape: Adapter
• Max. Pressure: 200 psi
• Material Grade: 304
• Overall Length: 4 5/32 in
• Stop and Shape: Straight Adapter
• Connection Type: FTG x Press-Fit
• O-Ring Material: FKM
• Copper Tube Size: 1 1/2 in
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 3/4 in
• End Connection Type: Fitting, Press
• Pipe Size (Fittings): 1-1/2" x 3/4"
• Fitting Body Material: 304 Stainless Steel
• Tube Fitting Material: 304 Stainless Steel
• Specific Fitting Shape: Straight Adapter
• Fitting Connection Type: Press x Street
• Fitting Copper Tube Size: 1 1/2 in
• Fitting Side B Pipe Size: 3/4 in
• Maximum Operating Pressure: 200 psi
• Specific Pipe Fitting Shape: Reducer
• Pipe Fitting Connection Type: Press x Street
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: FTG
• Fitting Side B Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: 1 1/2 in
• Country of Origin (subject to change): Germany
• L: 4.15 in
• A: 3.00 in
• Weight: 0.633 lb
• Product Type: Reducer
• Width: 1.9"
• Height: 1.9"
• Finish: No Finish Group
• Collection: MegaPress 304 FKM
• UPC: 691514953700
• Online Product ID: 4106349
• Nominal Size: 1-1/2 x 3/4 In
• Clean Bagged: No
• End Connection 1: Fitting
• End Connection 2: Press
• End Connections: Fitting x Press
• FM Approved: No
• Fitting Size 1: 1-1/2
• Fitting Size 2: 3/4
• Fitting Sizes: 1-1/2 in x 3/4 in
• IAPMO Listed: No
• Length: 4-3/20
• Material Type: 304 SS
• NSF Certified: No
• Origin: Global
• UL Listed: No
• Unit Of Measure: Piece
