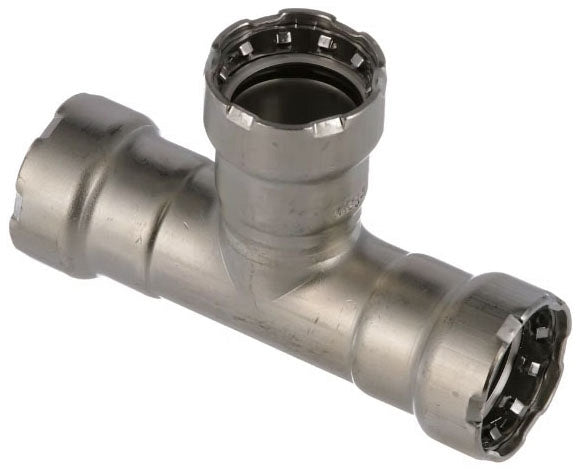

Viega 95165 Megapress 304SS Reducing Press Tee 2x3/4 in

Product Description

The VIEGA 95165 is a reducing press tee fitting designed for use with the MegaPress press-fitting system. Manufactured from 304 stainless steel, this tee connects a 2-inch run to a 3/4-inch branch without threading or soldering. The FKM sealing element is integrated into the fitting and is activated by a standard press tool, creating a reliable, leak-free joint. Licensed plumbers and pipefitters install this fitting in commercial and industrial piping systems where stainless steel is specified for corrosion resistance or system cleanliness requirements.

This reducing tee is suited for commercial plumbing, mechanical, and hydronic applications where a branch takeoff at a reduced diameter is needed. The MegaPress system is commonly used in tight spaces or retrofit situations where open-flame work is restricted. The 2-inch by 3/4-inch configuration handles main-line-to-branch transitions in a single fitting, reducing the need for additional couplings or adapters.

Key Features

• 304 stainless steel body for corrosion resistance in demanding environments
• Press-style connection eliminates threading, welding, or soldering
• FKM sealing element factory-installed in the fitting
• Reducing geometry: 2-inch run with 3/4-inch branch outlet
• Compatible with the MegaPress press-fitting system

Compatibility

Designed for use with the VIEGA MegaPress press-fitting system. Requires a MegaPress-compatible press tool and jaw set sized for 2-inch and 3/4-inch connections.

Installation Notes

Installation must be performed by a licensed plumber or pipefitter using a VIEGA MegaPress-approved press tool. Shut off and depressurize the system fully before cutting into any existing line. Confirm pipe ends are clean, round, and deburred before inserting into the fitting to ensure a proper FKM seal. Follow local plumbing codes and the manufacturer installation guidelines for press-fitting systems.

Technical Specifications

• Fitting Material: Stainless Steel 304
• Fitting Size: 2 inches x 3/4 inches
• System: MegaPress
• Type: Reducing Tee
• Seal Material: FKM
• End Connections: Press x Press x Press (PxPxP)

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95165
