Viega 92041 PureFlow Adapter, 3/4 in, Press x Female C

Product Description

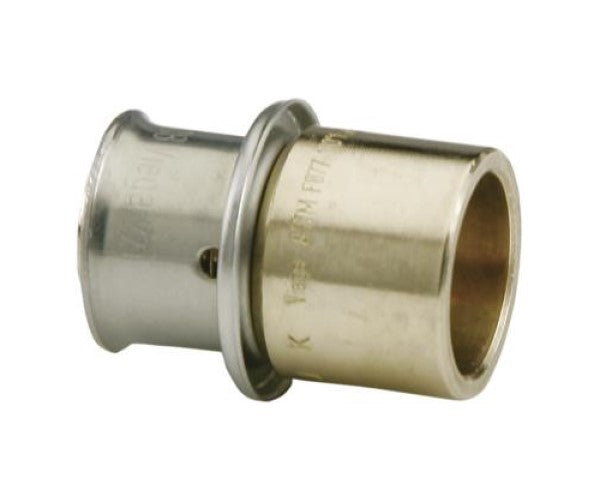

The Viega 92041 PureFlow Adapter connects pipes with a press-fit end to a female copper end. This lead-free bronze adapter is part of the PureFlow series. It has a nominal size of 3/4 inch and a length of 1.52 inches. It is suitable for applications requiring a pressure rating of up to 100 psi and temperatures from 180 to 200 deg F.

• Lead Free
• PureFlow® Series
• Bronze Construction

Product Highlights

This Viega adapter ensures secure connections in plumbing systems, offering durability and resistance to corrosion.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 92041
• Country of Origin: DE

Technical Specifications

• Fitting/Connector Type: Adapter
• Nominal Size: 3/4 in
• Connection Type: Press x Female C
• Length: 1.52 in
• Pressure Rating: 100 psi
• Material: Bronze
• Temperature Rating: 180 to 200 deg F
• Series: PureFlow®
• Lead Free: Yes
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• End Connection: PureFlow Press x Female Soldered
• Material Specification: ASTM F876/877/E84/F2023
• Application: Hot and Cold Potable Water, Rainwater/Gray Water, Hydronic Heating and Cooling, Fire Sprinkler
• Applicable Standard: UL/ANSI 263/1821, CAN/ULC S101/S102.2, CSA B137.5, CPC, NSPC, UMC, UPC, IMC, IPC, IRC, NBCC, NPCC, ICC, IAPMO, HUD MR1276, NFPA 13D, NSF/ANSI 14/61/359/372
• Domestic/Import: Import
• End Style: Press x Female C
• Mfg Standards/Approvals: NSF 61, UL Listed
• Type: Zero Lead
• Potable Water Usage: Yes
• End 1 Connection Type: Press
• End 1 Connection Size: 3/4 Inch
• End 2 Connection Type: Copper
• End 2 Connection Size: 3/4 Inch
• CSA Listed: Yes
• UPC Listed: Yes
• NSF Certified: Yes
• ASTM Certified: Yes
• ICC Listed: Yes
• Warranty: 25 Years
