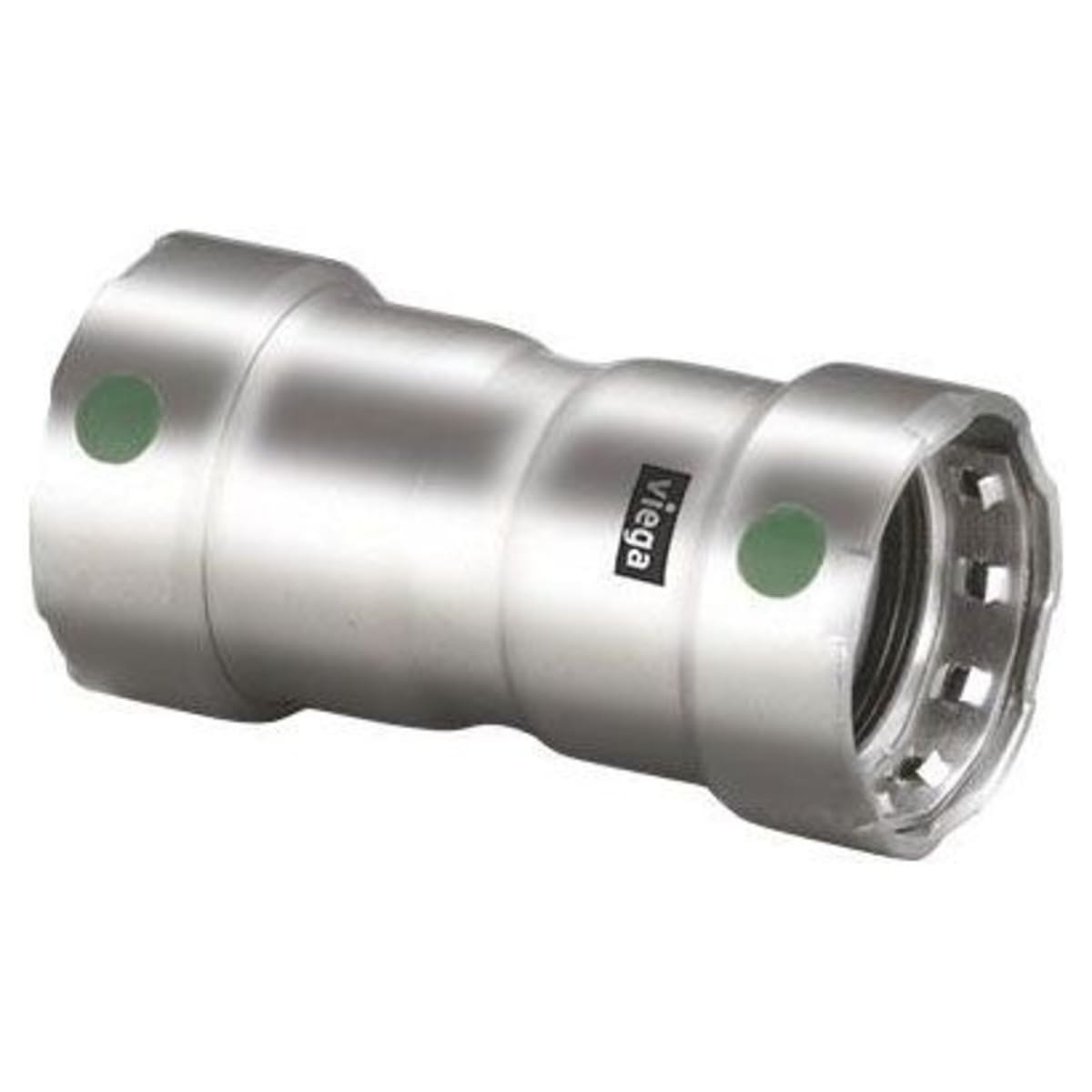

Viega 90305 MegaPress Coupling 2 inches x 2 inches

Product Description

The VIEGA 90305 MegaPress coupling is designed for use with Schedule 10 to Schedule 40 stainless steel pipes. This 2" x 2" coupling features a press connection and is made from 316 stainless steel. It utilizes a EPDM sealing element to provide a reliable, leak-free connection for commercial and industrial applications.

• Features Smart Connect technology
• Constructed from 316 stainless steel
• Suitable for potable water applications

Product Highlights

The Viega MegaPress system minimizes downtime by allowing for wet connections and eliminating the need for welding, grinding, or heavy equipment.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90305
• Country of Origin: Germany

Technical Specifications

• Brand: VIEGA
• MPN: 90305
• Material: 316 stainless steel
• Size: 2"
• Type: Coupling
• Connection_Type: Press
• Item [Specifications]: Coupling with Stop
• Pipe Size [Specifications]: 2 in x 2 in
• Standards [Specifications]: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 2 in x 2 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application [Specifications]: Potable Water
• For Tube OD [Specifications]: 2 in
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Connector
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 316
• Overall Length [Specifications]: 4 23/32 in
• Stop and Shape [Specifications]: Rolled Center Stop Straight Connector
• Connection Type [Specifications]: Press-Fit x Press-Fit
• O-Ring Material [Specifications]: EPDM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 2 in
• End Connection Type [Specifications]: Press
• Includes Center Stop [Specifications]: Rolled Center Stop
• Pipe Size (Fittings) [Specifications]: 2" x 2"
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Tube Fitting Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: Straight Connector
• Fitting Connection Type [Specifications]: Press x Press
• Fitting Side A Pipe Size [Specifications]: 2 in
• Fitting Side B Pipe Size [Specifications]: 2 in
• Pipe Size - Pipe Fitting [Specifications]: 2 in x 2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Coupling
• Pipe Fitting Connection Type [Specifications]: Press x Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Fitting Side B Tube Outer Diameter [Specifications]: 2 in
• Country of Origin (subject to change) [Specifications]: Germany
• Nominal Size: 2 in
• End Style: Press
• Seal Material: EPDM
• Manufacturer Name: Viega
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Includes: EPDM Sealing Element (Green Dot)
• Application: Commercial and Industrial
• Domestic/Import: Import
• Standards and Approvals: ASTM A312/A403 | CRN 13492.5 A/B | IAPMO to IAPMO PS117 | ICC-LC1002 | TSSA/ASME B31.1/B31.3/B31.9 | NSF/ANSI 61/372
• Fitting Size: 2 in
• Item Name: Coupling
• Sub Brand: MegaPress
• Fitting Type: Coupling
• Nominal Size A: 2 in
• Nominal Size B: 2 in
• Fitting Material: Stainless Steel
• Connection Type: Press|Press
• Material Construction: Stainless Steel
• Applications: Commercial and Industrial
• For Use With: SCH 5 to SCH 40 Stainless Steel Pipes
