Product Description

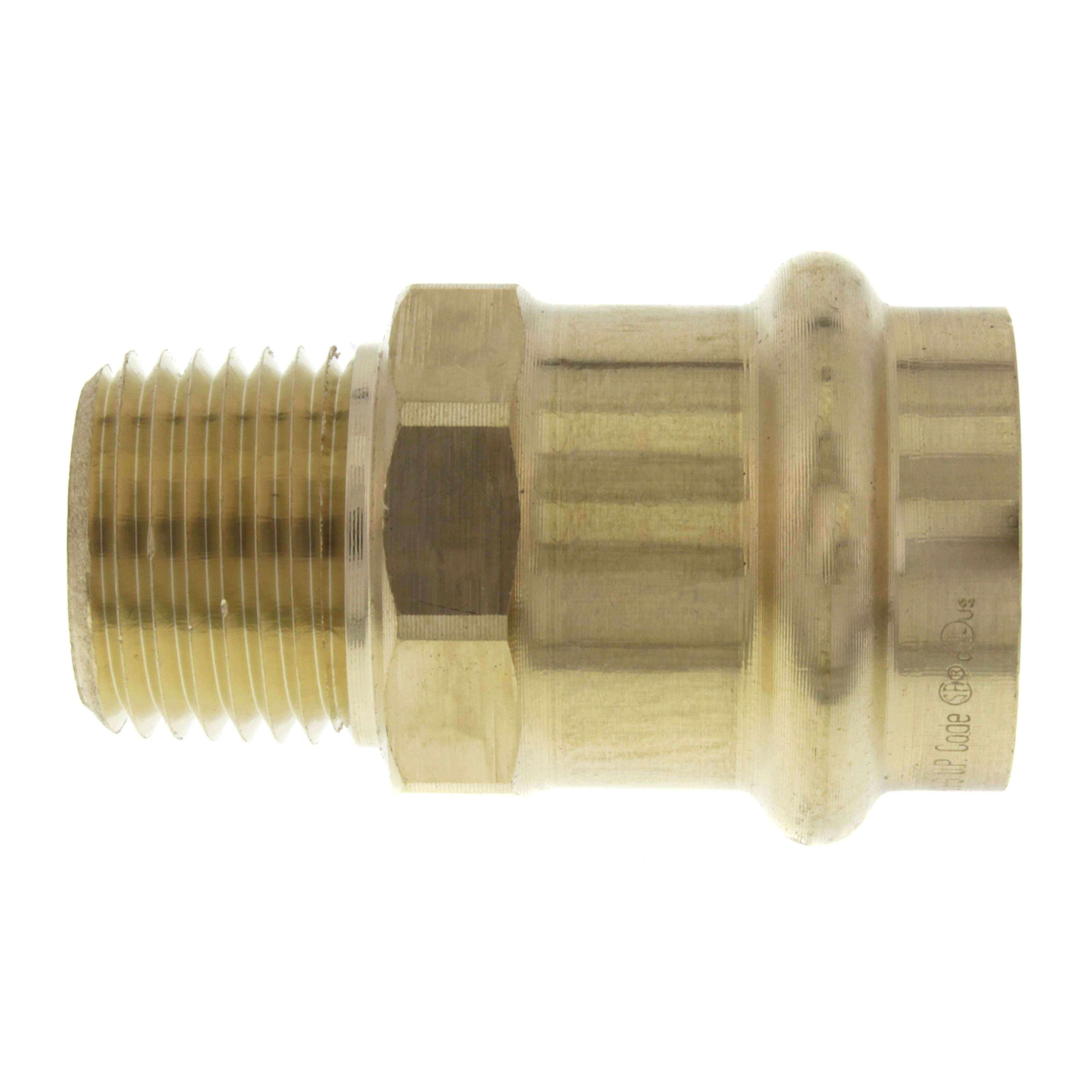

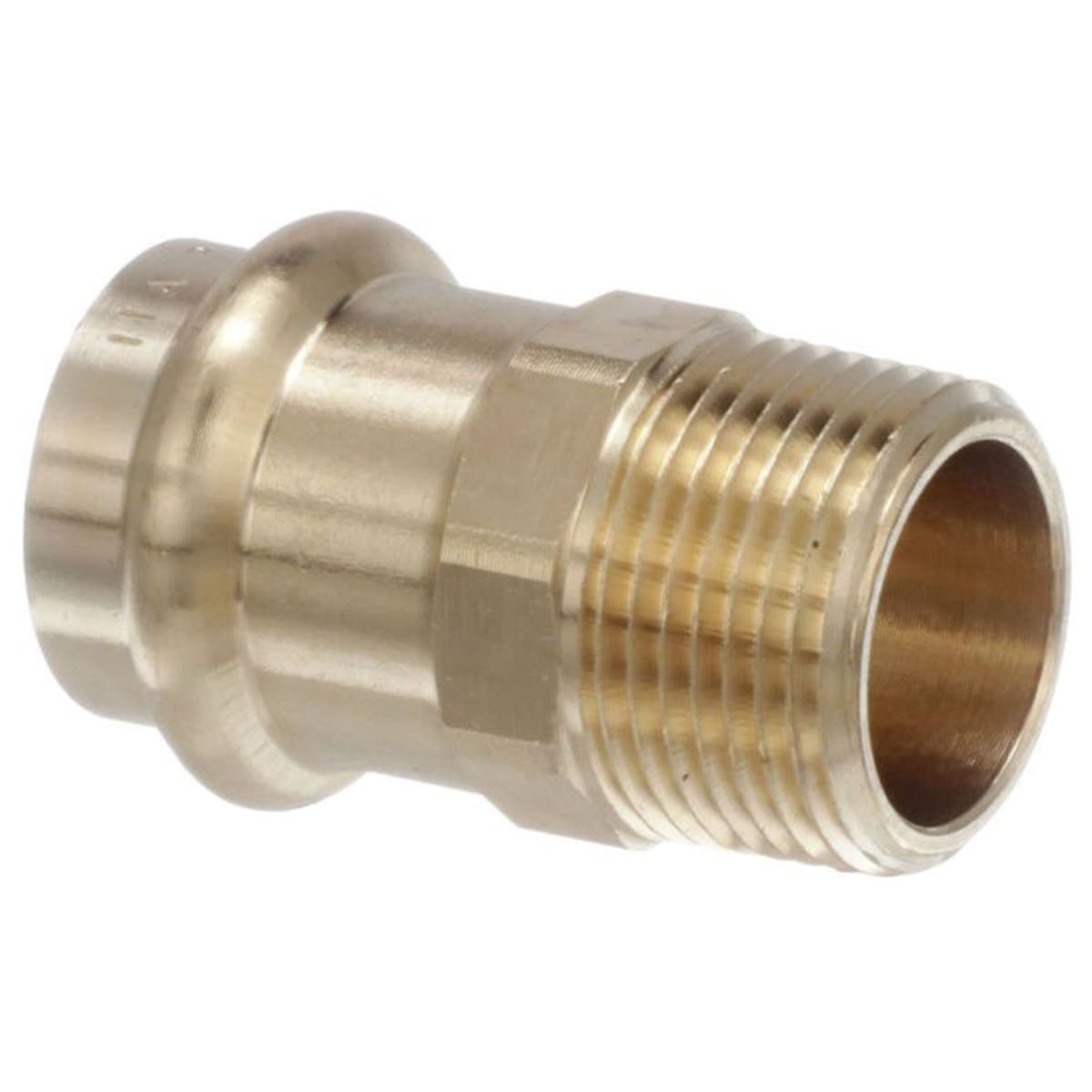

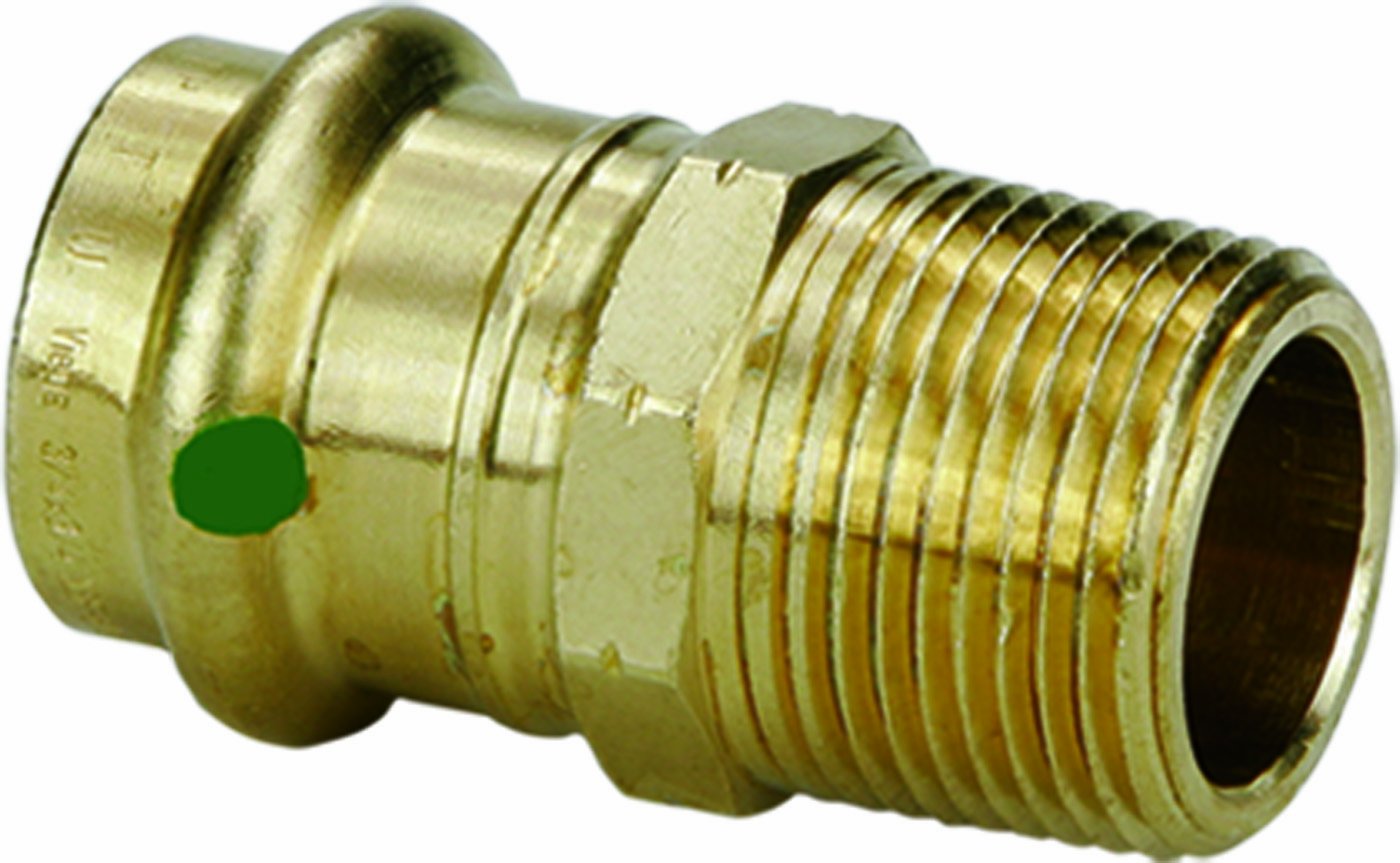

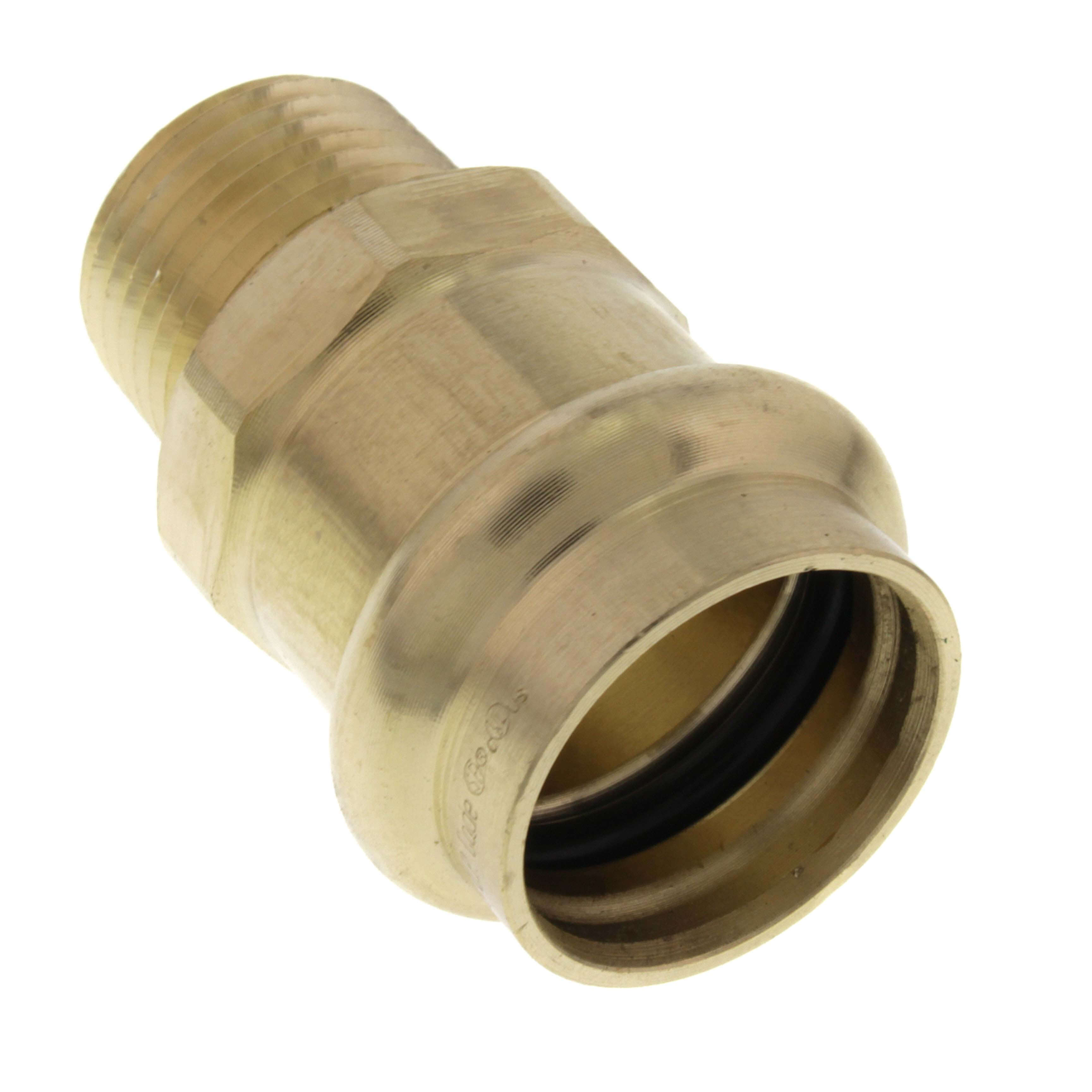

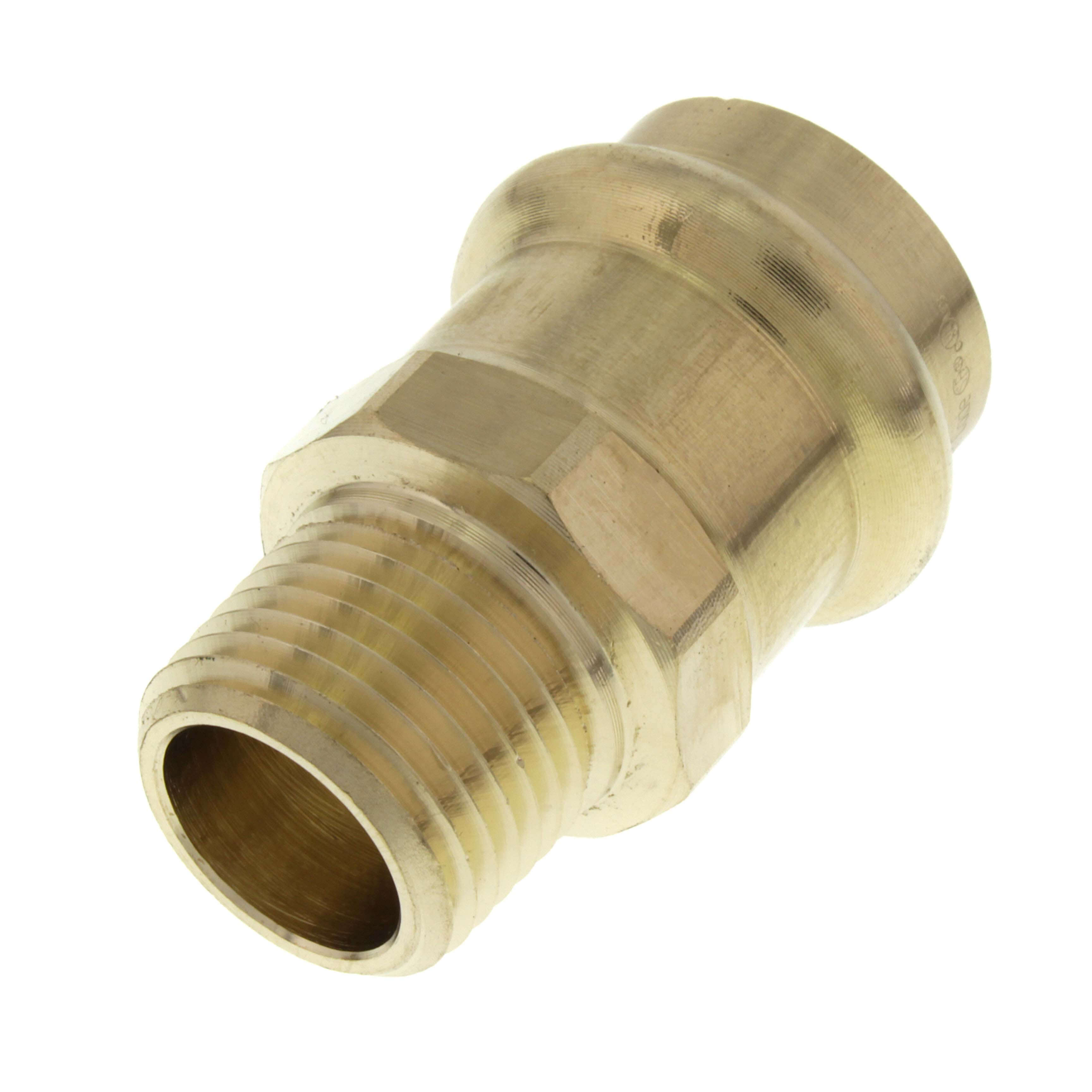

The Viega 79225 is an adapter fitting with a reducing type. Size A is 3/4 inch and Size B is 1/2 inch. It features a ProPress x Male Threaded end connection and is constructed from bronze. It has a pressure rating of 200 PSI and a temperature rating of 0 to 250 Deg F.
- Patented Viega Smart Connect makes secure connection in less than 7 seconds
- Minimizes system downtime by allowing for wet connection
- Fast and Easy to Use
Product Highlights
This lead-free adapter fitting is suitable for use with ASTM B88 tubing in chilled water, compressed air, and potable water systems.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 79225
-
Country of Origin: Germany
Technical Specifications
-
Applicable Standard: UL, CSA MSE-13, ABS, CRN 0A14541.5 A/B/C, FM 1920, IAPMO PS117, ICC-ES PMG-1037, NSF/ANSI 61/372, PHCC, ULC/ORD 213, NFPA 13/13D/13R, ICC LC 1002, ASME B16 .51
-
Application: Chilled Water, Compressed Air, Potable Water, Hydronic Heating, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
-
End Connection: ProPress x Male Threaded
-
Material: Bronze
-
Pressure Rating: 200 PSI
-
Size A: 3/4 Inch
-
Size B: 1/2 Inch
-
Temperature Rating: 0 to 250 Deg F
-
Type: Reducing
-
Brand Name: ProPress
-
Manufacturer Part Number Additional: 663461
-
Series/Model: 2911ZL
-
Fitting/Connector Type: Adapter
-
Nominal Size: 3/4 x 1/2 in
-
MPN: 79225
-
Brand: VIEGA
-
Test Pressure Rating: 600 PSI
-
Includes: EPDM Sealing Element
-
For Use with: ASTM B88 Tubing
-
Fitting Connection Type: Press x Male Pipe Thread
-
Tube Size: 3/4 in x 1/2 in
-
Pipe Size - Pipe Fitting: 3/4 in x 1/2 in
-
Max. Pressure: 200 psi
-
Temp. Range: 0 Degrees to 250 Degrees F
-
Tube Fitting Material: Bronze
-
Lead Free: Yes
-
Connection Type: Press x MIP
-
Maximum Operating Pressure: 200|PSI
-
Maximum Operating Temperature: 250 Degrees F
-
Minimum Operating Temperature: 0 Degrees F
-
O-Ring Material: EPDM
-
Copper Tube Size: 3/4 in
-
Fitting Pipe Size: 1/2 in
-
End Style: Press x MNPT
-
Product Sub-Type: Adapter Fitting
-
Product Type: Pipes/Valves/Fittings
-
Additional Information: Lead-Free; Test Pressure Rating 600 PSI; Includes EPDM Sealing Element; For Use with ASTM B88 Tubing
-
UNSPSC Code: 40183109
-
Size: 3/4" x 1/2"
-
Thread Type: Male
-
Domestic/Import: Import
-
Item: Adapter
-
Pipe Size: 1/2 in
-
Standards: ASTM B75, ASTM B88
-
Compliance: ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
-
Fitting Shape: Adapter
-
Overall Length: 1 15/16 in
-
Stop and Shape: Straight Adapter
-
Fitting Material: Bronze
-
End Connection Type: Press, Threaded
-
Pipe Size (Fittings): 3/4" x 1/2"
-
Specific Fitting Shape: Straight Adapter
-
Basic Pipe Fitting Shape: Adapter
-
Fitting Copper Tube Size: 3/4 in
-
Fitting Side B Pipe Size: 1/2 in
-
Basic Pipe Fitting Material: Metal
-
Specific Pipe Fitting Shape: Adapter
-
Pipe Fitting Connection Type: Press x Male Pipe Thread
-
Fitting Side A Connection Type: Press-Fit
-
Fitting Side B Connection Type: MNPT
-
Fitting Side A Copper Tube Size: 3/4 in
-
Country of Origin (subject to change): Germany
-
Selling Size: 3/4 x 1/2|in
-
Catalog Number: 79225
-
Special Features: Smart Connect Technology, Lead-Free
-
Specifications Met: ASME B16.51, CRN OA14541.5 A/B/C, CSA MSE-13, FM Class 1920, Florida Building Code, IAPMO Listed
-
Connector Type: Adapter
-
Exterior Finish: Bronze
