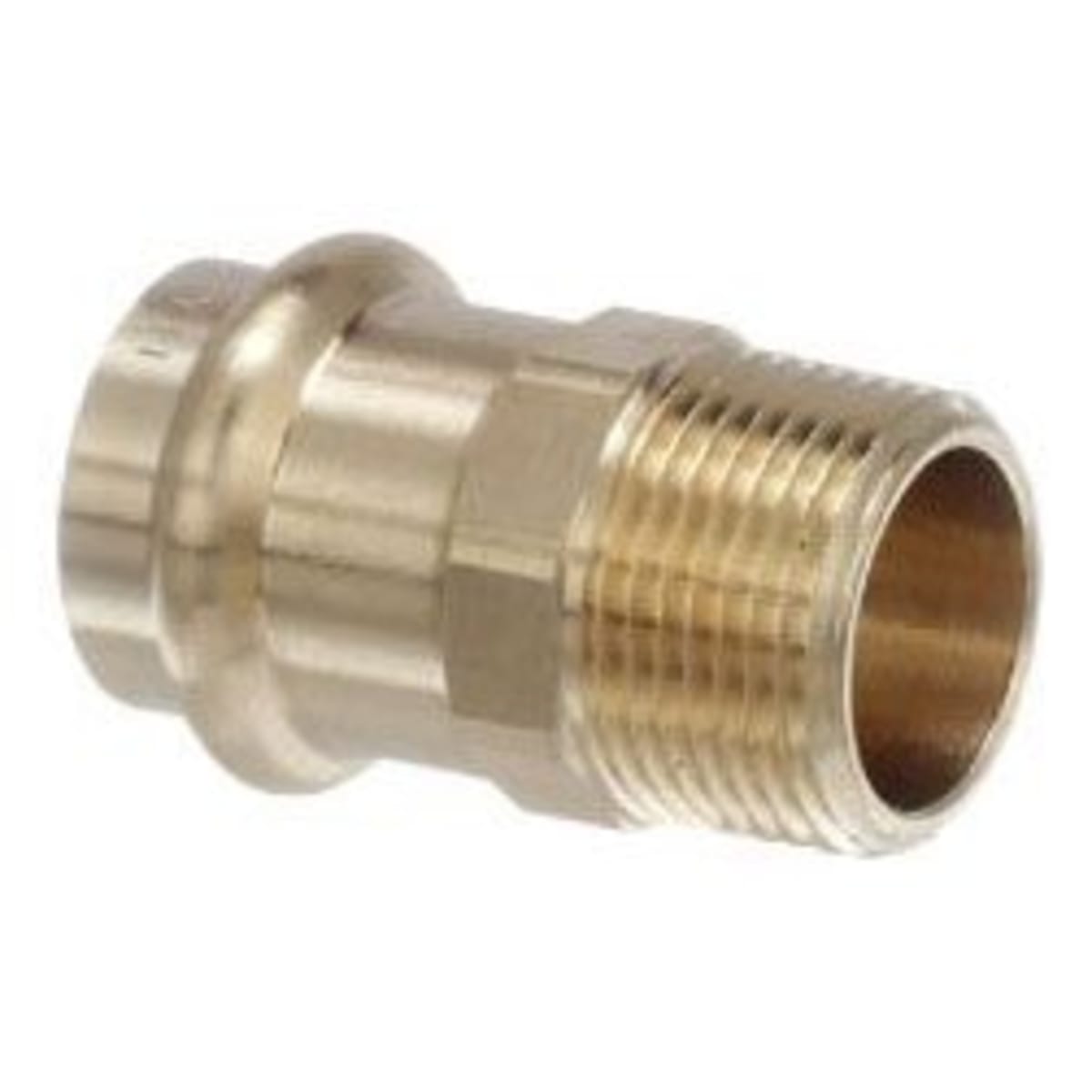

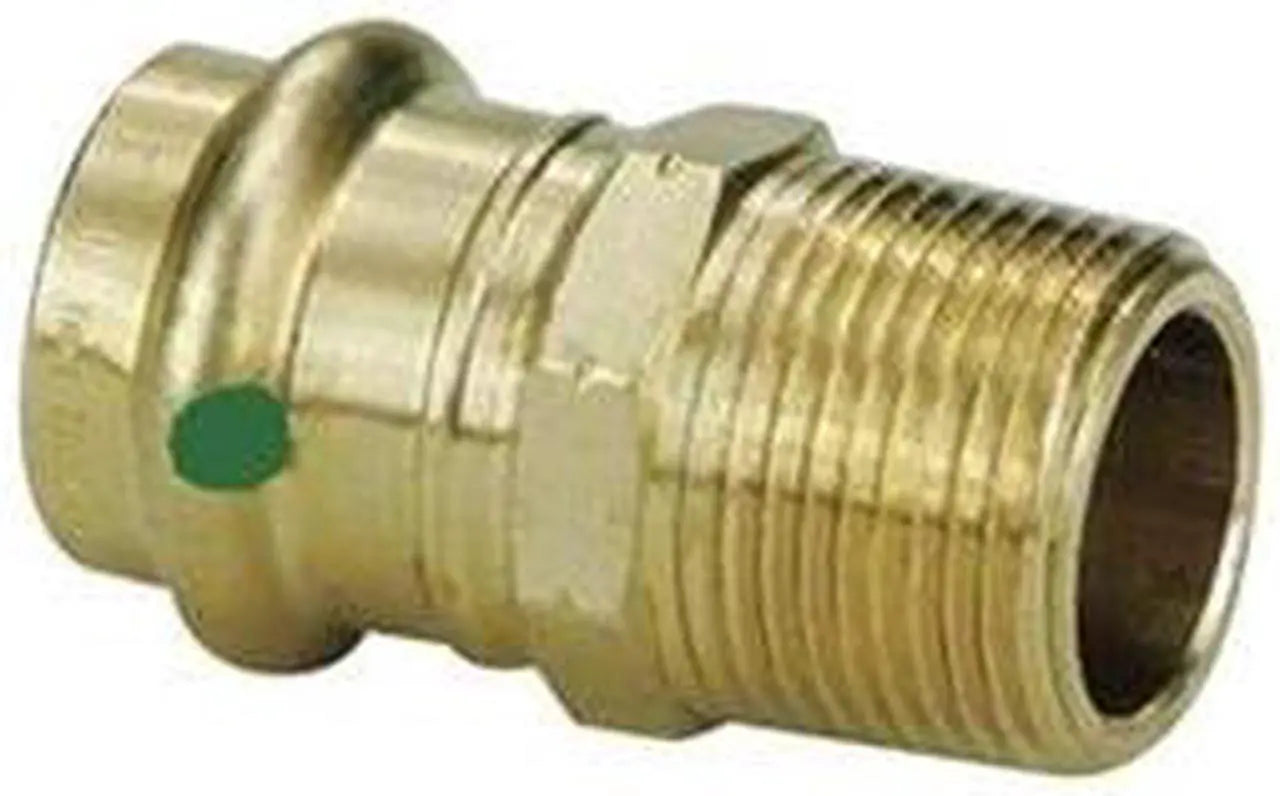

Viega 79210 ProPress Adapter 1/2 inches x 3/8 inches

Product Description

The VIEGA 79210 ProPress adapter is a reducing adapter fitting with a ProPress x Male Threaded end connection. Constructed from bronze, it is suitable for potable water, hydronic heating, chilled water, compressed air, and other applications. It includes an EPDM sealing element and is for use with ASTM B88 tubing.

• Reducing adapter fitting
• ProPress x Male Threaded end connection
• Lead-Free

Product Highlights

This Viega ProPress adapter ensures secure connections in plumbing applications, offering reliability and efficiency for various projects.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 79210

Technical Specifications

• Type: Reducing
• Size A: 1/2 Inch
• Size B: 3/8 Inch
• End Connection: ProPress x Male Threaded
• Material: Bronze
• Pressure Rating: 300 psi
• Temperature Rating: 0 to 250 deg F
• Application: Potable Water, Hydronic Heating with Glycol, Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
• Applicable Standard: UL, CSA MSE-13, ABS, UPC, NBCC, NPCC, CRN 0A14541.5 A/B/C, FM 1920, IAPMO PS117, ICC-ES PMG-1037, NSF/ANSI 61/61G/372, PHCC, ULC/ANSI ORD 213, NFPA 13/13D/13R, ICC LC 1002, ASME B16 .51
• Lead-Free: Yes
• Includes: EPDM Sealing Element
• For Use with: ASTM B88 Tubing
• Fitting Connection Type: Press x Male Pipe Thread
• Tube Size: 1/2 in x 3/8 in
• Pipe Size - Pipe Fitting: 1/2 in x 3/8 in
• Max. Pressure: 200 psi
• Temp. Range: 0 Degrees to 250 Degrees F
• Tube Fitting Material: Bronze
• Connection Type: Press x MPT
• Model Number: 2911ZL
• Product Type: Adapter
• Product Category: PVF
• Type of Material: Bronze
• Manufacturer Name: VIEGA
• Connection Size 1: 1/2 in
• Connection Size 2: 3/8 in
• Connection Type 1: Press
• Connection Type 2: MNPT
• Fitting Type: Adapter
• For Use With: Viega ProPress ASTM B88 and ASTM B75 Tubes
• Material Construction: Lead-Free Bronze
• Series: 2911ZL Series
