Product Description

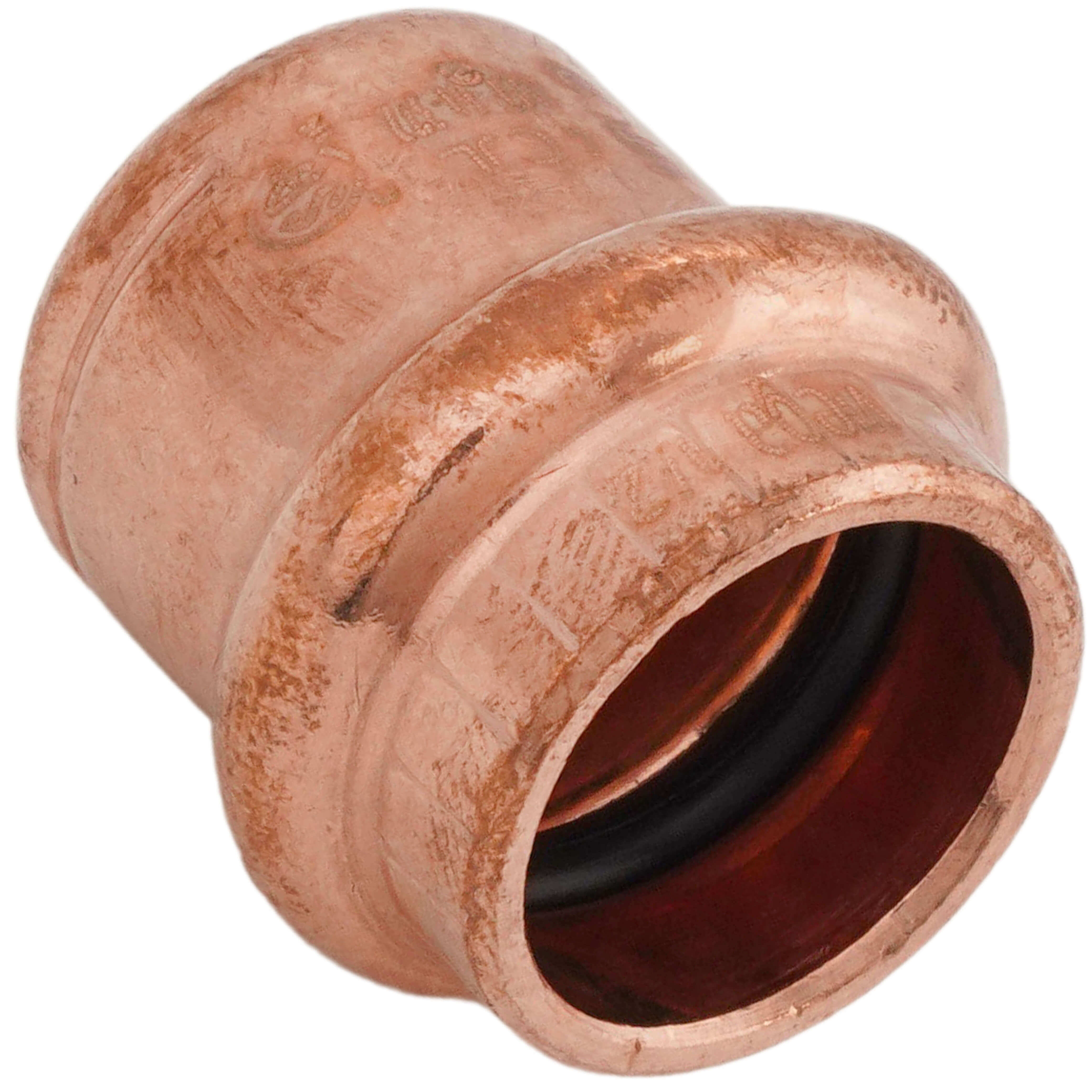

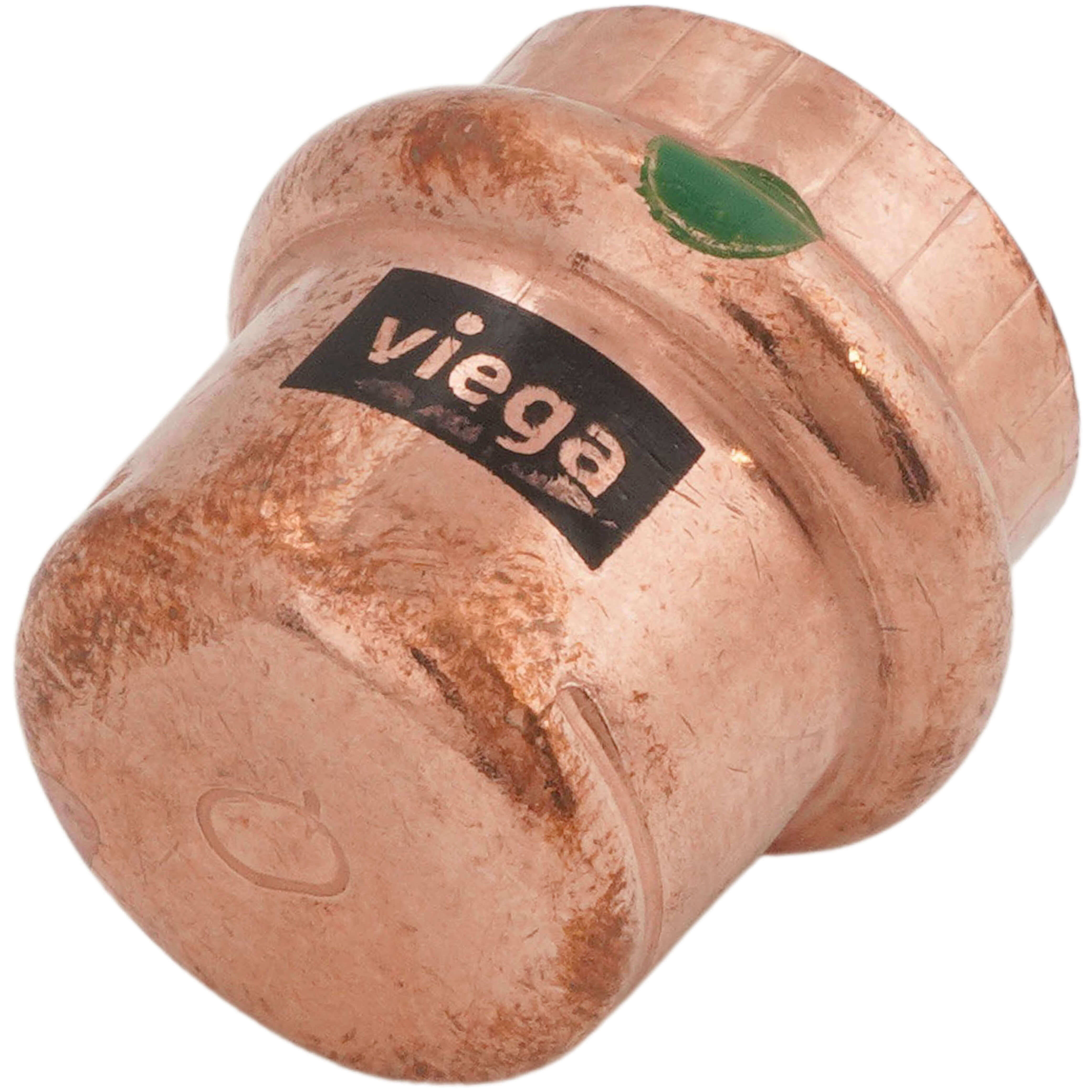

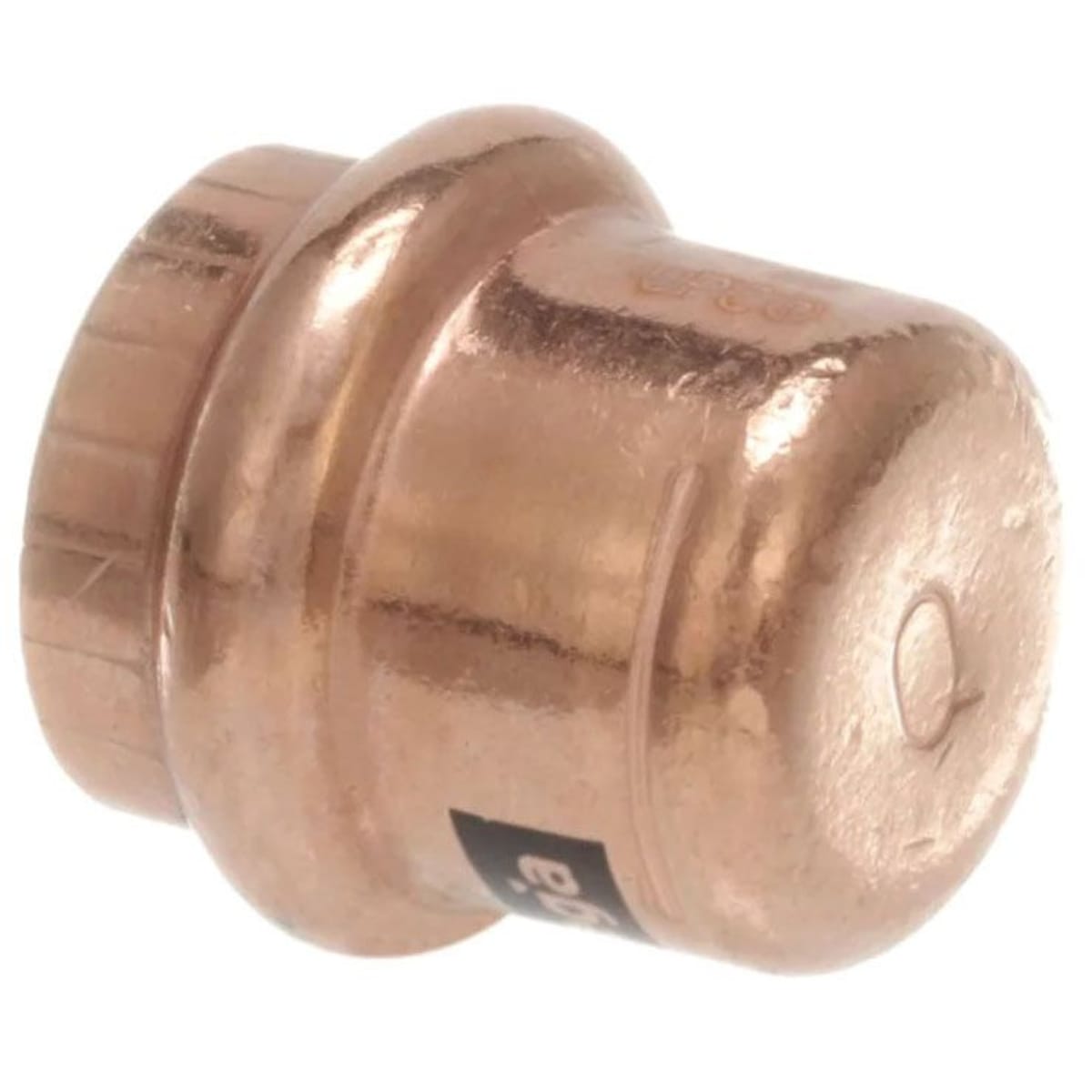

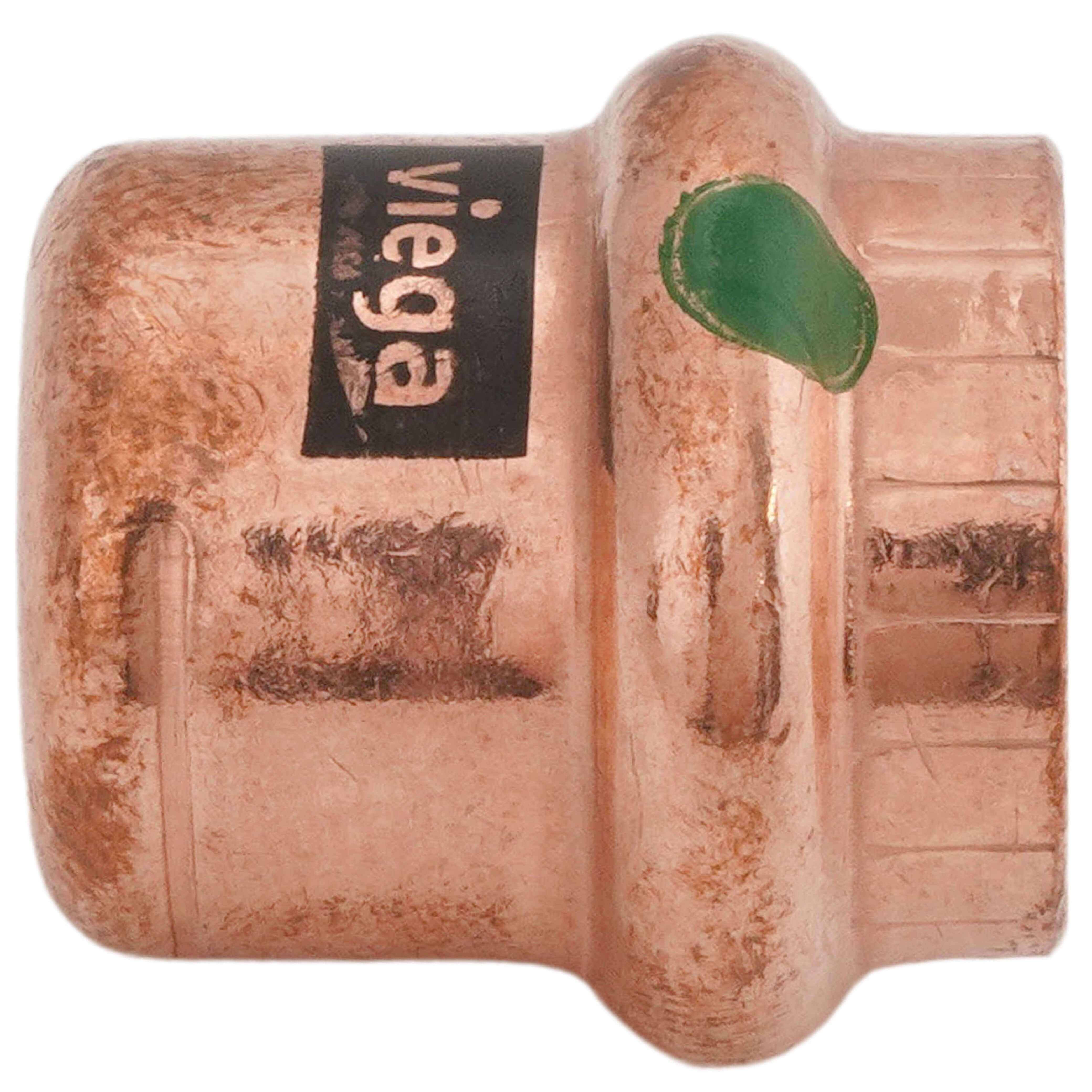

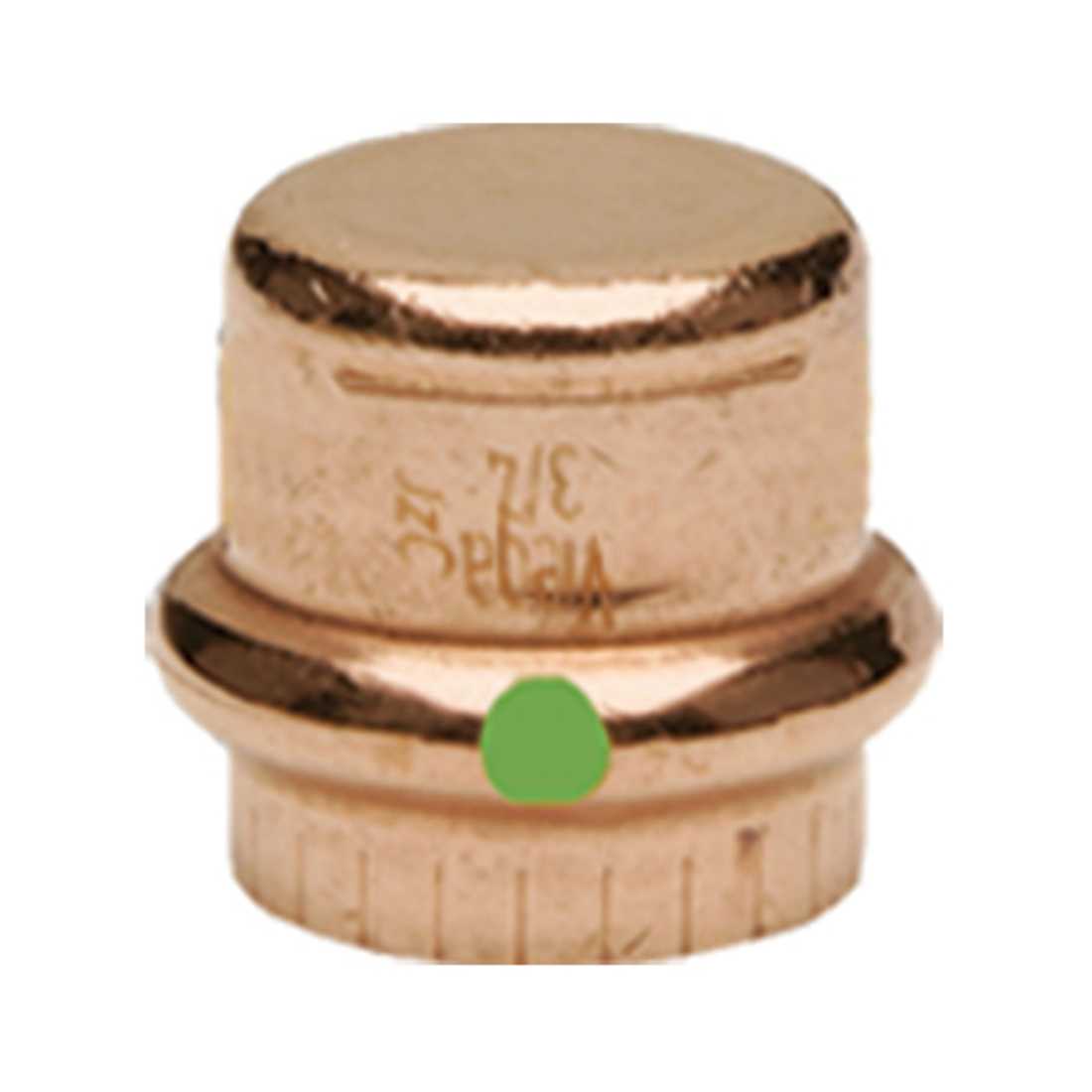

The VIEGA 77712 is a 1/2-inch copper ProPress cap designed to terminate copper tubing runs without soldering. It uses press-connect technology, allowing a licensed plumber to make a secure, leak-tested seal with a standard press tool in seconds. The Smart Connect feature leaves an intentional gap in the fitting sealing element, which causes an unpressed connection to leak during pressure testing rather than passing inspection undetected. This built-in verification mechanism is a key safety feature on commercial and residential plumbing installations where missed connections are a liability.
This cap is used wherever a copper water line must be permanently capped off, including dead-end branch lines, future-use stubs, pressure test terminations, and renovation work where sections of a system are being decommissioned. It is appropriate for residential and light commercial plumbing systems on both hot and cold water distribution lines. Installers working on remodel or retrofit projects find press-connect caps particularly useful in tight spaces where torch access is limited or prohibited by code.
Key Features
- Smart Connect technology allows unpressed fittings to weep during pressure testing, preventing missed connections from passing inspection
- Press-connect installation eliminates open-flame soldering, reducing fire risk and meeting no-torch requirements in many jurisdictions
- 1/2-inch copper construction for use on standard copper tubing
- Compatible with standard ProPress tooling used across plumbing trade
- Permanent cap termination suitable for potable water and general plumbing applications
Compatibility
Designed for use with 1/2-inch copper tubing in ProPress plumbing systems. Compatible with standard Viega ProPress press tooling and jaw sets rated for 1/2-inch copper fittings.
Installation Notes
Installation must be performed by a licensed plumber using a Viega-approved press tool with the correct jaw size for 1/2-inch copper. Shut off and depressurize the water supply line before fitting installation. Do not use an open flame or solder on this fitting. After pressing, conduct a pressure test to confirm all connections are fully pressed, using the Smart Connect leak-detection behavior as confirmation.
Technical Specifications
-
Size: 1/2 inch
-
Material: Copper
-
Connection Type: ProPress
-
Application: Plumbing
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 77712
