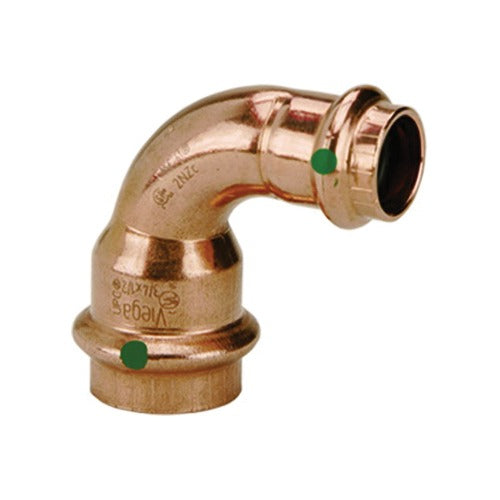

Viega 77325 90 Deg Reducing Elbow 3/4x1/2 in Press Copper

Product Description

The VIEGA 77325 is a 90-degree reducing elbow designed for use in copper press-fit piping systems. It transitions from a 3/4-inch nominal inlet to a 1/2-inch nominal outlet using a press end connection style, eliminating the need for open flame during installation. This fitting is used in potable water distribution, hydronic heating, and general plumbing applications. It is installed by licensed plumbers and pipefitters working on residential and light commercial systems where solderless copper connections are required or preferred.

This elbow is suited for residential and commercial plumbing installations where directional changes and pipe size reductions must occur in a single fitting. The press end style speeds up rough-in work in tight spaces and is commonly used in new construction and retrofit projects. It is appropriate for copper tubing systems following ASTM standards for water supply and heating distribution lines.

Key Features

• 90-degree elbow with built-in reduction from 3/4 inch to 1/2 inch nominal
• Press end connection style for flame-free, tool-based installation
• Copper construction for corrosion resistance and long service life in water systems
• Combines direction change and size reduction in a single fitting, reducing connection count
• Suitable for potable water, hydronic, and general plumbing applications

Compatibility

Designed as an OEM-style press-fit replacement fitting for copper tubing systems with 3/4-inch and 1/2-inch nominal pipe sizes using a press end connection style.

Installation Notes

Installation requires a calibrated press tool compatible with VIEGA press fittings and the appropriate jaw or ring for the fitting size. Shut off and depressurize the water supply before cutting and joining pipe. Follow local plumbing codes and IPC guidelines for press-fit copper connections. Do not attempt to press a fitting while the system is under pressure or flow.

Technical Specifications

• Nominal Size: 3/4 x 1/2 inches
• Connection Style: Press End
• Material: Copper
• Configuration: 90 Degree Reducing Elbow

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 77325
