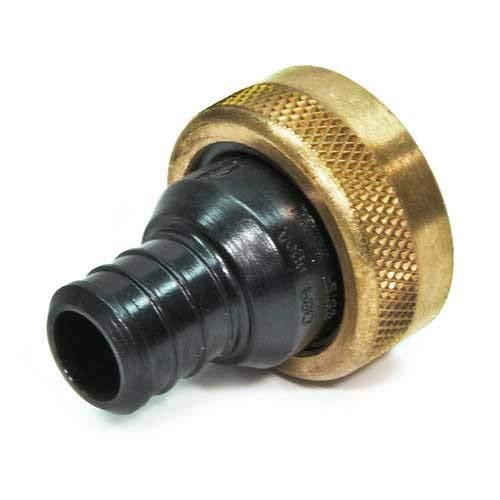

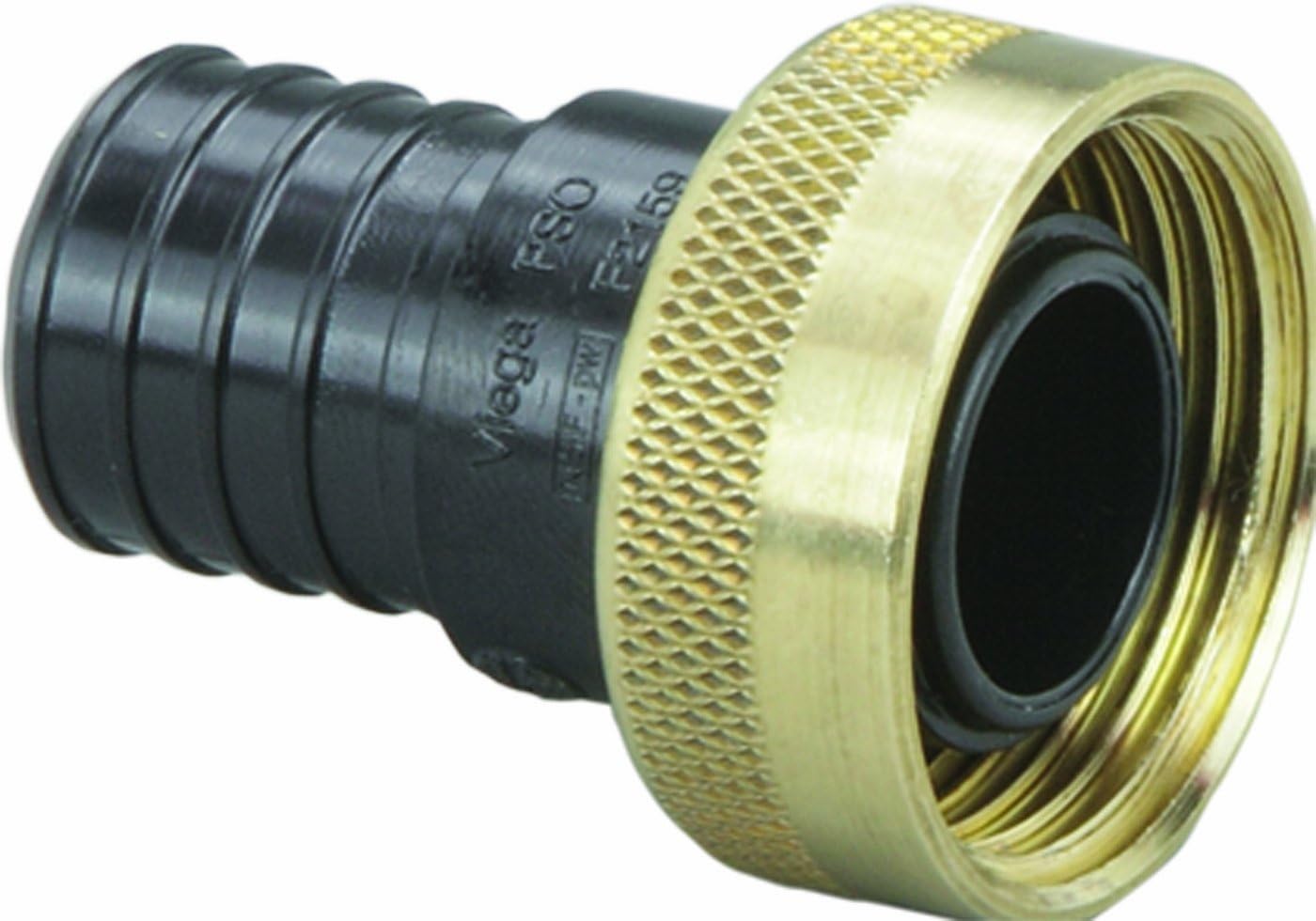

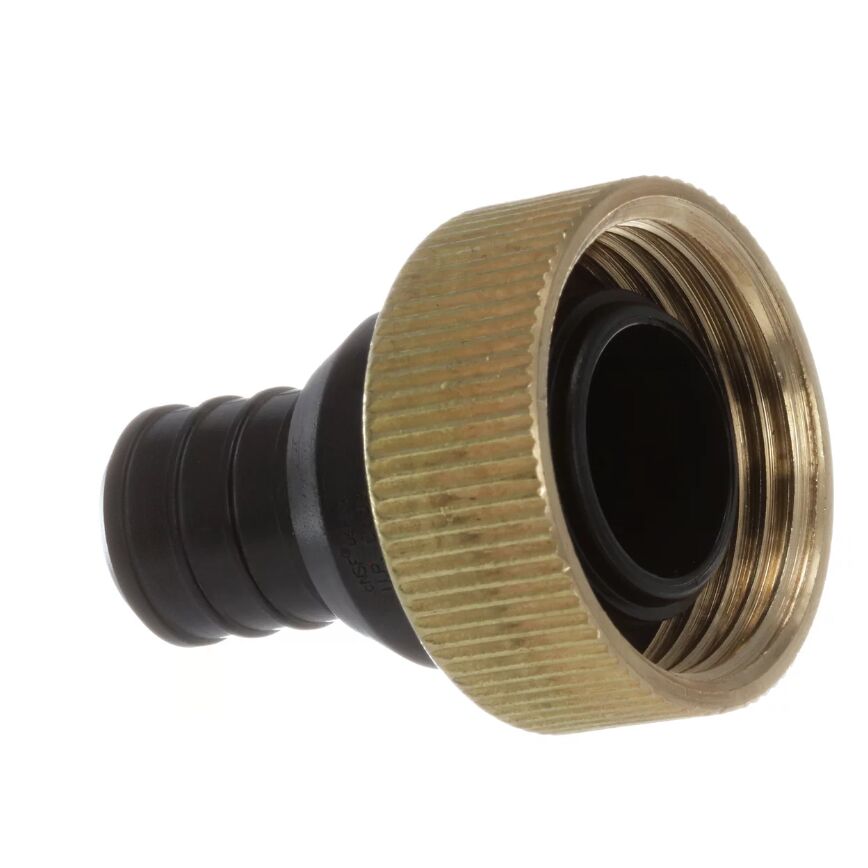

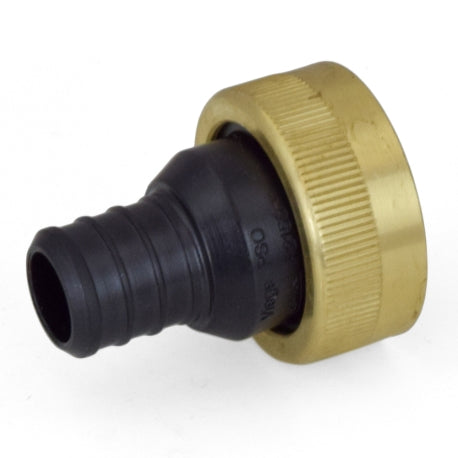

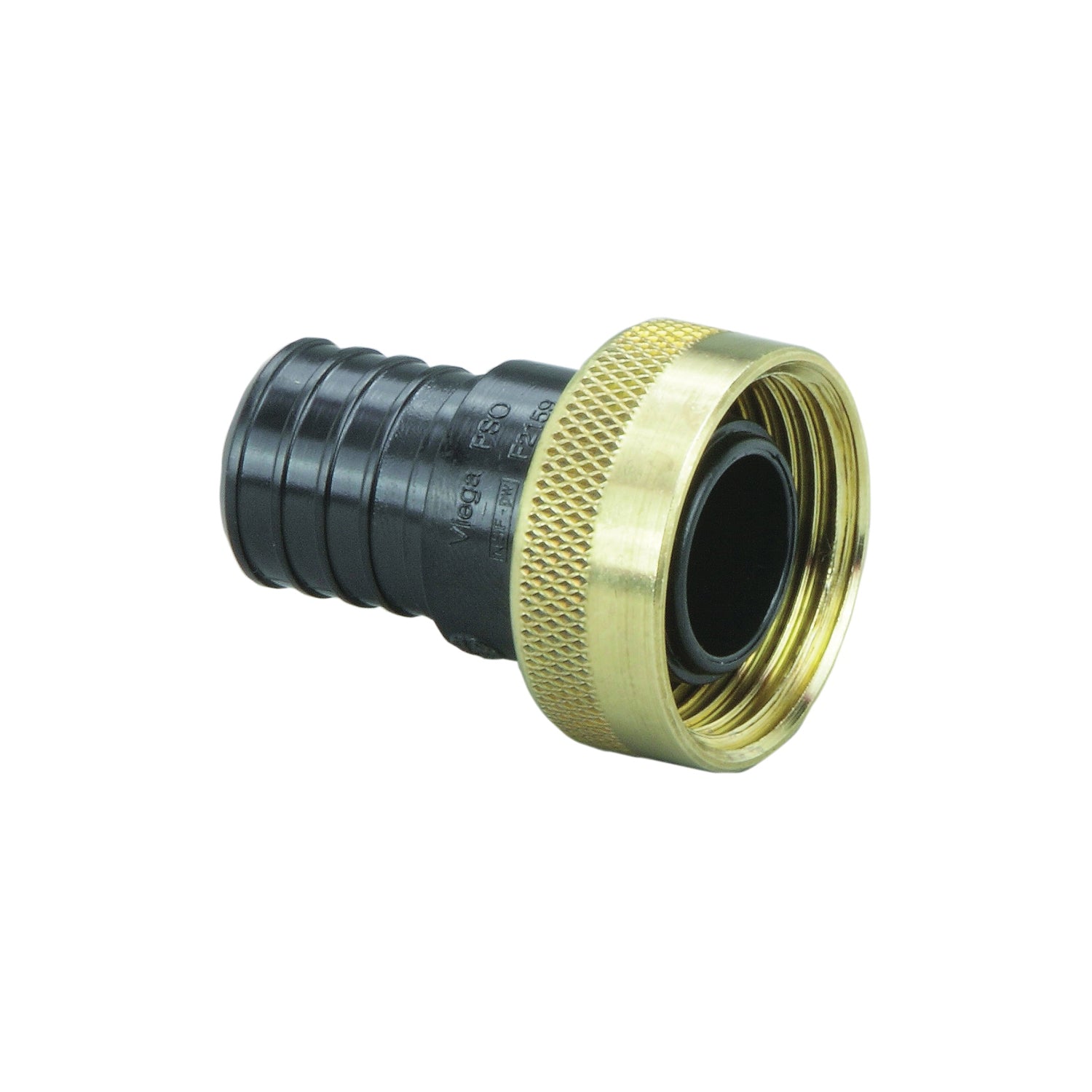

Viega 50141 Adapter Fitting 3/4 Inch x 1 Inch

Product Description

The VIEGA 50141 adapter fitting connects supply lines to ManaBloc and MiniBloc. It is suitable for commercial, residential, plumbing, radiant heating, and potable water systems. The adapter fitting has a size A of 3/4 Inch and size B of 1 Inch. It has a pressure rating of 160 PSI and a temperature rating of 200 Deg F.

• Lead-Free
• Made in USA
• Easy and fast to install

Product Highlights

The VIEGA adapter fitting is easy to install and provides excellent chlorine and corrosion resistance. It connects supply lines to ManaBloc and MiniBloc.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 50141
• Country of Origin: Domestic

Technical Specifications

• Applicable Standard: UL 263/1821, CSA B137.5, CAN/ULC S101/S102.2, IAPMO, ICC, NSF/ANSI 14/61/61G, ASTM F876/F877/F1807/F2159, ICC ES PMG 1038
• Application: Commercial, Residential, Plumbing, Radiant Heating, Potable Water System
• Brand Name: PureFlow, PEX Crimp
• CATALOG NUMBER: 50141
• End Connection: PEX Crimp x ManaBloc
• Manufacturer Part Number Additional: 799971
• Material: Polyalloy
• Pressure Rating: 160 psi
• Product Sub-Type: Adapter Fitting
• Product Type: Pipes/Valves/Fittings
• Series: Model V5213
• Size A: 3/4 Inch
• Size B: 1 Inch
• Temperature Rating: 200 Deg F
• Fitting Type: Adapter
• Sub Brand: PureFlow
• Size: 3/4 inch x 1 inch
• Supply Connection: Crimp
• Connection Type: Crimp
• Standards/Approvals: ASTM F-2159, ASTM F-877, CSA B137.5, NSF 61 Annex G, Lead Law Compliant
• Domestic/Import: Domestic
• End Style: PEX Crimp x ManaBloc Supply
• Fitting/Connector Type: Adapter
• Nominal Size: 3/4 x 1 in
