Product Description

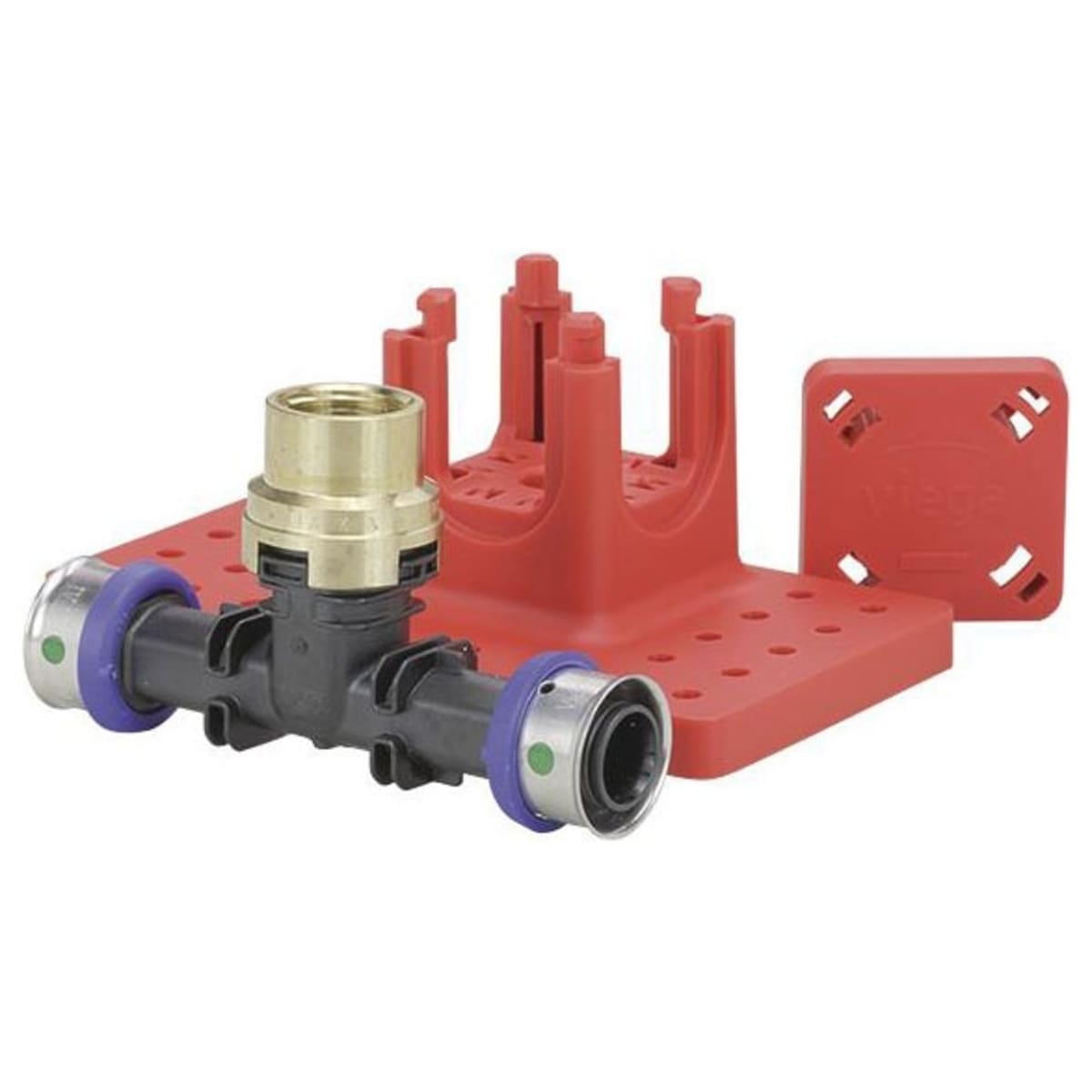

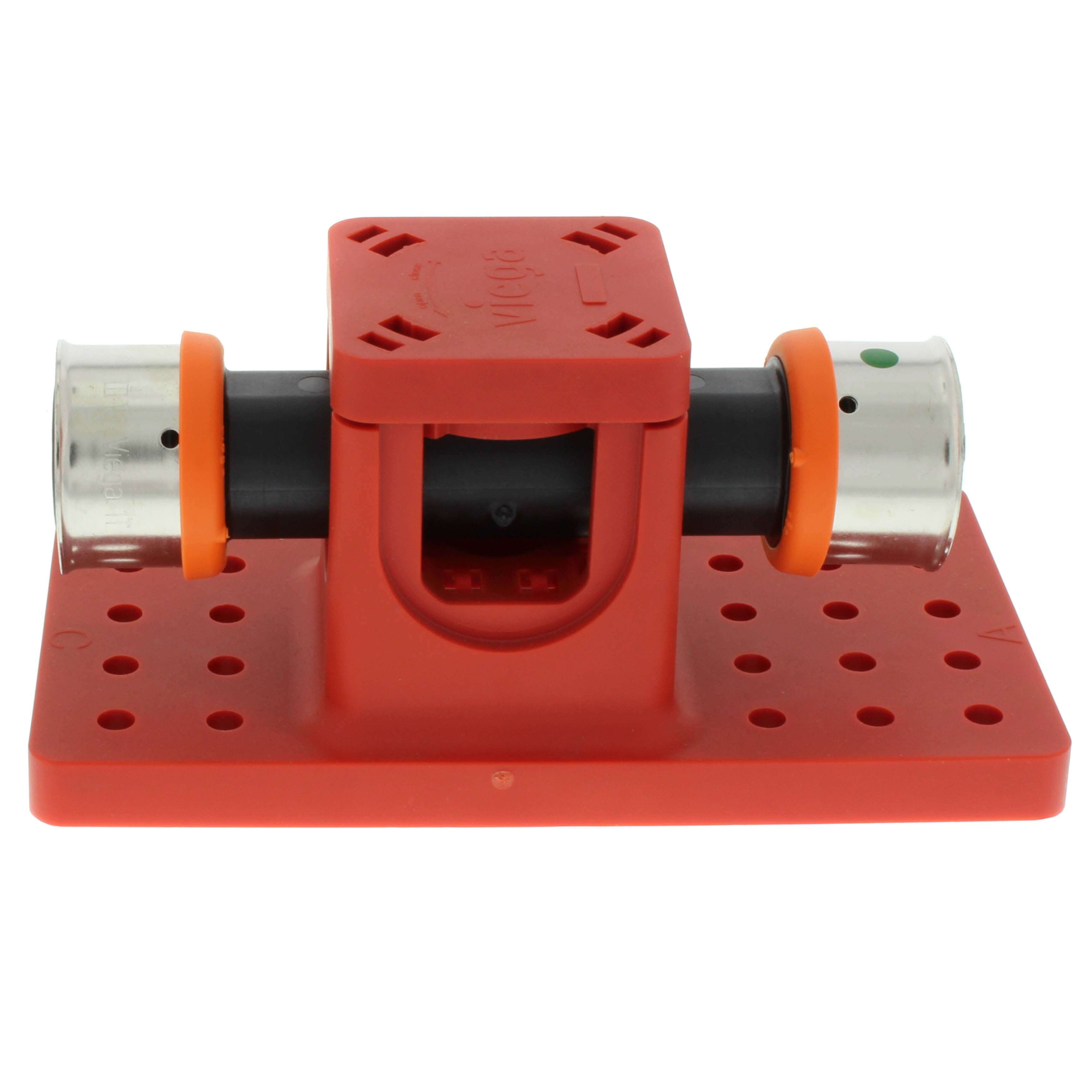

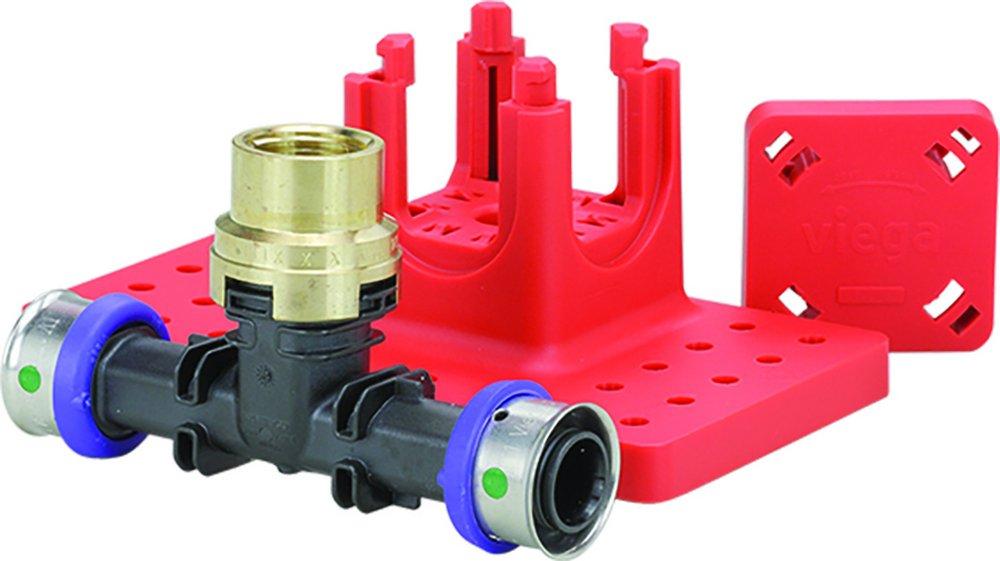

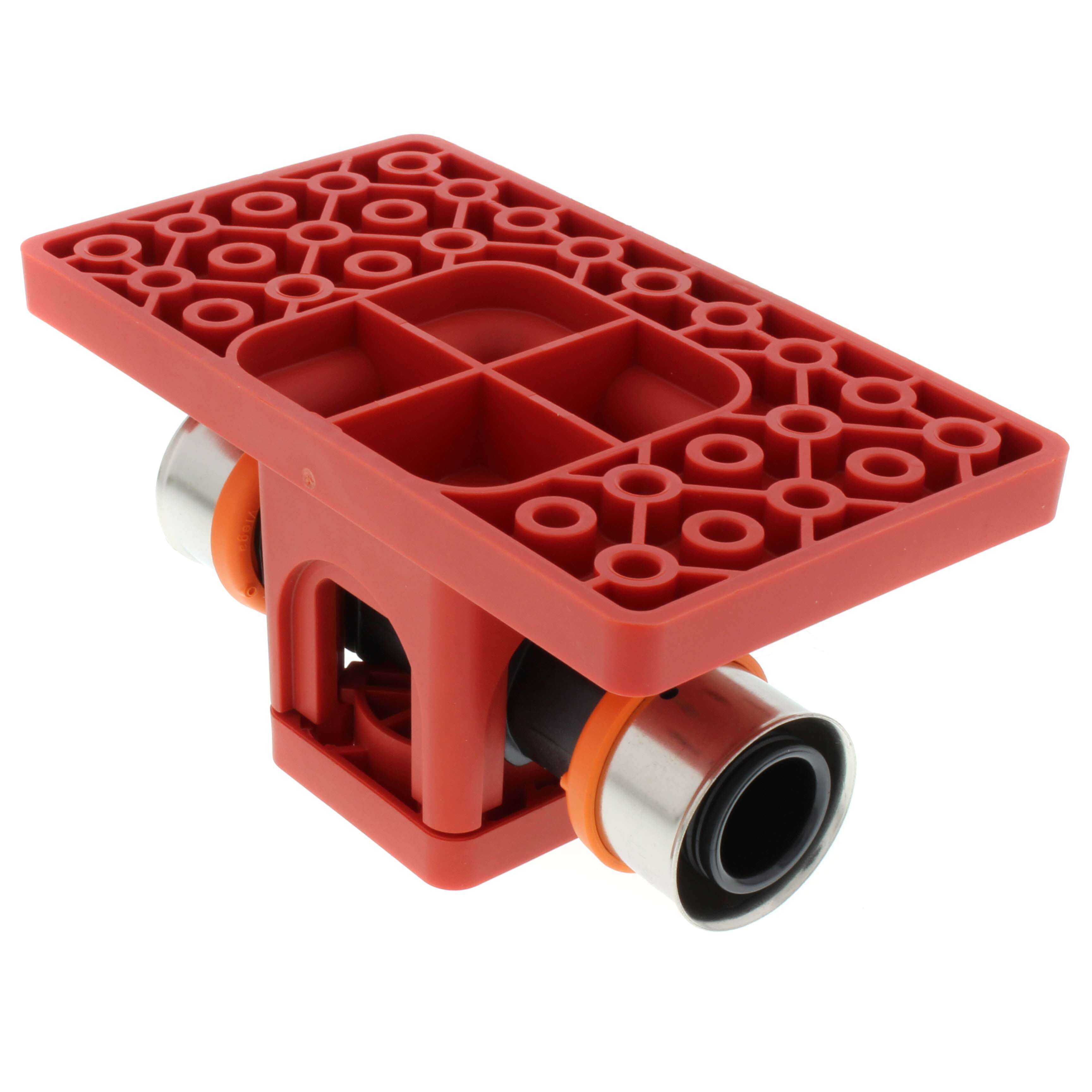

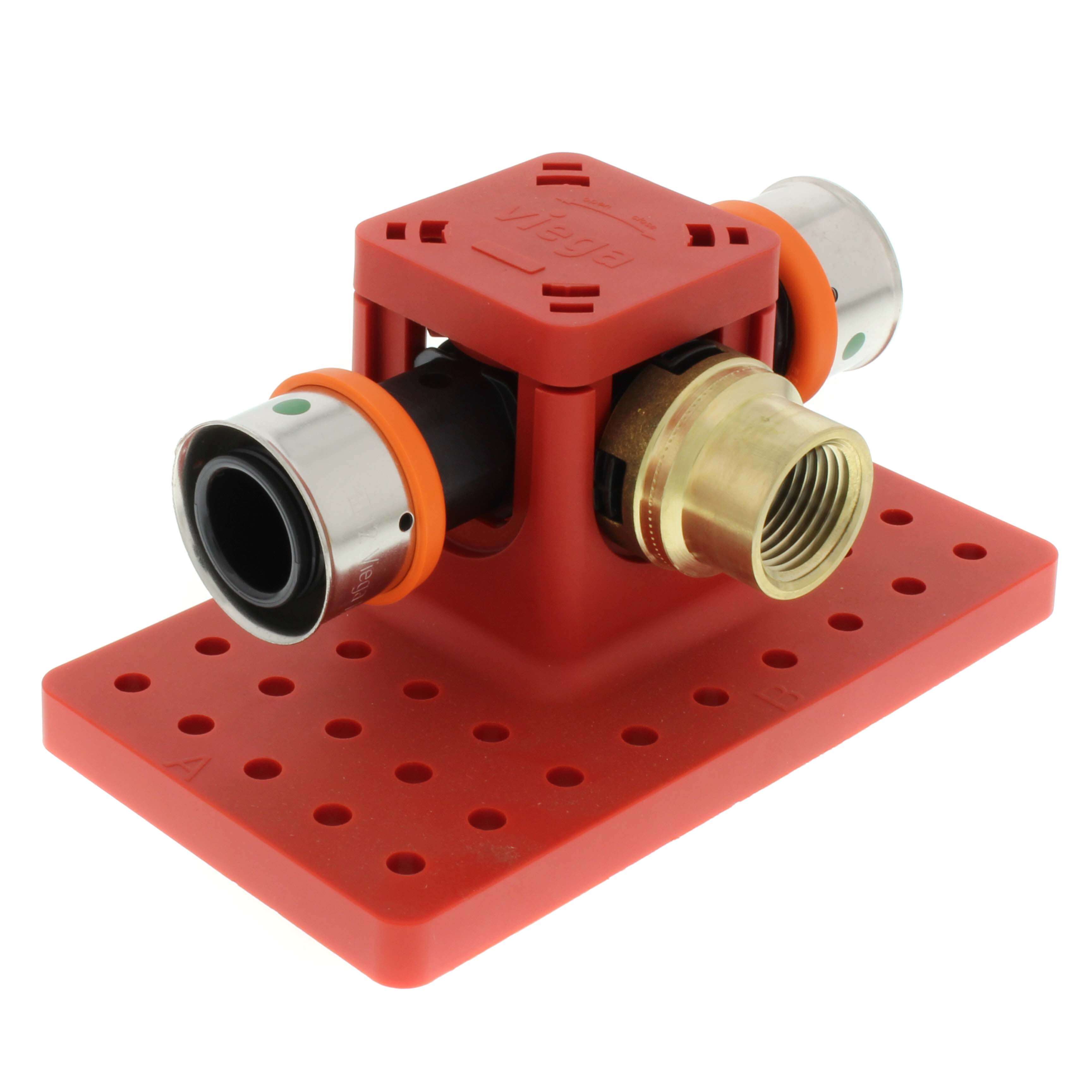

The VIEGA 49140 PureFlow Press Tee P1: 1; P2: 1; FPT: 1/2. It is suitable for Viega PureFlow PEX tubing Model V5009.1, V5009.5, V5009.51 and for fire sprinkler systems. This tee fitting has a press connection and a female pipe thread. Includes Mounting bracket.
- Suitable for Viega PureFlow PEX tubing Model V5009.1, V5009.5, V5009.51
- For fire sprinkler systems
- Includes Mounting bracket
Product Highlights
The VIEGA 49140 PureFlow Press Tee is easy and fast to install and resistant to corrosion.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 49140
-
Country of Origin: Import
Technical Specifications
-
Material: Polymer
-
Connection Type: Press connection, female pipe thread
-
Suitable for: Viega PureFlow PEX tubing Model V5009.1, V5009.5, V5009.51
-
Application: For fire sprinkler systems
-
Features: Includes Mounting bracket
-
End Style: Press x Press x FNPT
-
Fitting/Connector Type: Tee
-
Nominal Size: 1 x 1 x 1/2 in
-
Pressure Rating: 160 psi
-
Series: PureFlow
-
Temperature Rating: 180 deg F Potable/200 deg F Hydronic
-
Category: TEE
-
Brand: Viega
-
ANSI: ANSI 372
-
ASTM: ASTM F-877
-
CSA Certified: CSA B137.5
-
Clean Bagged: No
-
Collection: PureFlow
-
End Connection 1: Press
-
End Connection 2: Press
-
End Connection 3: FPT
-
End Connections: Press x Press x FPT
-
FM Approved: No
-
Fitting Size 1: 1
-
Fitting Size 2: 1
-
Fitting Size 3: 1/2
-
Fitting Sizes: 1 in x 1 in x 1/2 in
-
Fitting Type: Reducing, Tee
-
IAPMO Listed: No
-
Lead Law Compliance Level: Lead Free Not Certified, Approved for Non-Potable Water Applications
-
Lead Law Compliant: Yes
-
Material Type: Polymer
-
Maximum Temperature: 180
-
NSF: NSF 61-G
-
NSF Certified: Yes
-
Origin: Global
-
Pressure - Maximum: 160 psi
-
UPC: 691514491400
-
Shape: Tee
-
P1 Size: 1
-
P1 Connection: Press
-
P2 Size: 1
-
P2 Connection: Press
-
P3 Size: 1/2
-
P3 Connection: Female Pipe Thread
