Viega 44360 Pex Crimp Press Transition Coupling 3/4x1/2

Product Description

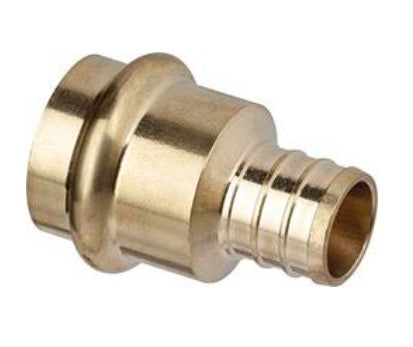

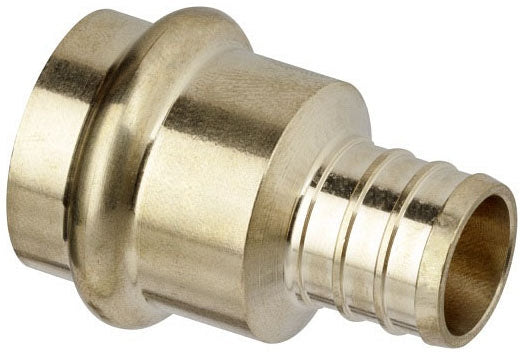

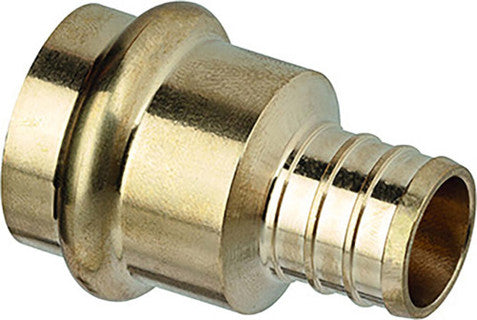

The VIEGA 44360 is a transition coupling that connects a 3/4-inch PEX crimp connection to a 1/2-inch press connection in a single fitting. It allows plumbers to join PEX tubing systems with press-style copper or press-compatible piping without additional adapters. The 3/4-inch crimp end accepts standard PEX crimp rings, while the 1/2-inch press end is designed for tool-actuated press-fit joining. This fitting is used in new construction and retrofit plumbing work where two different connection methods meet in the same run.

This coupling is suited for residential and light commercial plumbing installations where a PEX distribution system transitions to a press-fit branch or riser. It is commonly installed by licensed plumbers working on domestic hot and cold water supply systems. The fitting is useful in situations where a larger PEX main feed steps down to a smaller press-fit supply line, combining the flexibility of PEX with the speed of press-fit connections.

Key Features

• Transitions from 3/4-inch PEX crimp to 1/2-inch press connection in one fitting
• Eliminates the need for separate adapters when joining PEX and press-fit systems
• Compatible with standard PEX crimp rings on the 3/4-inch end
• Press end designed for tool-actuated press-fit joining for fast, solder-free installation
• Compact design suited for tight spaces in residential and light commercial plumbing

Compatibility

Designed as an OEM-style transition fitting for plumbing systems that combine PEX crimp and press-fit connection methods in 3/4-inch by 1/2-inch configurations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the water supply before beginning work. The crimp end requires a calibrated PEX crimp tool and appropriate crimp rings; the press end requires a compatible press tool. Do not over-crimp or attempt the press connection without the correct jaw size for the fitting diameter.

Technical Specifications

• Crimp End Size: 3/4 inches
• Press End Size: 1/2 inches
• Connection Type: PEX Crimp x Press
• UPC: 691514443607

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 44360
