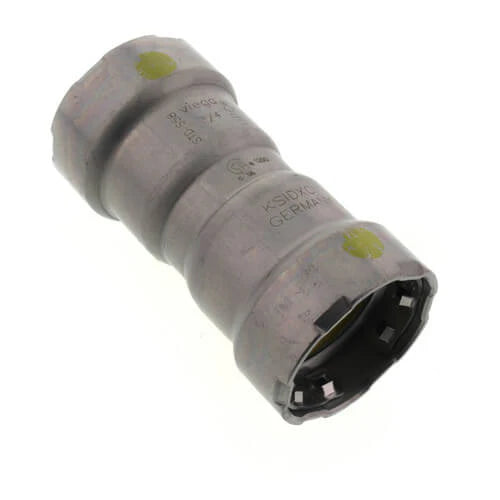

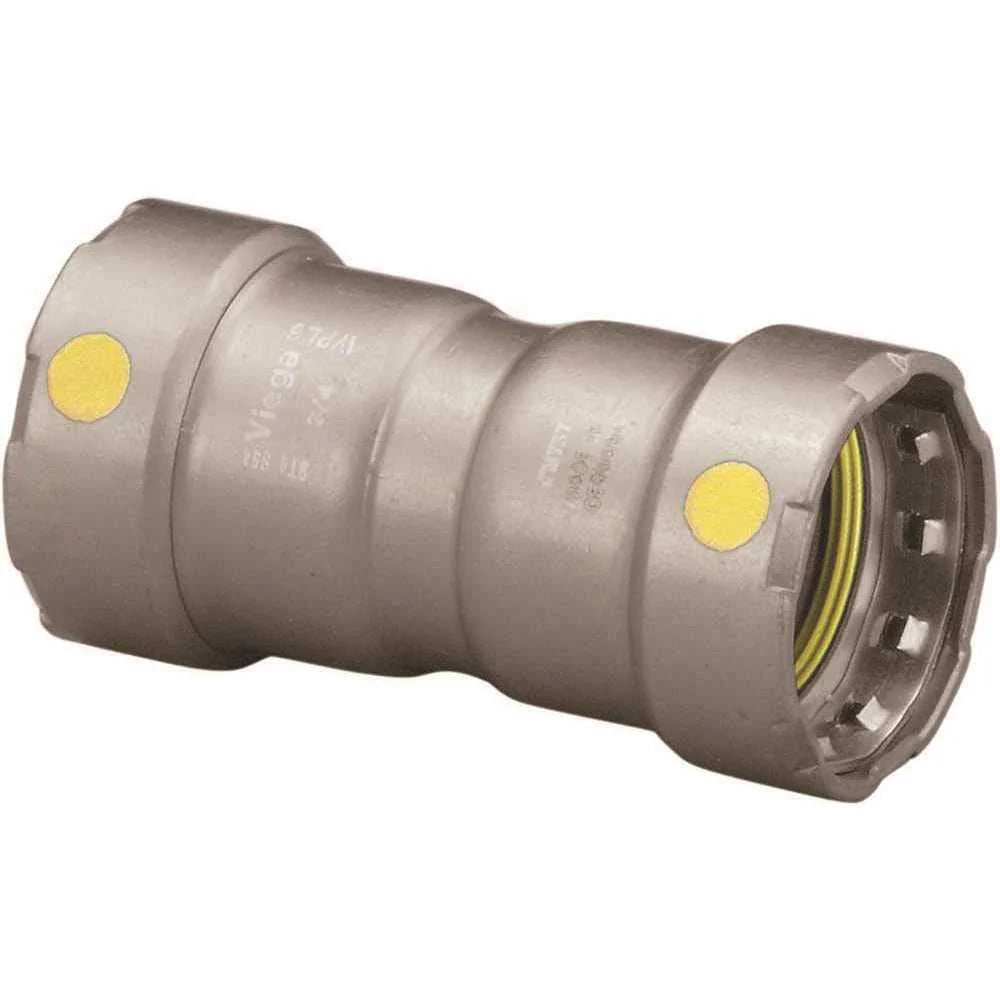

Viega 22009 MegaPressG Coupling with Stop 3/4 inch Press Connection

Product Description

Introducing the Viega MegaPressG 22009 coupling, a robust carbon steel fitting designed for secure and efficient pipe connections. This coupling features a press connection system that simplifies installation by eliminating the need for flame, solder, or heavy equipment.

• Quick and secure press-fit technology for 3/4 inch pipe connections.
• Zinc-nickel coating for corrosion resistance and extended life.
• Suitable for use with air, natural gas, and fuel oil systems.

Product Highlights

The Viega MegaPressG coupling is engineered to withstand the rigors of industrial environments, featuring a maximum operating pressure of 200 psi and temperature ratings from minus 40 degrees Fahrenheit to 180 degrees Fahrenheit. Its innovative design includes a Smart Connect feature that ensures reliable installations by identifying unpressed connections.

Product Information

Standard Information

• Brand: Viega
• MPN: 22009

Technical Specifications

• Material: Carbon Steel, EPDM
• Connection Type: Press x Press
• Size: 3/4 inch x 3/4 inch
• Pressure Rating: 200 psi
• Temperature Rating: 250 degrees Celsius
• Compliance: ABS, ANSI LC4/CSA 6.32, ASME B31.1
