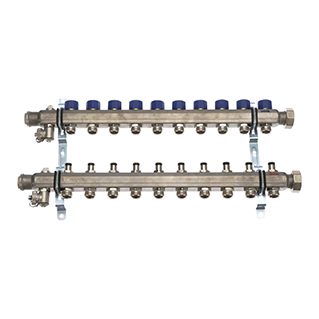

Viega 16408 Manifold 10 Outlets (1-1/4 Union x 1 FPT)

Product Description

Viega 16408 is a preassembled manifold with 10 outlets featuring a 1-1/4 inch union and a 1 inch female pipe thread (FPT) connection. Constructed of 304 stainless steel for hydronic heating and cooling applications, it includes factory-installed air bleeder, purge valve, and supply shutoff balancing valve. The unit accepts 1 inch FNPT inlets, mounts to a bracket, and is rated to 100 PSI and up to 180°F for radiant and snow-melt systems.

• Ten outlets with 1-1/4 in union outlets and 1 in FPT connections; 1 in FNPT inlet noted.
• 304 stainless steel construction; preassembled with mounting bracket and compact spacing.
• Includes air bleeder (2878.914), purge valve (2878.915), supply shutoff balancing valve (2878.924); rated 100 PSI, max 180°F.

Product Highlights

Preassembled 10-outlet 304 stainless manifold for hydronic heating and cooling with 1-1/4 in union outlets, factory-installed air bleeder/purge/shutoff balancing valves, 100 PSI rating.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 16408
• Country of Origin: Import

Technical Specifications

• Brand: Viega
• MPN: 16408
• Model: V-16408
• Assembly Model / Reference: 2879
• Number of Outlets: 10
• Inlet Size: 1 in FNPT
• Outlet Size: 1-1/4 in Union
• Union Size: 1-1/4 in
• FPT Size: 1 in
• Material: 304 Stainless Steel
• Pressure Rating: 100 PSI
• Maximum Temperature: 180 F
• Includes: Air bleeder (2878.914), purge valve (2878.915), supply shutoff balancing valve (2878.924), mounting bracket
• Preassembled: Yes
• Application: Hydronic heating, cooling and snow-melt systems
• Maximum Flow: Up to 2 GPM per circuit; maximum 18 GPM per manifold
• Weight: 11.421 lb
• Ports: 10
• Connection Type: Union x Female Threaded
• UPC: 691514164083
