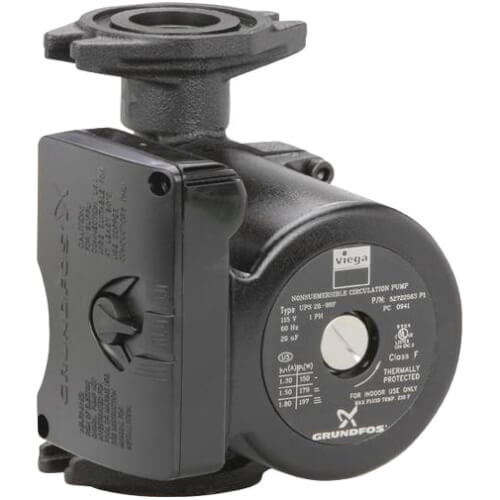

Viega 12127 3-Speed High Head Circulator Pump

Product Description

Viega 12127 is a 3-speed high head circulator pump designed for residential and light commercial applications. It features a wet rotor and direct drive system. This product is suitable for use in primary and secondary loop systems, ensuring efficient circulation. It operates quietly and requires no maintenance, making it ideal for various heating systems.

• Available in two variations: low head and high head
• Simple wiring with plug-in quick connect terminals
• Can be used as either primary or secondary loop circulator

Product Highlights

An effective solution for zoning with a maximum head of thirty feet and fluid temperatures ranging from thirty-six to two hundred thirty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Viega
• Application: Zoning

Technical Specifications

• Type: 3-Speed Pump
• Motor: 2 Pole, Single Phase
• Max Head: 30 feet
• Min Fluid Temp: 36 degrees Fahrenheit
• Max Fluid Temp: 230 degrees Fahrenheit
• Flow Range: 0-34 GPM
• Max Working Pressure: 145 PSI
• Shipping Dimensions: 6.45 inches (Depth) x 6.2 inches (Width) x 5.3 inches (Height)
