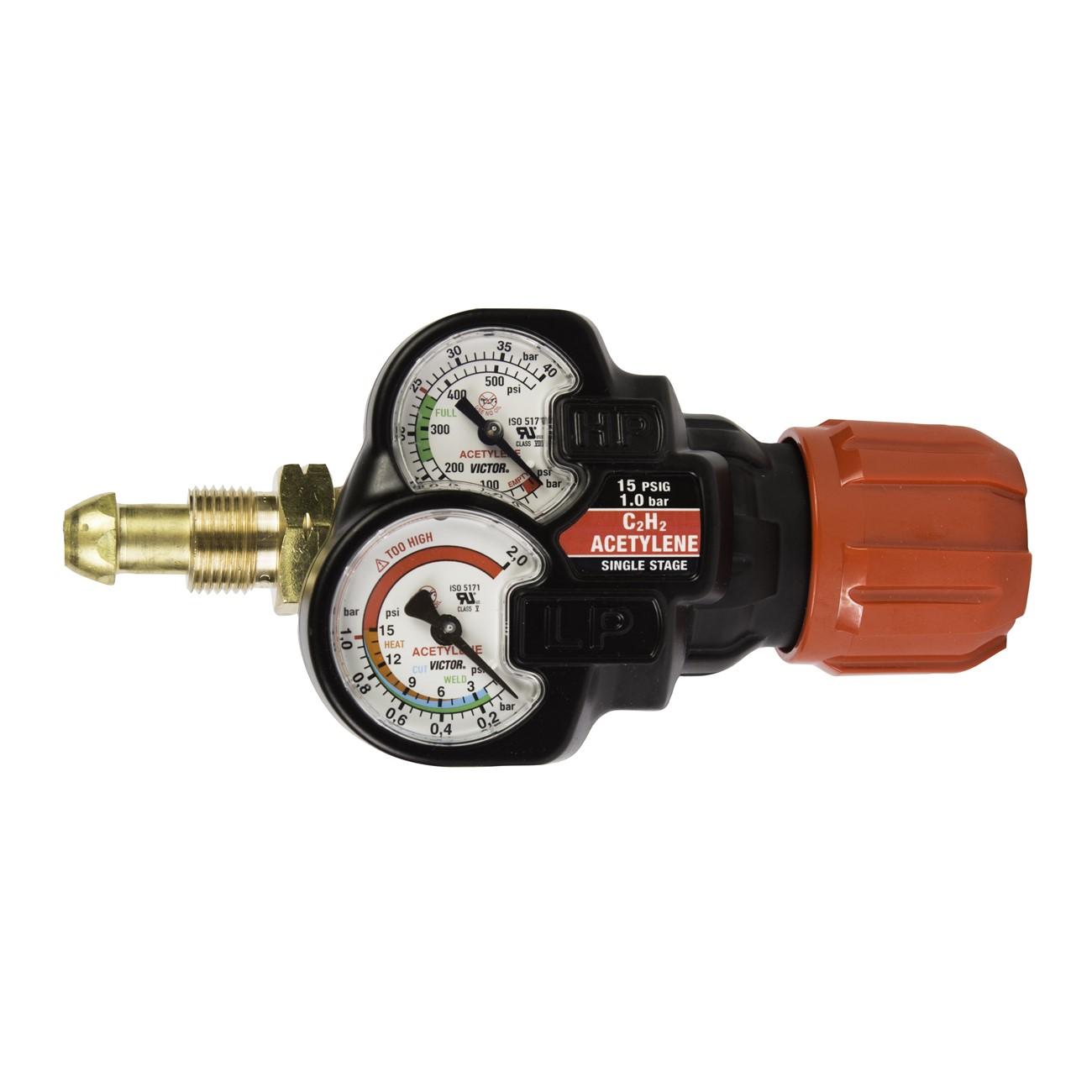

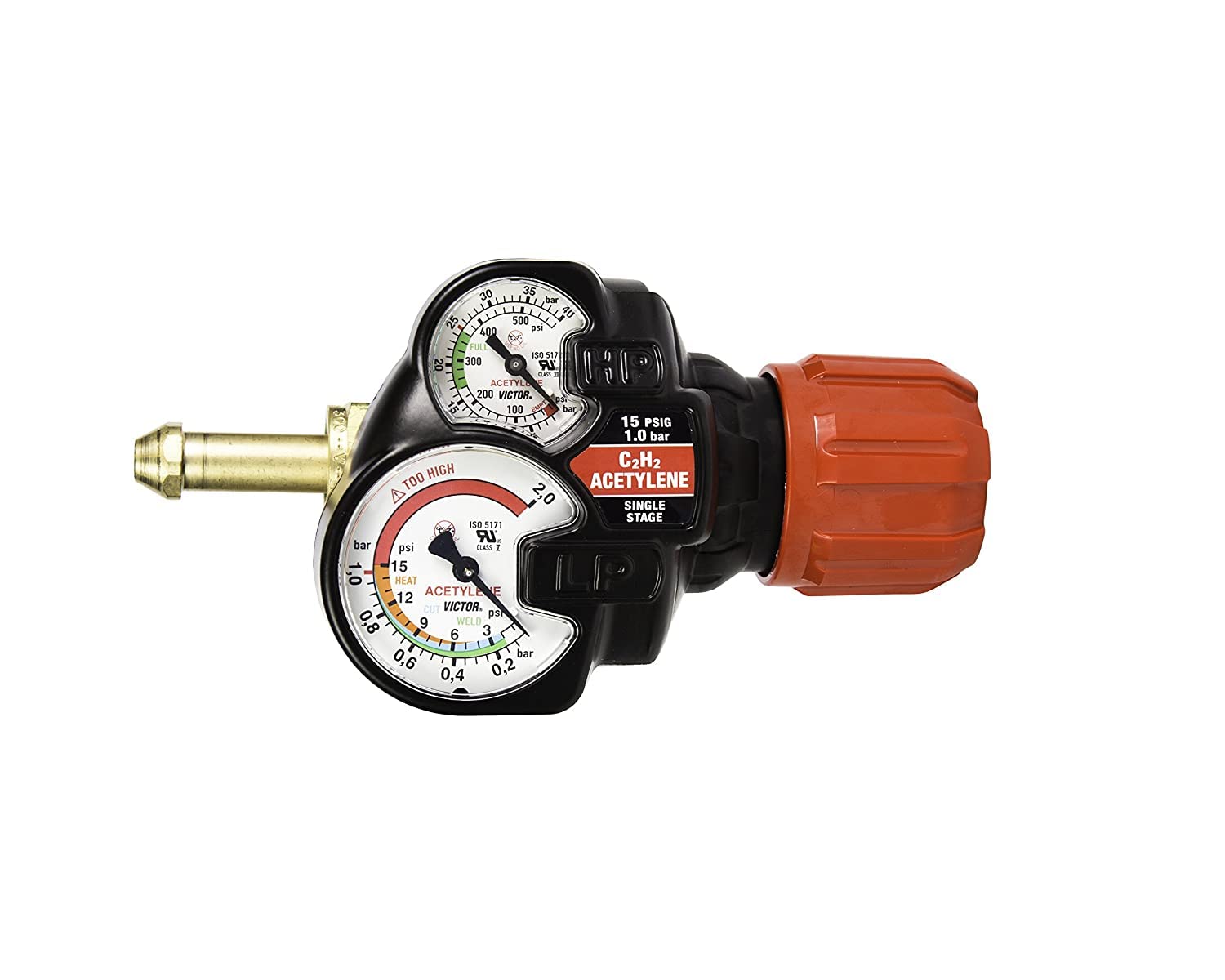

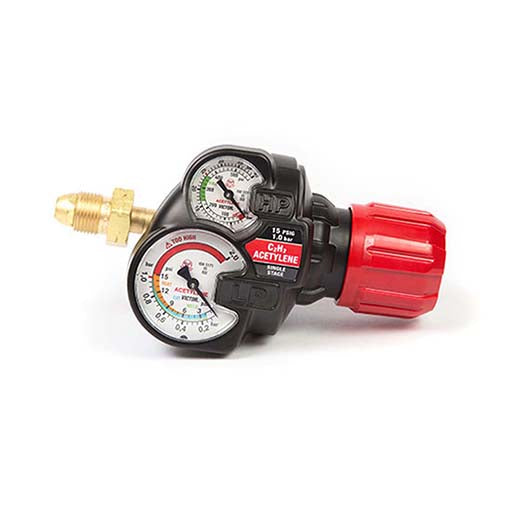

Victor 0781-3603 regulator, heavy-duty, high capacity, single stage

Product Description

The Victor 0781-3603 EDGE™ Series 2.0 patented Acetylene regulator is a second-generation, heavy-duty, high-capacity single-stage cylinder regulator. It offers a range of 2-15 psig. The regulator features improved gauge designs with a larger faced delivery gauge and enhanced color-coded knob designs for comfortable operation. It is designed for oxy-fuel cutting, heating, and welding applications.

• Heavy-Duty
• High Capacity
• Single Stage

Product Highlights

This Victor regulator is ideal for controlling pressure from high-pressure cylinders to torches in oxy-fuel applications.

Product Information

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0781-3603
• Country of Origin: Mexico

Technical Specifications

• MPN: 0781-3603
• Brand: Victor
• Gas Type: Acetylene
• Inlet Connection: CGA-300
• Outlet Type: 9/16-18 (RH Male)
• Number of Stages: Single Stage
• Type: Heavy-Duty; High Capacity
• Item Model Number: 0781-3603
• Series: EDGE 2.0
• Stages: Single Stage
• Delivery: 15 psi
• Body Dia.: 3.64 in
• Standards: Listed to UL252 by ETL
• CGA Number: CGA 300
• Application: General Purpose
• Duty Rating: Heavy Duty
• Gas Service: Acetylene
• Control Type: Knob
• Body Diameter: 3.64 in
• Body Material: Brass
• Overall Depth: 4 in
• Overall Width: 6 in
• Gauge Diameter: 2 1/2 in
• Overall Height: 4 in
• Overall Length: 4-3/4"
• Regulator Series: Edge 2.0
• Outlet Connection: 9/16"-18 M LH
• Diaphragm Material: Stainless Steel
• Regulator Capacity: Premium Duty
• Compatible Gas Type: Acetylene
• Max. Inlet Pressure: 360 psi
• Inlet Connection Size: 0.965"-14
• Inlet Connection Type: NGO
• Regulator Application: General Purpose
• Regulator Supply Type: Cylinder
• Supply Pressure Gauge: 400 psi
• Inlet Thread Direction: Right Hand
• Outlet Connection Size: 9/16"-18
• Outlet Connection Type: UNF
• Delivery Pressure Range: 2 to 15 psi
• Inlet Connection Gender: Male
• Outlet Thread Direction: Left Hand
• Gauges Delivery Pressure: 30 psi
• Outlet Connection Gender: Male
• Outlet Pressure (Maximum): 15 psig
• Outlet Pressure (Minimum): 2 psig
• Maximum Gauge Outlet Pressure: 400 psig
• Model: ESS42-15-300, Acetylene
• CGA Inlet: 300
• CGA Outlet: 9/16 in. - 18 RH
• Height: 4 in. (101.6 mm)
• Length: 4 in. (101.6 mm)
• Width: 6 in. (152.4 mm)
• Regulator Type: Single Stage Regulator
• Workload: Heavy Duty, High Capacity
• Delivery Rate: 2 - 15 psig
• For Gas Type: Acetylene
