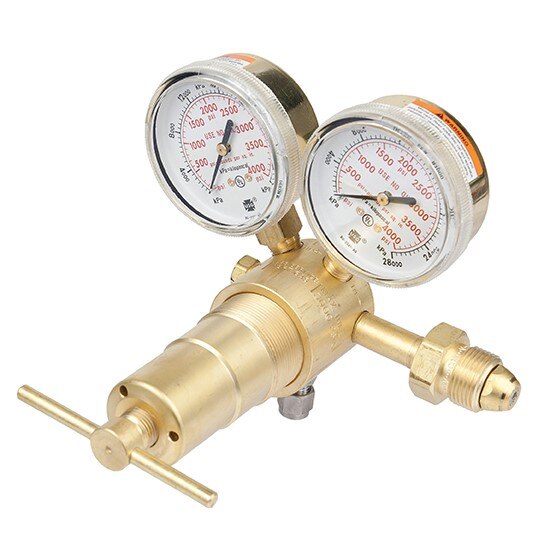

Victor 0781-1455 High Pressure Piston Regulator Npt

Product Description

The VICTOR 0781-1455 is a heavy-duty, high-pressure piston regulator built for demanding pressure vessel and dead-end testing applications. The machined brass body and housing cap provide durability under high-cycle use. A cartridge-type seat assembly with a PCTFE seat ensures consistent sealing performance at elevated pressures. A Delrin cap bushing allows smooth, precise delivery pressure adjustments. Qualified technicians and industrial service professionals working with compressed gas systems will find this regulator suited to high-demand bench and field testing scenarios where reliable pressure control is critical.

This regulator is designed for high-pressure service environments including pressure vessel testing and dead-end system testing. The 1/4 inch NPT inlet connection is standard for many compressed gas supply lines. The sintered bronze inlet filter protects internal components from particulate contamination. Models in the F and G range include external adjustable relief valves. Hydrogen-compatible models feature ventable relief valves; note that J Series models do not include this feature.

Key Features

• Machined brass body and housing cap for high-pressure durability
• Cartridge-type seat assembly with PCTFE seat for reliable sealing
• Piston-type actuation with brass construction
• Delrin cap bushing for smooth delivery pressure adjustment
• Sintered bronze inlet filter to protect internal components
• External adjustable relief valves available on F and G range models
• Delivery pressures up to 4500 PSIG on select models

Compatibility

Designed for use with compressed gas systems requiring high-pressure regulation up to 4500 PSIG; compatible with pressure vessel and dead-end testing setups using a 1/4 inch NPT inlet connection.

Installation Notes

Installation should be performed by a qualified technician familiar with high-pressure compressed gas systems. Depressurize and isolate the gas supply completely before connecting or removing the regulator. Use appropriate thread sealant rated for high-pressure gas service on all NPT connections. Follow applicable codes and the regulator manufacturer guidelines for torque and pressure testing after installation.

Technical Specifications

• Inlet Connection: 1/4 inch NPT
• Maximum Delivery Pressure: 4500 PSIG (select models)
• Body Material: Machined brass
• Seat Material: PCTFE
• Actuation Type: Piston
• Inlet Filter Material: Sintered bronze
• Gauge Size: 2.5 inches
• Length: 6.1 inches
• Width: 8.8 inches
• Height: 7.4 inches
• Weight: 3.75 pounds
• Sold As: Each

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0781-1455
