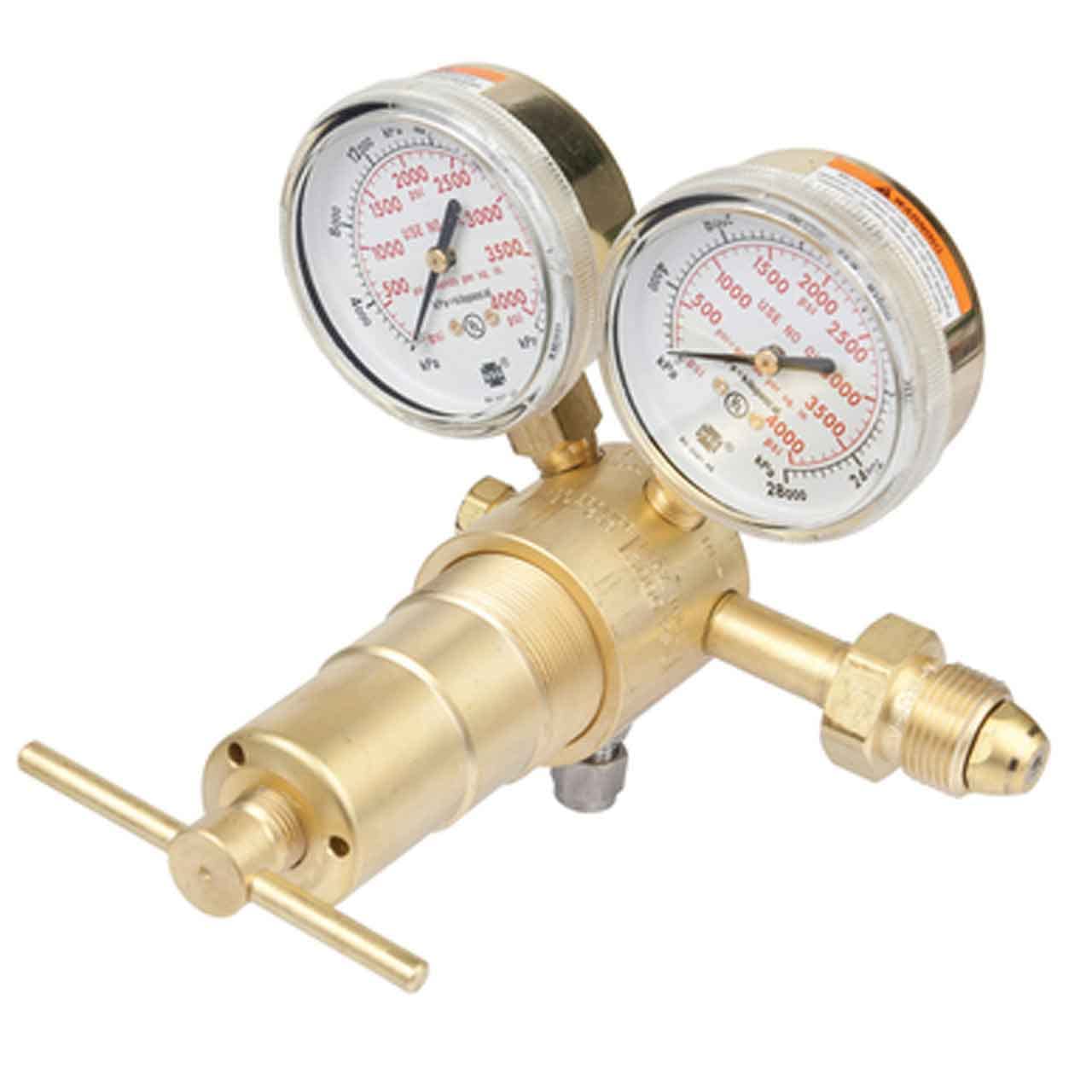

VICTOR 0781-1448 High Pressure Regulator

Product Description

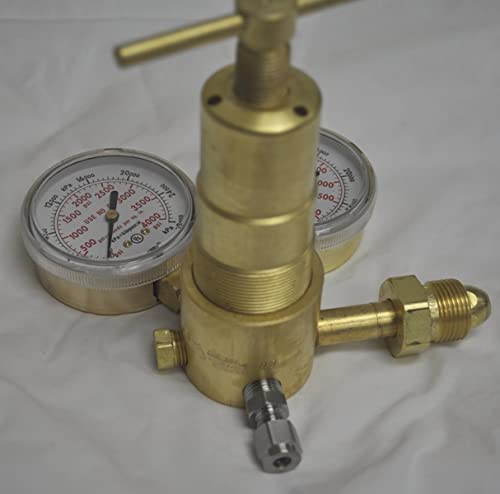

The VICTOR 0781-1448 SR4J-580 High Pressure Regulator is crafted for heavy-duty usage, specifically designed for efficient performance with larger cylinders. It is perfect for applications such as pressure vessel testing and dead-end testing, delivering pressures up to 4500 PSIG. The regulator features a machined brass body and a housing cap, ensuring durability in high-pressure environments.

• Designed for heavy-duty applications with larger cylinders
• Machined brass body with a housing cap
• 2.5-inch brass gauges and a cartridge-type seat assembly with PCTFE seat

Product Highlights

This high pressure regulator supports inert gas services, making it suitable for argon, helium, and nitrogen applications. It is designed for smooth adjustments with a Delrin cap bushing and includes a sintered bronze inlet filter to maintain gas purity.

Product Information

Standard Information

• Brand: VICTOR
• MPN: 0781-1448

Technical Specifications

• Body Material: Brass

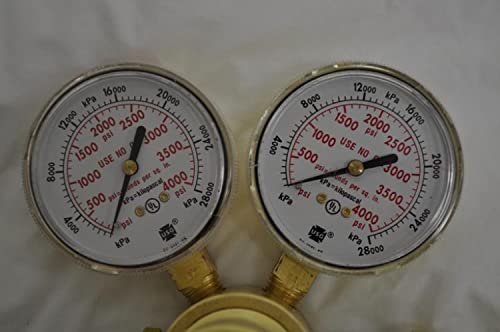

• Gauge Size: 2.5 inches
• Outlet Pressure Maximum: 3000 PSIG
• Delivery Pressure Range: 200 to 3000 PSIG
• CGA Number: CGA 580
• Control Type: T-Handle

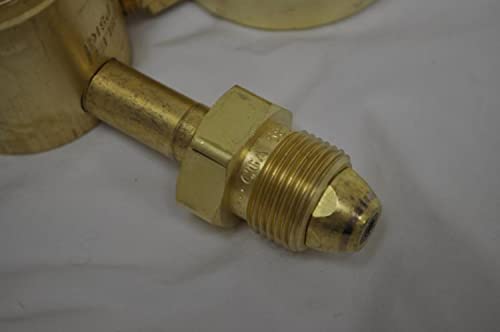

• Inlet Connection: NGO, Male, Right Hand
• Outlet Connection: 1/4 inches, Female, Swagelok
