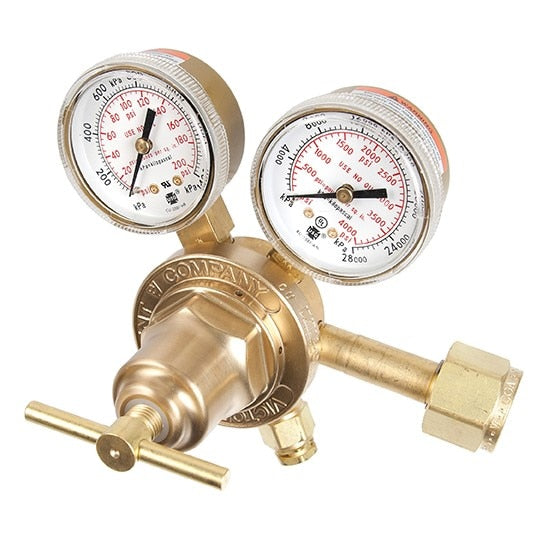

Victor 0781-0087 Regulator Medium-Duty Single Stage Acetylene Gas

Product Description

The Victor 0781-0087 is a medium capacity single stage acetylene regulator designed for dependable performance in welding applications. This regulator operates within a delivery pressure range of two to fifteen psig, suitable for various general-purpose applications.

• Inlet connection: CGA 510
• Crafted from durable forged brass
• Maximum inlet pressure of 3000 psig

Product Highlights

Features a robust construction and a reliable design for consistent gas delivery.

Product Information

Standard Information

• Manufacturer: ESAB
• Brand: Victor

Technical Specifications

• MPN: 0781-0087
• Item ID: VCT07810087
• Gas Type: Acetylene
• Number of Stages: Single Stage
• Body Material: Brass
• Diaphragm Material: Neoprene
• Inlet Connection Size: 0.825-14
• Outlet Connection Size: 9/16-18
• Inlet Pressure (Maximum): 3,000 psig
• Outlet Pressure (Maximum): 15 psig
• Delivery Pressure Range: 2 to 15 psi
• Gauge Size: 2 in
• Overall Depth: 4.25 in
• Delivery: 900 scfh
• Standards: Listed to UL252 by ETL
• Control Type: T-Handle
• Regulator Series: SR 250
• Regulator Capacity: Medium Duty
• Regulator Application: General Purpose
• Regulator Supply Type: Cylinder
• Supply Pressure Gauge: 3,000 psi
• Inlet Thread Direction: Left Hand
• Outlet Pressure (Minimum): 2 psig
• Country of Origin: Mexico
