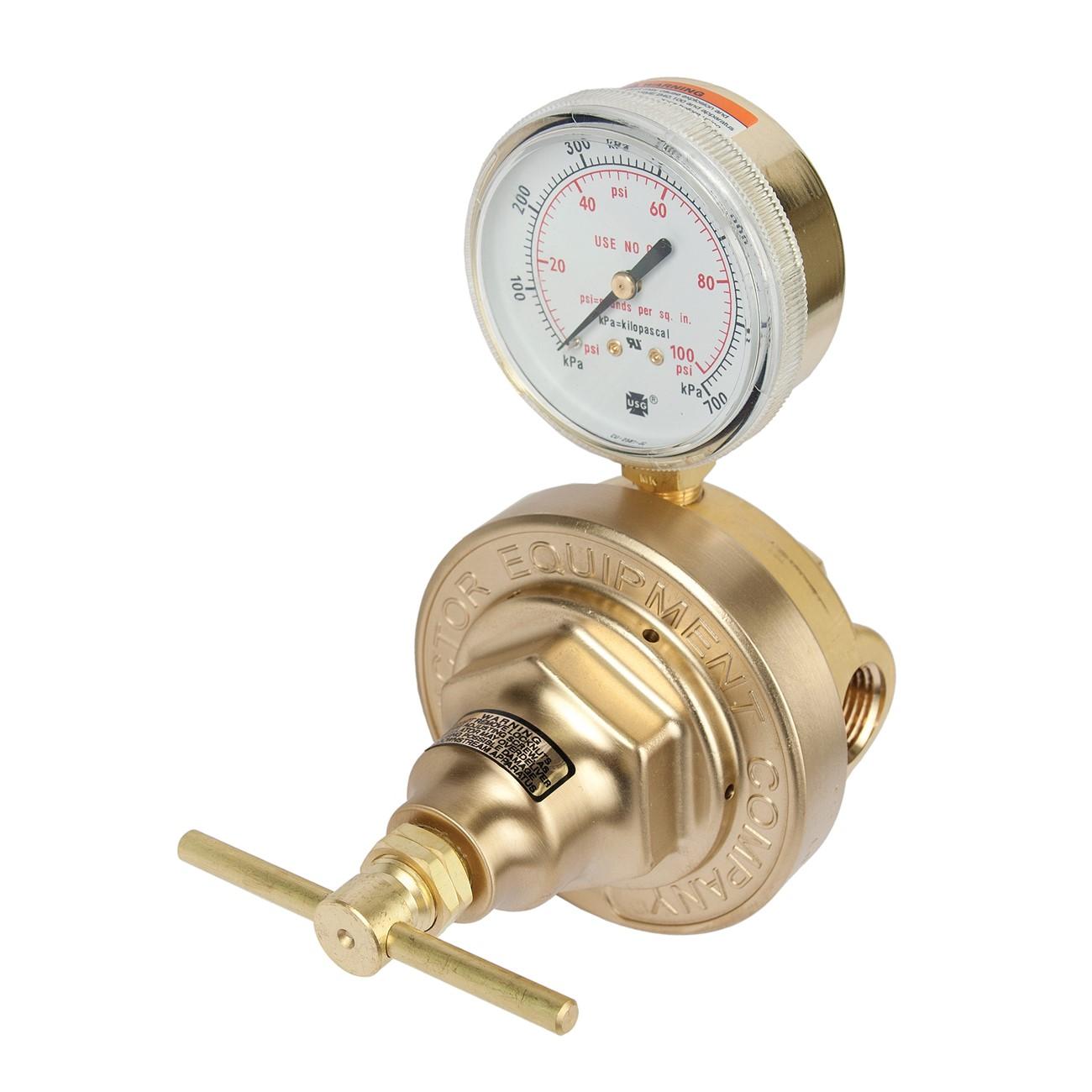

Victor 0780-1220 Regulator Line Extra Heavy-Duty Inert Gas

Product Description

The Victor 0780-1220 is a line regulator designed for heavy-duty use with inert gases. This regulator is part of the L 700 Series and is built to deliver a pressure range of four to eighty psig. It features a robust forged brass body and is equipped with a stem-type seat mechanism for enhanced durability. The regulator includes 3/4 NPT female inlet and outlet ports, allowing for easy integration into gas distribution systems with compatible inlets.

• Durable forged brass construction
• Pressure range of four to eighty psig
• Compatible with CGA-750 inlet connections

Product Highlights

This regulator is specifically designed for applications involving air, oxygen, inert gases, CO2, and N2O. It has a neoprene diaphragm rated for a maximum inlet pressure of 350 psig. However, it is not suitable for use on cylinders.

Product Information

Standard Information

• Manufacturer: ESAB
• Brand: Victor

Technical Specifications

• Weight: 5.75 lbs
• Length: 8.9 inches
• Width: 8.5 inches
• Height: 8.1 inches
• Min Quantity: 1
• UOM: Each
• Gas Type: Inert Gas
• Inlet Connection: CGA-750
• Outlet Type: 3/4 Inch Female NPT
