Victor 0381-1408 Cutting Torch 90 Degree Head Angle

Product Description

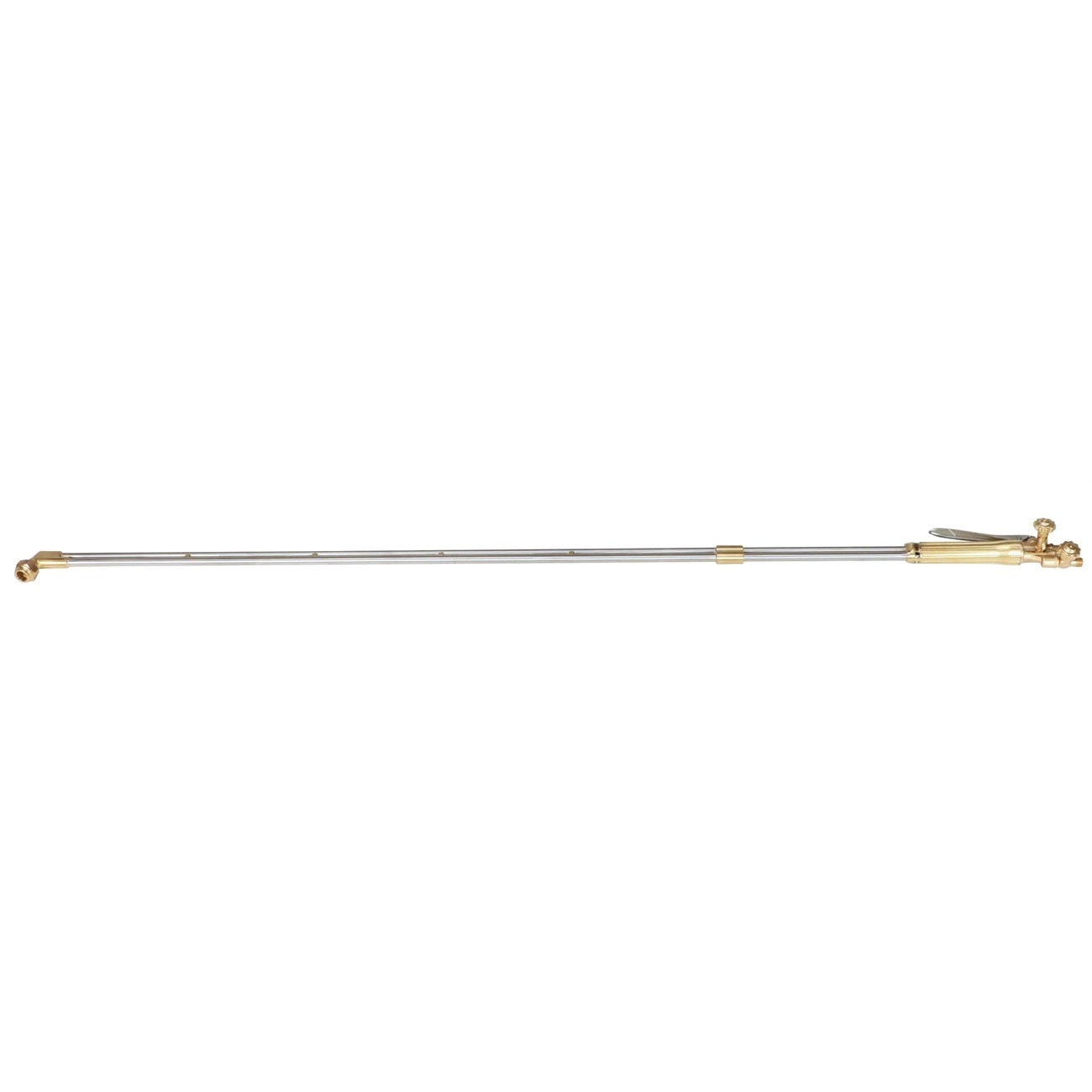

The VICTOR 0381-1408 is a heavy-duty straight cutting torch from the HC 1200C Series, featuring a 90-degree head angle and a 48-inch body length. It is built for high-capacity thermal cutting work, with a rated cutting capacity of up to 18 inches of steel. The torch accepts any fuel gas operating at 2 PSIG or above, giving field technicians flexibility across jobsite conditions. A universal mixer and built-in reverse flow check valves are standard, supporting both safety and consistent flame performance. This torch is intended for professional use by welding and cutting tradespeople in industrial environments.

This torch is suited for heavy industrial applications including scrapping, demolition, and structural steel cutting. The 48-inch length keeps the operator at a safe working distance from the workpiece and is practical in confined or overhead cutting scenarios. The 9/16-inch 18-thread hose connections are standard trade fittings. The torch uses Series 1 cutting tips, which are widely available and compatible with a range of cutting conditions.

Key Features

• 90-degree head angle for heavy industrial and positional cutting work
• Cutting capacity up to 18 inches of steel
• Compatible with any fuel gas at 2 PSIG and above, including acetylene, propane, and natural gas
• Universal mixer supports multi-fuel flexibility
• Reverse flow check valves built in for added safety
• 9/16-inch 18-thread hose connections
• Accepts Series 1 cutting tips

Compatibility

Designed for use with VICTOR HC 1200C Series cutting tips (Series 1). Compatible with any fuel gas supply operating at 2 PSIG or above. Hose connections are 9/16-inch 18 thread, standard for this torch class.

Installation Notes

Installation and setup should be performed by a qualified welding and cutting professional familiar with compressed gas equipment and applicable safety codes. Shut off all gas supply valves and relieve line pressure before connecting or disconnecting the torch. Inspect hose fittings and check valves for damage or contamination before use. Never use oil or grease on oxygen-side fittings, and verify leak-free connections with an approved leak-detection solution before igniting.

Technical Specifications

• Series: HC 1200C
• Head Angle: 90 degrees
• Cutting Capacity: Up to 18 inches
• Minimum Fuel Gas Pressure: 2 PSIG
• Hose Connection: 9/16 inches 18 thread
• Cutting Tip Series: Series 1
• Body Length: 48 inches
• Weight: 6.7 pounds
• Height (packaged): 55 inches
• Width (packaged): 4 inches
• Length (packaged): 4 inches
• Sold As: Each

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0381-1408
