Victor 0333-0369 Cutting Tip Size 5 Propane Natural Gas Brass

Product Description

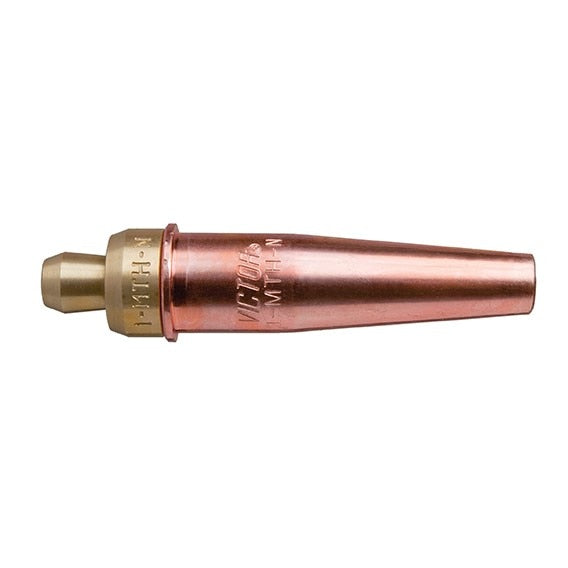

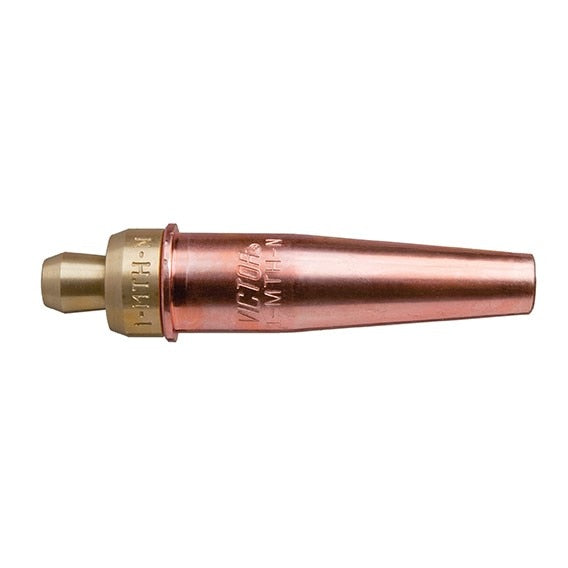

The VICTOR 0333-0369 is a Size 5 LP high speed machine cutting tip designed for Type MTHN torch applications using propane or natural gas fuel. Built from brass, this tip delivers consistent preheat and cutting oxygen delivery for high-throughput automated or semi-automated cutting operations. It handles metal thicknesses up to 10 inches and operates with cutting oxygen pressure in the 85-95 psig range and preheat oxygen pressure of 30-35 psig. Fuel gas pressure requirement starts at 8 oz psig and above. This tip is installed by welding and cutting professionals in production and fabrication environments.

This cutting tip is suited for industrial and general fabrication, structural steel fabrication, repair and maintenance, and light fabrication work. It is configured for machine cutting applications where a stable, high-speed cut is required on heavy plate or structural steel. The Type MTHN designation confirms its role in mechanized cutting setups rather than hand-torch use. Total oxygen consumption runs 670-720 cfh, and total fuel gas consumption ranges from 12-65 cfh depending on operating parameters.

Key Features

• Rated for metal thickness up to 10 inches
• Cutting oxygen pressure: 85-95 psig for clean, consistent kerfs
• Preheat oxygen pressure: 30-35 psig
• Compatible with propane and natural gas fuel gases
• Brass construction for durability and thermal conductivity
• Type MTHN design for high speed machine cutting applications

Compatibility

Designed as an OEM-style replacement cutting tip for VICTOR Type MTHN machine torch setups using propane or natural gas fuel.

Installation Notes

Cutting tips of this type are installed by qualified welding and cutting professionals. Always shut off all gas supplies and relieve line pressure before removing or installing a cutting tip. Use the appropriate tip wrench to seat the tip snugly without overtightening, which can damage the seating surface. Follow applicable facility safety codes and the torch manufacturer's guidelines for gas pressure setup before initiating a cut.

Technical Specifications

• Tip Size: 5
• Fuel Gas Type: Propane, Natural Gas
• Material: Brass
• Application Type: LP High Speed Machine Cutting, Type MTHN
• Maximum Metal Thickness: 10 inches
• Cutting Oxygen Pressure: 85-95 psig
• Preheat Oxygen Pressure: 30-35 psig
• Fuel Gas Pressure: 8 oz psig minimum
• Total Oxygen Consumption: 670-720 cfh
• Total Preheat Oxygen Consumption: 23-140 cfh
• Total Fuel Gas Consumption: 12-65 cfh
• Length: 3.2 inches
• Width: 0.8 inches
• Height: 0.7 inches
• Weight: 0.18 pounds
• UPC: 716352035330

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0333-0369
