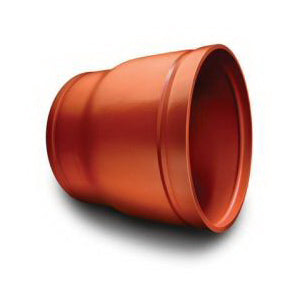

Victaulic WH08050P00 W50 Concentric Reducer, 16 x 8 in, AGS Grooved

Product Description

Victaulic offers the WH08050P00 W50 Concentric Reducer, a fitting designed for seamless transitions in piping systems. With a nominal size of sixteen inches by eight inches, this ductile iron reducer is suitable for various applications. It features AGS grooves that facilitate quick installation without the need for field preparation. The design encourages easy alignment, allowing for greater separation of pipe ends.

• Durable ductile iron construction
• Pressure rated to three hundred fifty psi
• Compatible with Victaulic W07 and W77 AGS couplings

Product Highlights

The WH08050P00 is part of the AGS (Advanced Groove System) series, known for its reliable performance and easy handling.

Product Information

Standard Information

• Manufacturer: Victaulic
• Part Number: WH08050P00

Technical Specifications

• Nominal Size: sixteen inches by eight inches
• Material: ductile iron
• Length: fourteen inches
• End Style: AGS grooved
• Pressure Rating: three hundred fifty psi
• Series: W50
• Finish: orange enamel
