Victaulic W240077PE1 FireLock™ Style W77 24 in. Grooved Flexible Coupling

Product Description

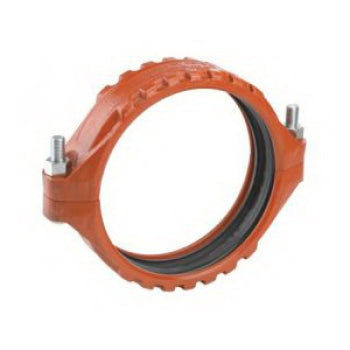

The Victaulic W240077PE1 FireLock™ Style W77 is a 24 in. grooved flexible coupling. Style W77 provides limited linear angular movement to accommodate thermal pipe growth, vibration attenuation, and seismic considerations. It features a unique wedge-shaped key profile that increases allowable pipe end separation for easier assembly. Working pressures are based on standard wall carbon steel pipe.

• Unique wedge-shaped key profile increases allowable pipe end separation, resulting in easier assembly
• Provides limited linear and angular pipe movement at the pipe joint that can be used to compensate for thermal growth of piping systems, vibration attenuation, seismic, differential settlement and other applications requiring flexibility
• Cross-ribbed, two piece housing construction

Product Highlights

The Victaulic W240077PE1 coupling is designed for flexibility in piping systems, accommodating movement and simplifying installation.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: W240077PE1

Technical Specifications

• Category: Coupling
• Temperature Range: -30 to 230 Deg F
• Connection Type: Grooved
• Material: Ductile Iron, Rubber
• Brand: Victaulic
• End Style: Grooved
• Finish: Orange Enamel
• Fitting/Connector Type: Coupling
• Length: 31-1/4 In
• Nominal Size: 24 In
• Pressure Rating: 350 psi
• Series: W77
• Type: Flexible
• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-536 Grade 65-45-12
• Collection: FireLock™ Style W77
• End Connection 1: Grooved
• End Connection 2: Grooved
• End Connections: Grooved
• FM Approved: Yes
• Fitting Size 1: 24 in
• Fitting Size 2: 24 in
• Fitting Sizes: 24 in
• Fitting Type: Coupling, Straight
• Material Type: EPDM
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Proposition 65: WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
• UL Listed: Yes
• Width: 27-1/2 in
• Sub Brand: AGS®
• Item Name: Flexible Coupling With Grade E Gasket
• Series/Model: Style W77
• Material Standard: ASTM A536 Grade 65-45-12
• Finish/Color: Orange Enamel Painted
• Outside Diameter: 24 IN
• Maximum Pressure: 350 PSI
• Other Physical Dimension: 4-1/2 IN Width, (2) 1-1/8 X 5-1/2 IN Bolt/Nut, 0.13 - 0.31 IN Allowable Pipe End Separation, 26.88 IN Body Outside Diameter
• Domestic/Import: Import
• Additional Specifications: End Load: 163990 LB Maximum
