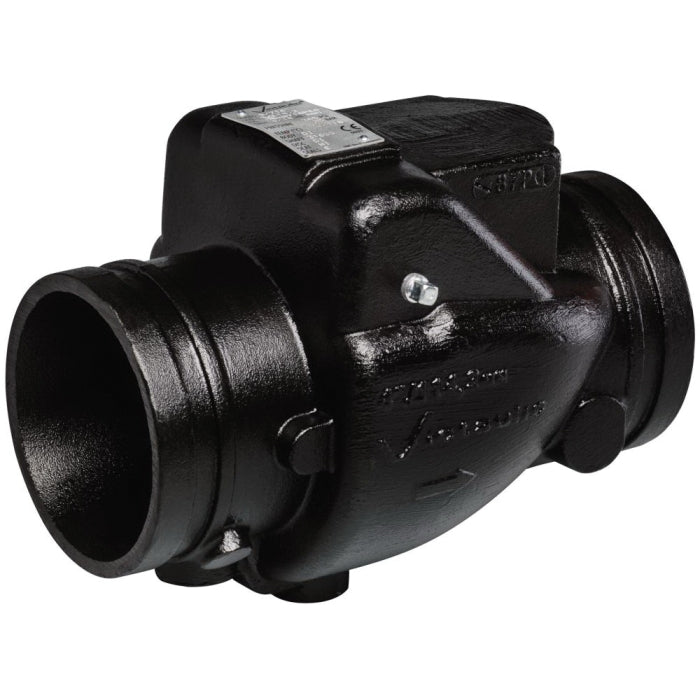

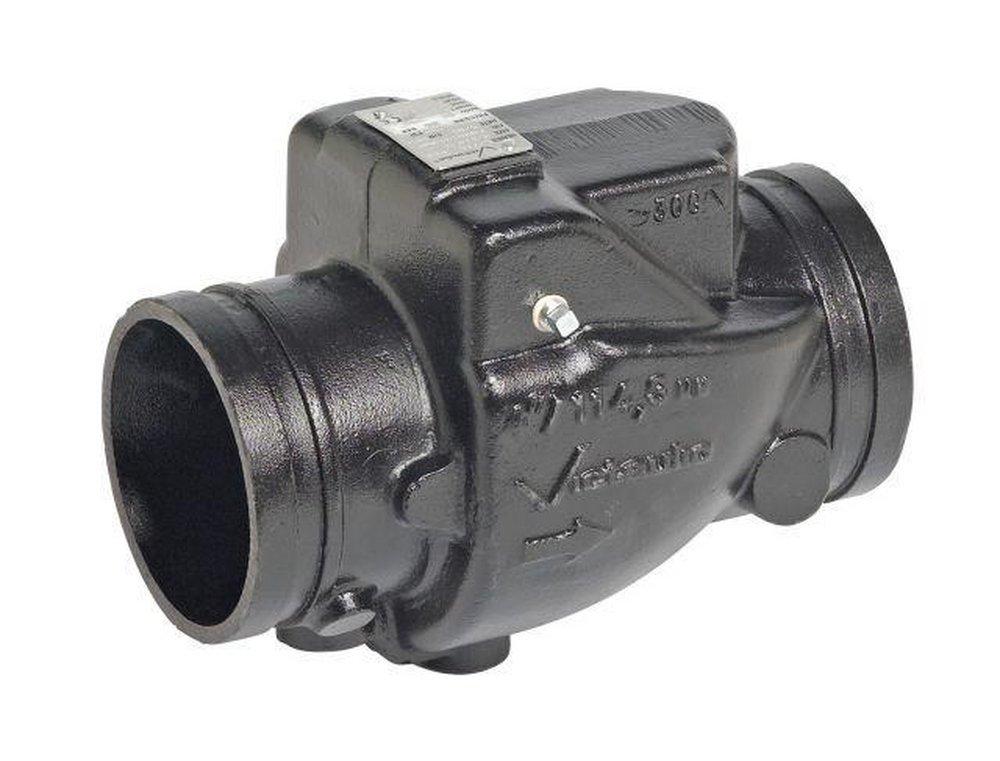

Victaulic V080716PE0 FireLock Style 716 8 in Ductile Iron Grooved Check Valve

Product Description

The Victaulic V080716PE0 is a check valve designed for fire protection systems. This eight-inch valve is made from ductile iron and has a grooved design. It features male NPT inlet and female NPT outlet for easy installation. This check valve provides reliable protection against backflow and excessive pressure build-up.

• Prevents backflow effectively
• 1-disc mechanism includes spring assist for improved performance
• Installation options: vertical (flow upwards) or horizontal

Product Highlights

This check valve efficiently prevents backflow and allows for adjustable pressure settings, making it versatile for various applications.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: V080716PE0

Technical Specifications

• Color: Black
• Connection Size: 8 inches
• Connection Type: NPT
• Dimension: 14 inches L
• Disc Material: Ductile Iron
• Finish: Painted
• Flow Coefficient: 1800 Cv
• Material Specifications: ASTM A536, Grade 65-45-12, ASTM B733
• Pressure Rating: 365 psi
• Seat Material: Ductile Iron
• Model: 716
