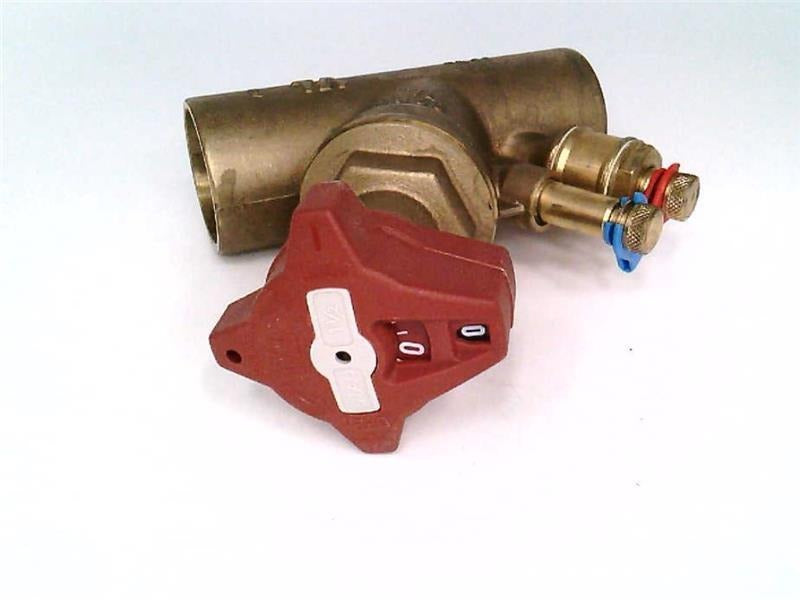

Victaulic V010786HBV Series 786H Solder hydronic pressure regulating valve (1 in.)

Product Description

Victaulic V010786HBV is a Series 786H 1 in. solder hydronic pressure regulating and balancing valve constructed of brass. It is a Y-pattern globe valve intended for hydronic and HVAC balancing, rated for temperatures from -4°F (-20°C) to 250°F (120°C) and pressures up to 300 psi (2068 kPa / 21 bar). The valve uses a digital hand wheel with four turns (1440°) to open and includes a memory stop. Flow range 3.9–10 gpm; Cv 9.93.

• Y-pattern globe balancing/pressure regulating valve, nominal size 1 in., solder connection
• Brass construction; temperature range -4°F to 250°F (-20°C to 120°C); pressure rating 300 psi (2068 kPa / 21 bar)
• Digital hand wheel actuation with four turns to open (1440°) and memory stop; flow range 3.9–10 gpm, Cv 9.93

Product Highlights

1 in. brass Y-pattern hydronic balancing valve with solder connection, digital 4-turn hand wheel and memory stop; 300 psi, -4°F to 250°F, Cv 9.93.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: V010786HBV
• Country of Origin: Domestic
