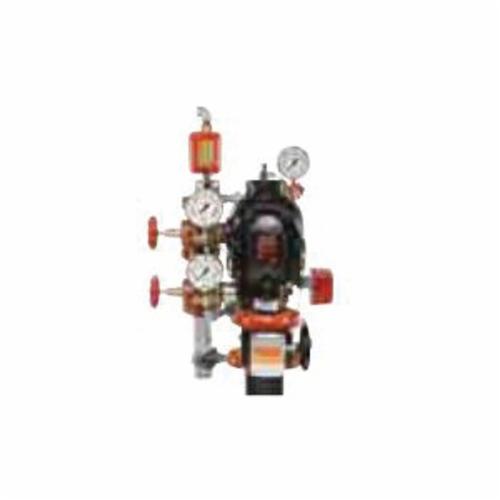

Victaulic S030768405 VICTAULIC FireLock NXT™ 768 Dry System Check Valve

Product Description

The VICTAULIC FireLock NXT™ 768 S030768405 is a quick riser dry system check valve designed for fire protection systems. This valve features a ductile iron body with a peroxide-cured EPDM seal. It has grooved end connections that make installation straightforward.

• Nominal size: three inches
• Maximum working pressure of three hundred PSI; tested to six hundred PSI
• Meets industry standards including C/US UL Listed, FM Approved, and CE Certified

Product Highlights

Product Information

Standard Information

• Sub Brand: FireLock NXT™
• Type: Quick Riser

Technical Specifications

• Series/Model: Series 768
• Connection Type: Grooved End
• Pressure Rating: Three hundred PSI working, six hundred PSI test
• Body Material: Ductile Iron
• Seal Material: Peroxide Cured EPDM
• Material Standard: ASTM A536/A395 Grade 65-45-12/65-45-15
• Flow Coefficient (Cv): 200
• Width: Seventeen and a half inches
• Height: Forty-four and a quarter inches
