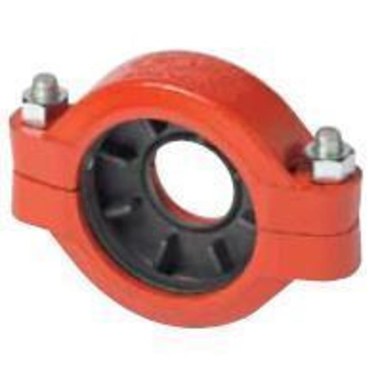

Victaulic LE16750PE0 Orange Enamel Ductile Iron Grooved Reducing Coupling 750 5 x 4 in

Product Description

The Victaulic LE16750PE0 is a grooved reducing coupling designed for plumbing and HVAC applications. This product eliminates the need for two separate couplings, simplifying the installation process. It is compatible with both OGS roll grooved and cut grooved pipes, valves, and fittings.

• Permits direct reduction on a piping run.
• Features a gasket made of grade E EPDM.
• Meets mechanical property requirements for bolts and nuts.

Product Highlights

This coupling is made from ductile iron with an orange enamel finish, offering durability and reliability in various applications.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI750.5.4

Technical Specifications

• Connection Size: 5 x 4 in
• Material: Ductile Iron
• Length: 10.7 in
• Finish: Orange Enamel
• Pressure Rating: 350 psi
• Temperature Rating: -30 to 230 deg F
• Maximum End Load: 5565 lb
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
