Product Description

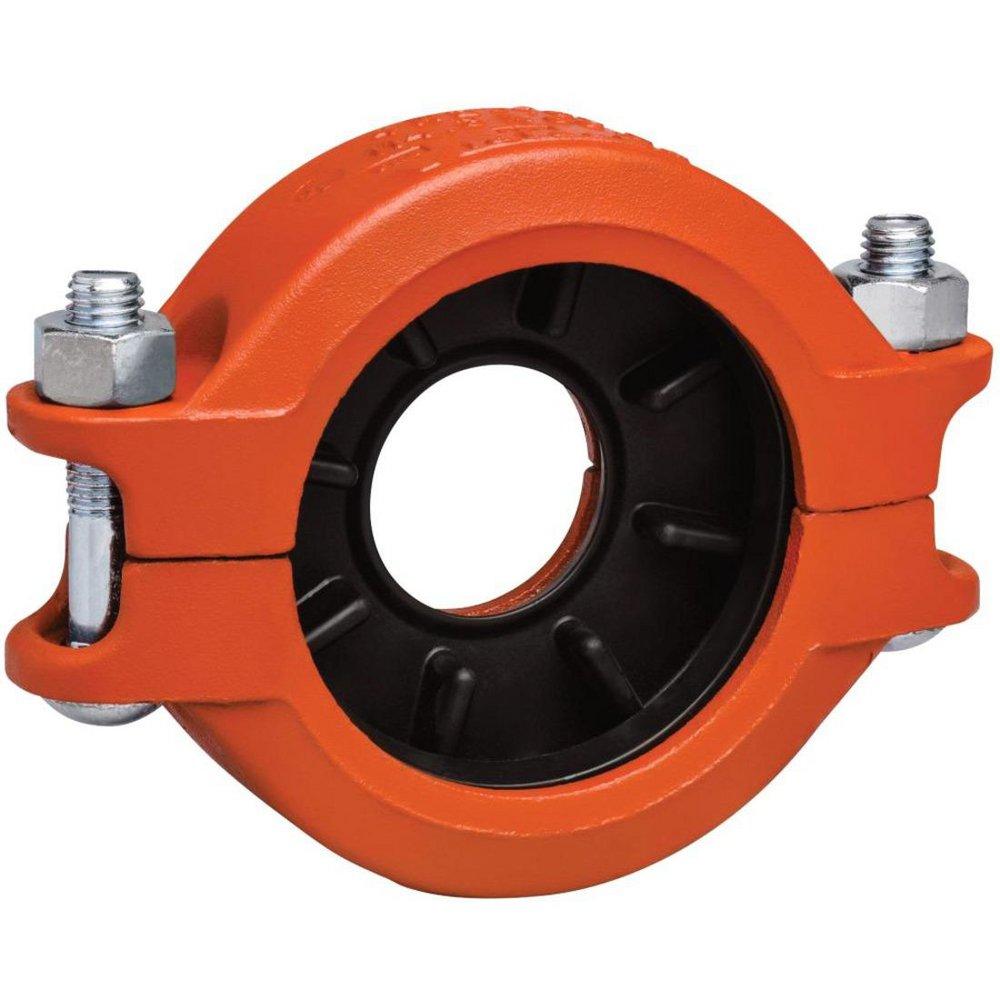

The Victaulic LC07750PE0 FireLock Style 750 is a reducing coupling designed for use in piping systems. The coupling facilitates the connection between pipes of different diameters. It is made from ductile iron and features an orange enamel finish for durability and resistance.
- Permits direct reduction on piping runs
- Replaces two couplings and a reducing fitting
- Meets ASTM A536 standards for quality
Product Highlights
This coupling is suitable for connecting pipes, valves, and fittings in various systems. Its design allows for pressure ratings of up to 500 psi and is compatible with both roll grooved and cut grooved pipes.
Product Information
Standard Information
-
Brand: Victaulic
-
MPN: LC07750PE0
Technical Specifications
-
Connection Size: 2-1/2 inches x 2 inches
-
Material: Ductile Iron
-
Finish: Orange Enamel
-
Pressure Rating: 500 psi
-
Temperature Rating: -30 to 230 degrees Fahrenheit
-
Maximum End Load: 2215 lb
-
Gasket Type: Grade E EPDM
-
Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
