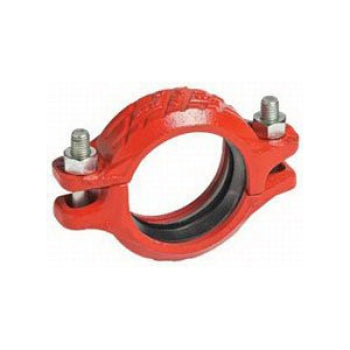

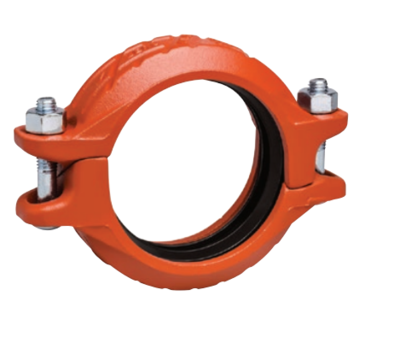

Victaulic L120007PE0 Ductile Iron Grooved Rigid Coupling 12 In

Product Description

The Victaulic L120007PE0 is a ductile iron grooved rigid coupling designed for use in various piping applications. This coupling is engineered to accommodate pressures from full vacuum up to seven hundred fifty psi. It features an angled bolt pad that enhances rigidity and a grade E EPDM gasket for reliable sealing.

• Accommodates high pressures and vacuum conditions.
• Meets ASME B31.1 and NFPA 13 standards.
• Designed for roll grooved and cut grooved pipes.

Product Highlights

This coupling is ideal for joining pipe, valves, fittings, and accessories in piping systems.

Product Information

Standard Information

• Manufacturer: Victaulic
• Brand: Victaulic

Technical Specifications

• Connection Size: 12 in
• Material: Ductile Iron
• Finish: Orange Enamel
• Length: 18.8 in
• Maximum End Load: 51000 lb
• Pressure Rating: 400 psi
• Outside Diameter: 12-3/4 in
• Temperature Rating: -30 to 230 deg F
• Model: 07
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
• Applications: For use with joins OGS roll grooved pipe, cut grooved pipe, valves, and fittings
